D2-32TD1 | Automation Direct 12-24VDC Output Module
D2-32TD1 | Automation Direct 12-24VDC Output Module

D2-32TD1 | Automation Direct 12-24VDC Output Module

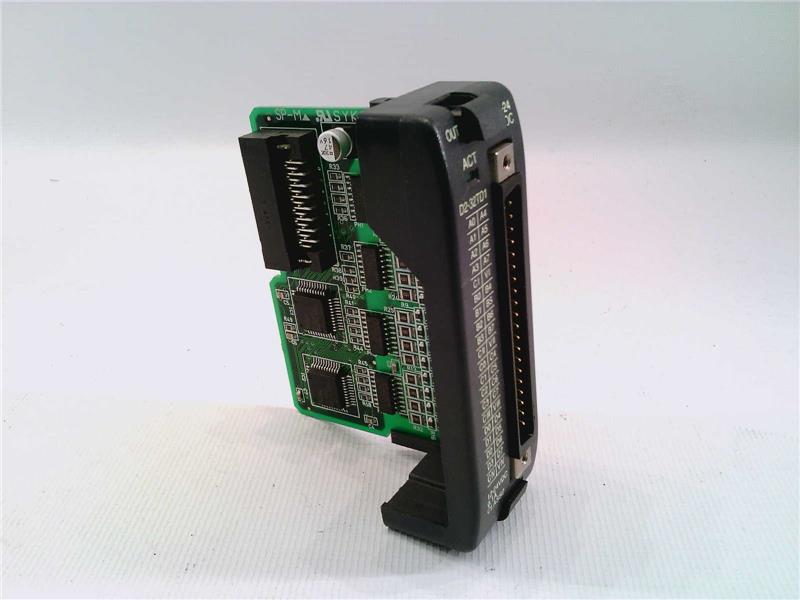

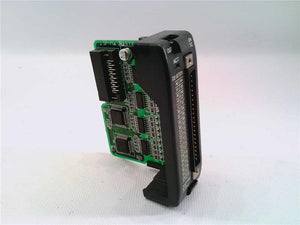

Part #: D2-32TD1 Manufactured by: Automation Direct
Regular price
$97.00
Sale price
$97.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The D2-32TD1 is a 12-24VDC discrete output module by Automation Direct, designed for the DL205 series PLCs. It provides 32...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: D2-32TD1
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Automation Direct
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
D2-32TD1 | Automation Direct 12-24VDC Output Module
    D2-32TD1 | Automation Direct 12-24VDC Output Module
D2-32TD1 | Automation Direct 12-24VDC Output Module

Product Description P/N: D2-32TD1

Description / Specifications

Description


The D2-32TD1 is a 12-24VDC output module by Automation Direct. It provides 32 discrete outputs for use in industrial control systems. The module is designed for sourcing output configurations and supports direct current (DC) operation within the specified voltage range. It is suitable for controlling various field devices in automation applications and integrates into PLC systems for efficient process control.



Technical Specifications



Part #

D2-32TD1

Category

PLCs/Machine Control

Subcategory

VDC Logic I/O Module

Item

Output Module

I/O Module Type

Discrete

Series

DL205

Number of Output Points

32

Nominal Output Voltage

12-24 VDC

Discrete Output Type

Sinking

Number of Isolated Output Commons

4

Number of Points per Common

8

Load Current

0.1A/point, 3.2A/module

Fuse Type

User-supplied external fuse

Requires

ZIPLink pre-wired cable





Information About D2-32TD1

The D2-32TD1 is a 32-point discrete output module from Automation Direct, specifically designed for integration into the DL205 series of PLC systems. This module is categorized under PLCs/Machine Control and falls within the VDC Logic I/O Module subcategory. As an output module, it is engineered to provide reliable and precise control of field devices in industrial automation environments, supporting the efficient management of multiple processes and operations through programmable logic controllers.

The D2-32TD1 operates with a nominal output voltage of 12-24 VDC, making it suitable for a wide range of industrial applications that require direct current (DC) control. Its discrete output type is sinking, which means that the module allows current to flow from the load to the module, making it compatible with sourcing devices in industrial control setups. This configuration is widely used in environments where the controlled devices or loads need to source current, such as in solenoids, relays, and other DC-powered equipment.

One of the primary features of the D2-32TD1 is its 32 discrete output points. These output points provide a scalable solution for controlling multiple devices from a single module, improving system efficiency and reducing the need for additional hardware. The module is designed with four isolated output commons, each controlling eight output points. This isolation between commons enhances system reliability and safety, as it minimizes the risk of electrical interference or cross-talk between different groups of outputs. The isolation also simplifies wiring and ensures that each group of output points can be independently managed, which is particularly useful in complex industrial control systems.

The load current for each output point is rated at 0.1A, with a total load current of 3.2A per module. This capacity allows the D2-32TD1 to handle a variety of field devices that require moderate current for operation, ensuring consistent performance across all output points. The module's current rating makes it suitable for controlling a diverse range of industrial devices, including actuators, lights, indicators, and other components that are commonly found in automated systems.

In terms of protection, the D2-32TD1 requires a user-supplied external fuse. This fuse helps protect the module and the connected devices from overcurrent or short-circuit conditions. The use of external fuses allows users to customize the level of protection based on the specific requirements of their application, ensuring that both the module and the connected loads remain safeguarded during operation. This approach also simplifies maintenance, as fuses can be easily replaced without affecting the module's overall functionality.

To simplify installation and reduce wiring complexity, the D2-32TD1 is designed to work in conjunction with ZIPLink pre-wired cables. These pre-wired cables significantly reduce the time required for system setup by eliminating the need for manual wiring of individual connections. The ZIPLink system provides a plug-and-play solution, allowing for faster integration of the module into the overall control system while also reducing the risk of wiring errors. This feature is particularly beneficial in environments where downtime must be minimized, as it streamlines the installation process and ensures reliable connections.

The D2-32TD1 is fully compatible with the DL205 series, a modular PLC platform known for its versatility and ease of use in industrial automation. The modular design of the DL205 series allows for flexible system expansion and configuration, enabling users to add or replace modules as needed without significant modifications to the overall system. The D2-32TD1 seamlessly integrates into this architecture, providing a reliable output solution that can be scaled to meet the specific needs of the application.

In terms of operational performance, the D2-32TD1 is built to withstand the harsh conditions typically encountered in industrial environments. Its rugged construction ensures long-term durability and reliable operation in settings that may involve temperature fluctuations, electrical noise, and mechanical vibrations. The module's design prioritizes reliability, ensuring that it can handle continuous operation in demanding applications without failure.

In summary, the D2-32TD1 32-point discrete output module is an essential component for industrial control systems that require reliable, scalable, and precise control of DC-powered field devices. With its nominal output voltage of 12-24 VDC, sinking output configuration, four isolated commons, and compatibility with ZIPLink pre-wired cables, the module provides a versatile solution for controlling multiple devices in industrial automation environments. Its ability to integrate seamlessly into the DL205 series and its rugged design make it well-suited for a variety of applications, including manufacturing, process control, and automation systems. The D2-32TD1 ensures efficient and reliable control, making it an ideal choice for users looking to enhance their PLC systems with a high-quality output module.
