D222N | Schneider Electric Safety Switch, General Duty
- Regular price
- $125.00
- Sale price
- $125.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: D222N
Description

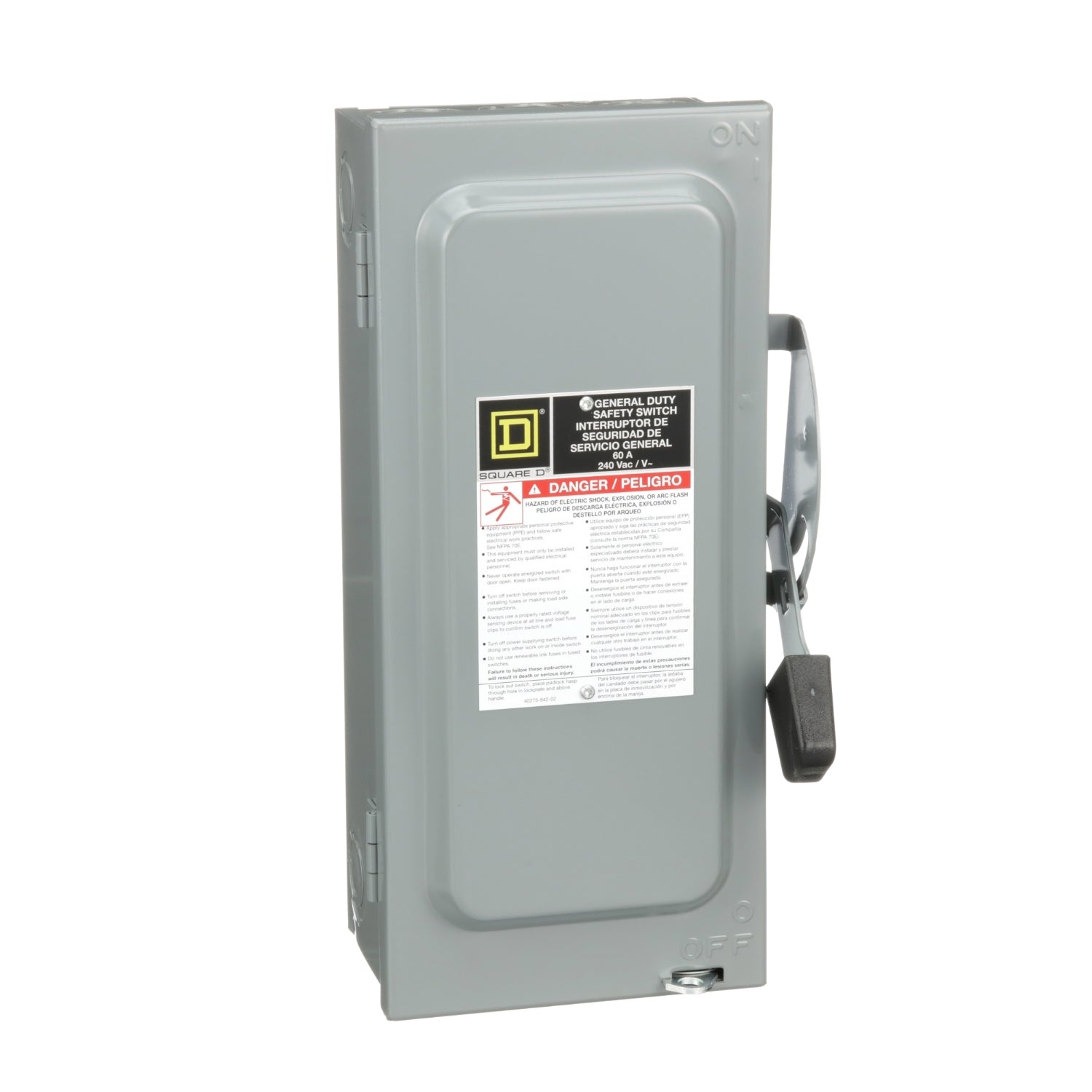

The D222N Safety Switch is categorized as General Duty and Fusible, designed for applications where durability and cost-effectiveness are paramount concerns. It is suitable for residential and commercial use, particularly for loads such as lighting, air conditioning, and appliances. This single throw safety switch is equipped with two poles and rated at 60A, with a voltage rating of 240VAC.
Technical Specifications
|
Part # |
D222N |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Product |
Single Throw Safety Switch |
|
Duty Rating |
General duty |
|
Device Application |
Residential |
|
Disconnect Type |
Fusible disconnect switch |
|
Factory Installed Neutral |
Neutral (factory installed) |
|
Phase |
1 phase |
|
Number of Poles |
2 |
|
Current Rating |
60 A |
|
Voltage Rating |
240 V AC |
|
Enclosure Rating NEMA |
NEMA 1 |
|
Short Circuit Current Rating |
100 kA maximum depending on fuse H, K or R |
|
Fuse type |
H, K or R |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring configuration |
3-wire |
|
Depth |
4.87 in (123.70 mm) |
|
Width |
7.45 in (189.23 mm) |
|
Height |
14.88 in (377.95 mm) |
|
Net Weight |
8.82 lb(US) (4 kg) |
|
Category |
US1DE1A00006 |
|
Discount Schedule |
DE1A |
|
GTIN |
785901460626 |
|
Returnability |
Yes |
|
Country of origin |
US |
Information About D222N
General duty safety switches, exemplified by the D222N model, are engineered to meet the demands of both residential and commercial environments, prioritizing durability and cost-effectiveness. These switches find application in various scenarios, including lighting, air conditioning, and appliances. They can also serve as service equipment when equipped with a factory-installed neutral assembly or a field-installed service grounding kit.
The D222N safety switch, specifically, is a single throw switch featuring two poles, rated at 60A with a voltage rating of 240VAC. It operates as a fusible disconnect, offering reliable protection in case of electrical faults. Enclosed within a NEMA 1 enclosure, this switch is designed for surface mounting, ensuring ease of installation.
One of the key features of the D222N safety switch is its acceptance of H, K, or R fuses, providing flexibility and compatibility with different fuse types. Additionally, it comes equipped with lugs suitable for use with both aluminum and copper conductors, further enhancing its versatility.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
