D3-08B-1 | Automation Direct 8 Slot I/O Base DL305 DirectLOGIC 305

Description

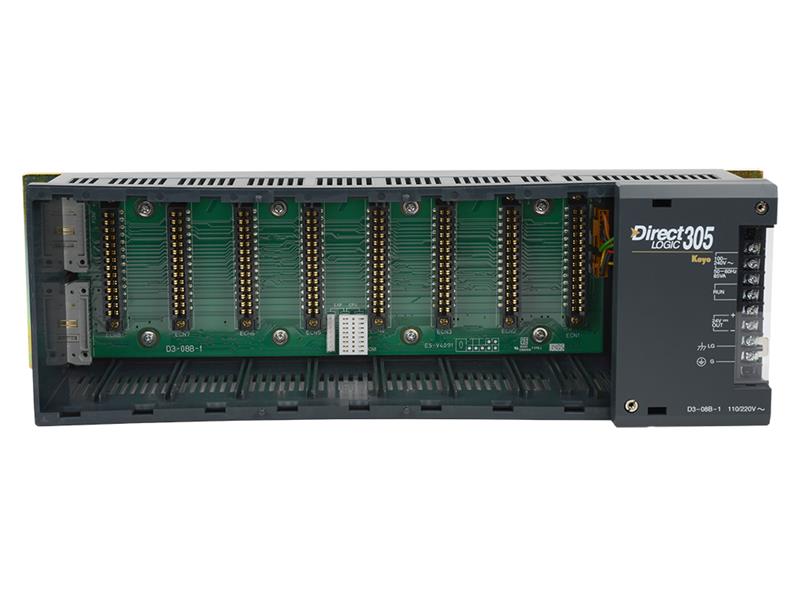

The D3-08B-1 is an Automation Direct 8-Slot I/O Base designed for the DL305 DirectLOGIC 305 series. It accommodates up to eight I/O modules, providing a robust foundation for expanding and integrating automation systems. This base ensures reliable module connectivity, supporting the scalability and flexibility of industrial control applications.

Technical Specifications

Information About D3-08B-1

The D3-08B-1 from Automation Direct is an essential component within the DirectLOGIC 305 series, specifically designed to serve as an 8 Slot I/O Base Module for a variety of industrial automation applications. As a versatile and robust platform, the D3-08B-1 provides a foundational structure for integrating multiple input/output modules, allowing users to create highly customized control systems tailored to specific operational needs.

This I/O Base Module features eight slots, providing ample capacity to accommodate a range of DL305 series I/O modules. The flexibility to support all DL305 series modules ensures that the D3-08B-1 can be utilized in a wide array of configurations, making it a vital component for complex automation systems that require diverse inputs and outputs. Whether the application involves managing digital signals, analog inputs, or specialized communication modules, the D3-08B-1 serves as a reliable backbone that can adapt to the evolving requirements of modern industrial environments.

One of the standout features of the D3-08B-1 is its compatibility with several CPUs, including the D3-330, D3-340, and D3-350 models. This compatibility allows users to pair the I/O base with CPUs of varying capabilities, enabling the construction of systems that can range from simple to highly sophisticated. The ability to select the appropriate CPU based on the complexity and scale of the application offers unparalleled flexibility in system design.

The D3-08B-1 is built with a backplane current capacity of 3.0 A at 5 VDC, ensuring that it can effectively power all connected modules without the need for external power supplies. This high current capacity is particularly beneficial in systems with multiple I/O modules, where consistent and reliable power distribution is critical to maintaining system performance and preventing downtime.

Designed to withstand the rigors of industrial environments, the D3-08B-1 operates within a temperature range of 0°C to 60°C (32°F to 140°F), making it suitable for deployment in a variety of settings, from climate-controlled factories to more challenging industrial spaces. Additionally, the module is rated for a storage temperature range of -20°C to 70°C (-4°F to 158°F), ensuring that it remains functional and reliable even after extended periods of non-operation in potentially adverse conditions.

Humidity tolerance is another key aspect of the D3-08B-1's design, with the module being capable of operating in environments with humidity levels ranging from 5% to 95% non-condensing. This wide humidity range makes the module ideal for use in facilities where moisture levels may fluctuate, such as in manufacturing plants with varying production processes that may introduce moisture into the air.

Beyond its technical specifications, the D3-08B-1's design reflects Automation Direct’s commitment to quality and durability. The module's construction ensures long-term reliability, even in demanding applications that require continuous operation. Its ability to support a broad range of I/O modules and CPUs makes it a central component in scalable automation systems, providing a reliable platform that can grow and evolve alongside the needs of the application.

In summary, the D3-08B-1 8 Slot I/O Base Module is a cornerstone of the DirectLOGIC 305 series, offering the flexibility, reliability, and durability required for modern industrial automation. Its compatibility with multiple CPUs and I/O modules, combined with its robust current capacity and environmental resilience, make it an indispensable component for any system that demands high performance and adaptability. Whether used in a small-scale application or as part of a larger, more complex system, the D3-08B-1 provides the foundational infrastructure necessary to support efficient and effective automation.

Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
