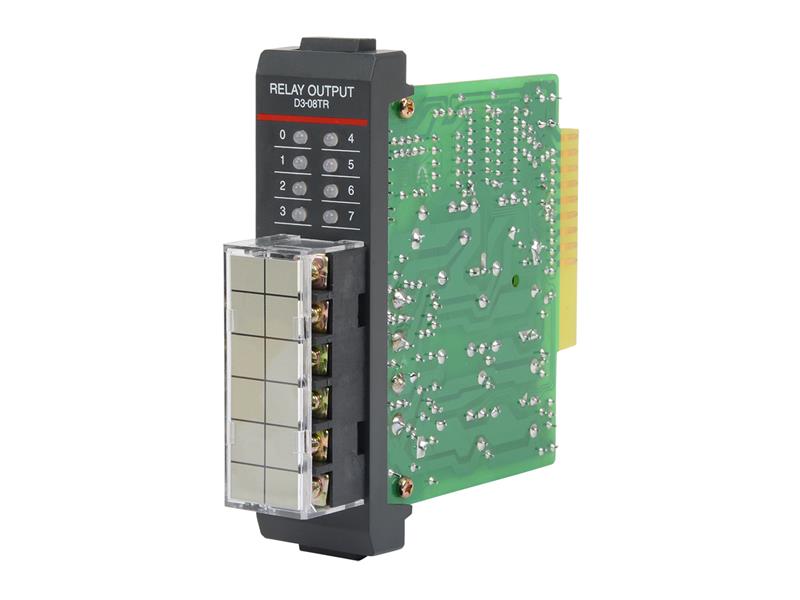

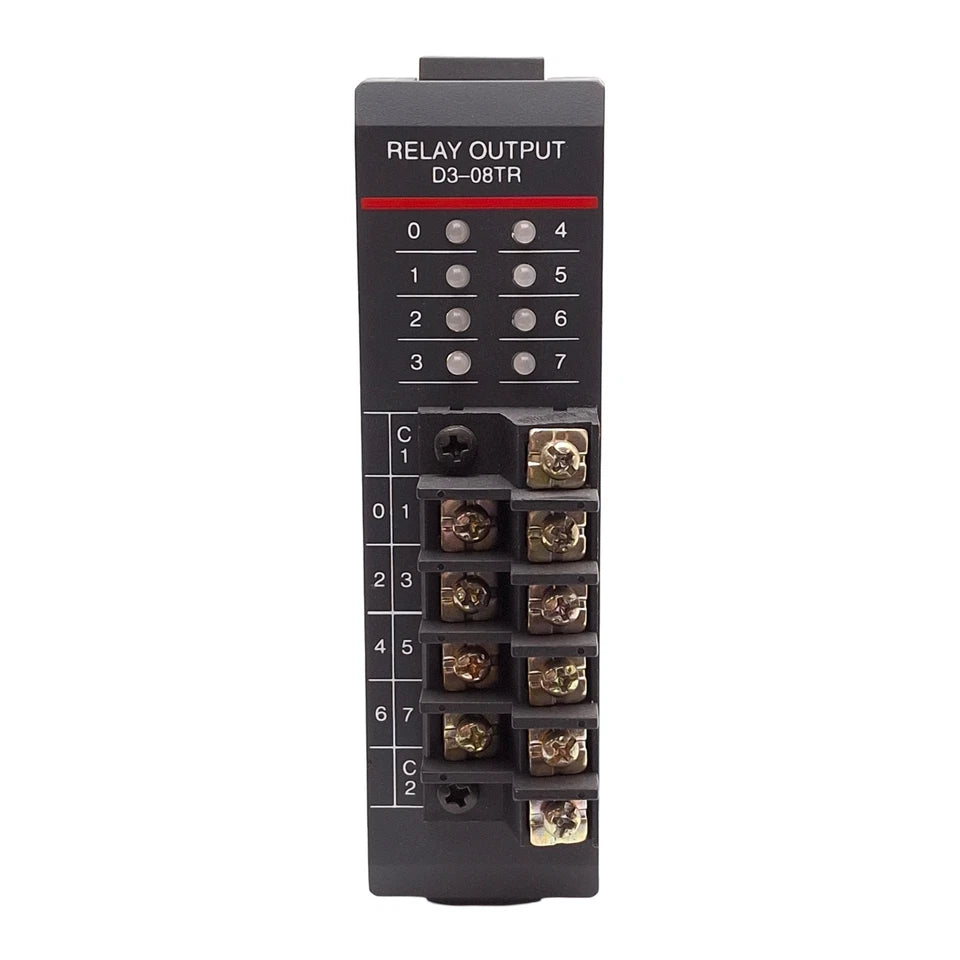

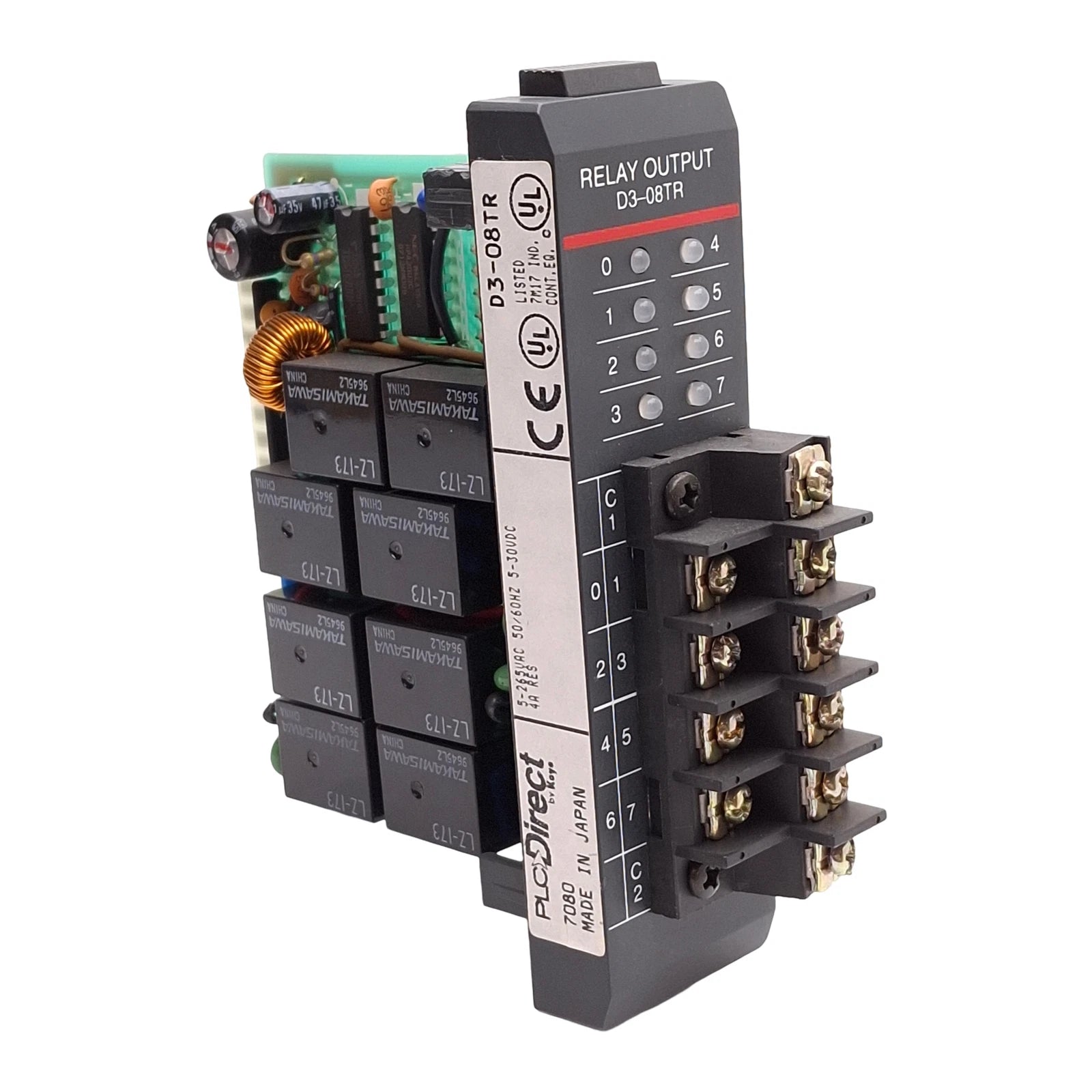

D3-08TR | Automation Direct Relay Output Module
- Regular price
- $389.00
- Sale price
- $389.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D3-08TR
Description
The D3-08TR is an Automation Direct Relay Output Module designed for industrial automation systems. It features eight relay outputs, enabling reliable control and switching of various external devices. This module ensures efficient integration and operation within automation setups, providing robust performance for diverse applications.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs/Machine Control |
| Part Number | D3-08TR |
| Subcategory | VDC Logic I/O Module |
| Product Type | Relay Output Module |
| Number of Channels | 8 |
| Relay Type | Electromechanical relay |
| Relay Configuration | SPDT (Single Pole Double Throw) |
| Output Current Rating | 2 A per relay |
| Output Voltage Rating | 30 VDC / 250 VAC |
| Isolation | 1500 V RMS between output and input |
| Contact Material | Silver alloy |
| Switching Life | 100,000 cycles at rated load |
| Input Voltage Range | 12-24 VDC |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Humidity Range | 5% to 95% non-condensing |
Information About D3-08TR
The Automation Direct D3-08TR Relay Output Module is an essential component designed for PLCs and machine control systems, offering reliable and versatile output capabilities. As a relay output module within the VDC Logic I/O Module subcategory, it is engineered to meet the demands of industrial automation applications, providing precise control and seamless integration with various devices.

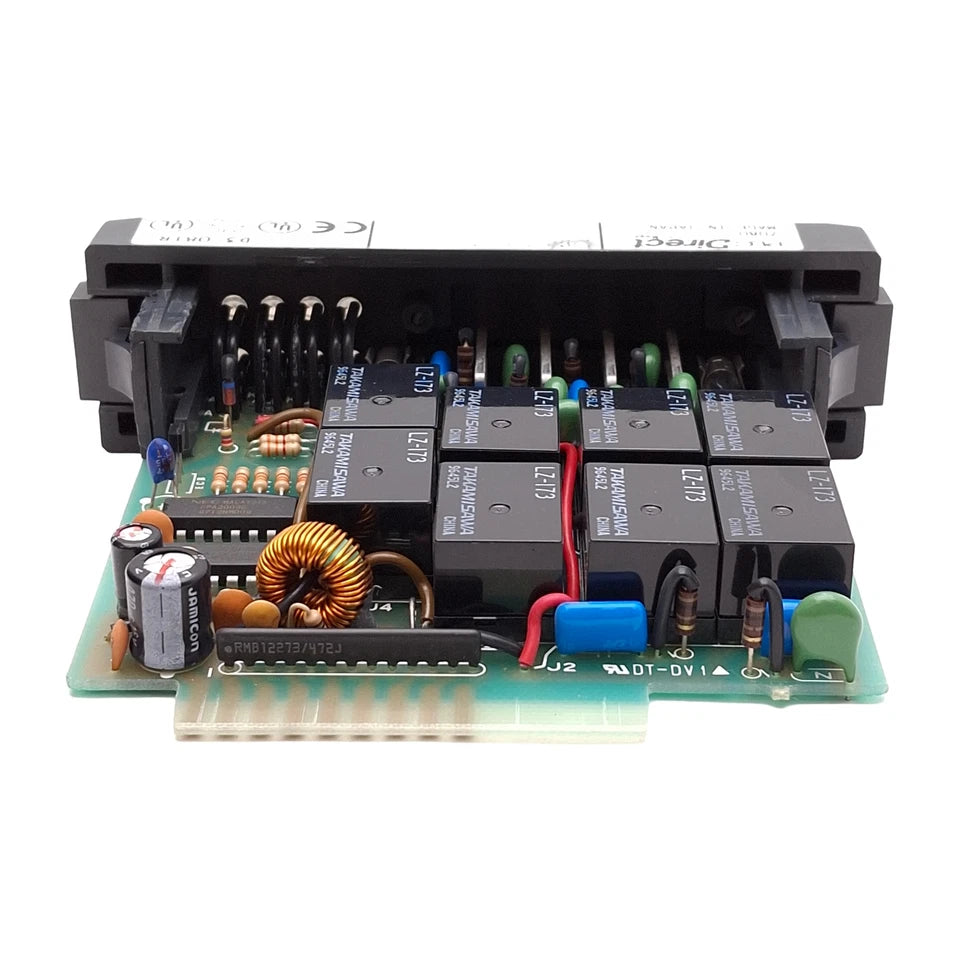

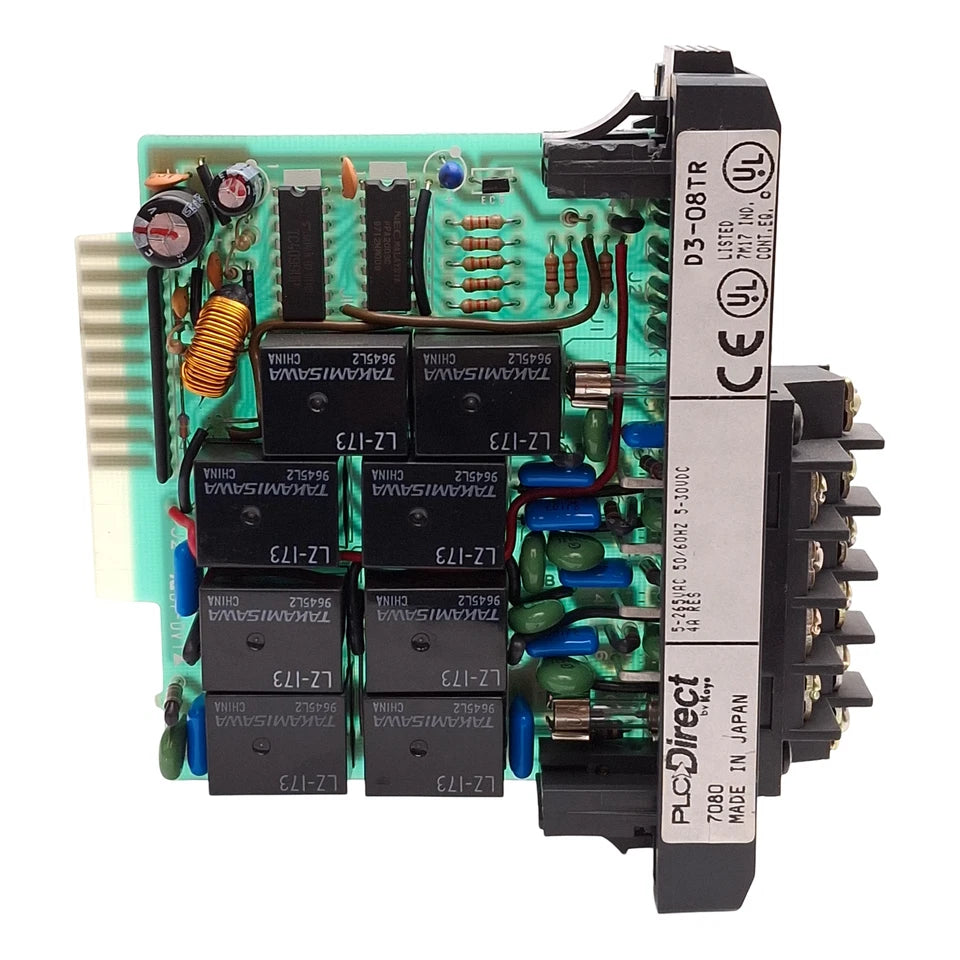

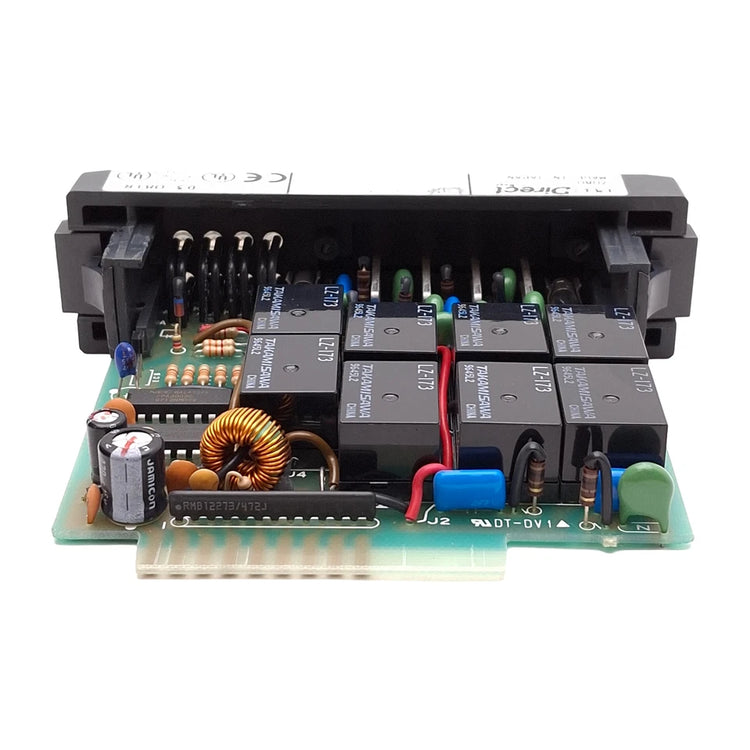

The D3-08TR is equipped with 8 individual output channels, each utilizing an electromechanical relay. These relays are configured as Single Pole Double Throw (SPDT), allowing for flexible switching between two distinct outputs. This configuration is ideal for applications requiring reliable switching between different circuits or for controlling multiple devices within a system.
Each relay in the D3-08TR module is capable of handling an output current rating of up to 2 amps, making it suitable for a wide range of low to medium power switching applications. The module supports an output voltage rating of 30 VDC and 250 VAC, providing versatility in controlling both DC and AC loads. This capability is crucial for environments where both types of voltages are present, ensuring that the module can manage various devices effectively.
To ensure safe and reliable operation, the D3-08TR module features an isolation rating of 1500 V RMS between the output and input. This high level of isolation protects the control system from potential electrical surges or interference, enhancing the overall stability and longevity of the equipment. The use of silver alloy contact material in the relays further contributes to the module’s durability and performance. Silver alloy is known for its excellent conductivity and resistance to oxidation, which ensures consistent performance over time.
The D3-08TR is designed to handle demanding switching operations, with a switching life of 100,000 cycles at the rated load. This long switching life ensures that the module can withstand the rigors of continuous operation in industrial environments, reducing the need for frequent maintenance or replacement.
The input voltage range for the D3-08TR module is 12-24 VDC, providing compatibility with various control signals commonly used in industrial automation. This wide input range allows for seamless integration with different PLC systems and control devices, making it a versatile choice for diverse applications.
Operating within a temperature range of 0°C to 60°C (32°F to 140°F), the D3-08TR module is well-suited for use in environments with varying ambient temperatures. This range ensures reliable performance in both standard and slightly elevated temperature conditions, making the module suitable for installation in control panels and enclosures where temperature regulation may vary. Additionally, the module can operate in humidity levels ranging from 5% to 95% non-condensing, further demonstrating its adaptability to different environmental conditions.
In summary, the Automation Direct D3-08TR Relay Output Module is a robust and versatile solution for managing output control in PLC and machine control systems. With its 8 SPDT electromechanical relays, high output current and voltage ratings, and reliable isolation, it provides dependable switching capabilities for a wide range of applications. The module’s durable construction, including silver alloy contacts and a long switching life, ensures that it can handle the demands of industrial automation with minimal maintenance. Whether used in controlling AC or DC loads, the D3-08TR offers a reliable and efficient interface between your control system and the devices it manages.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
