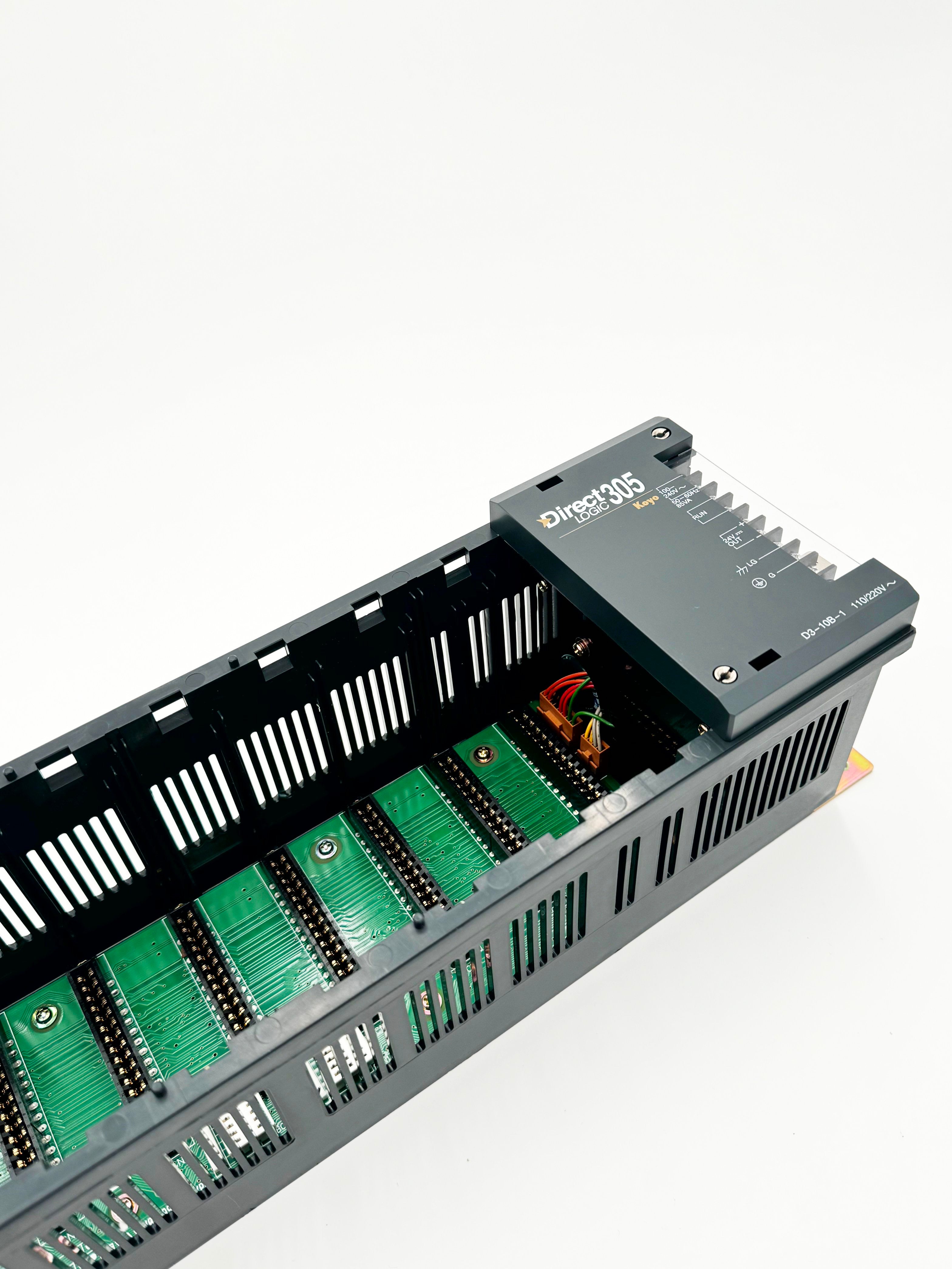

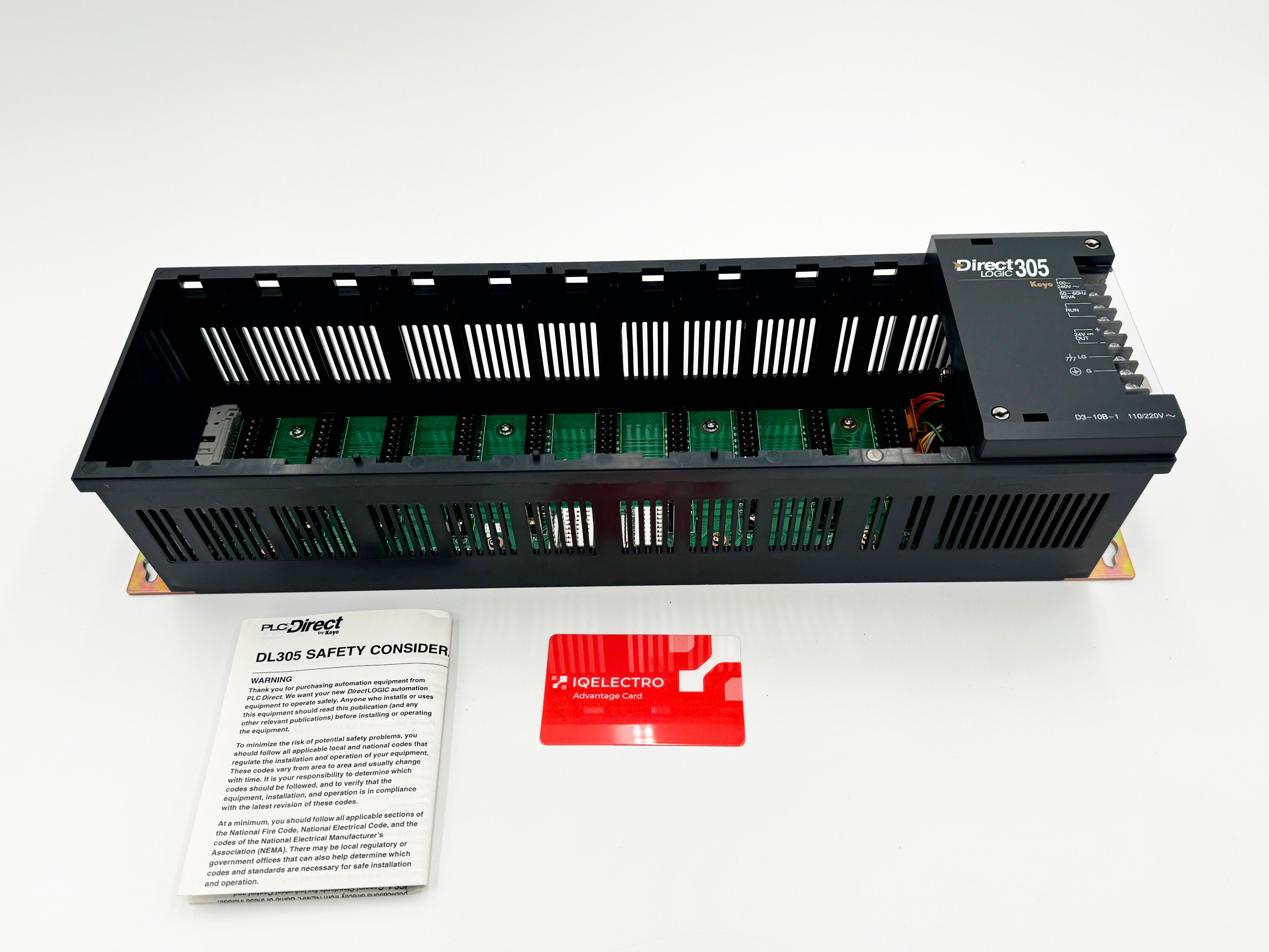

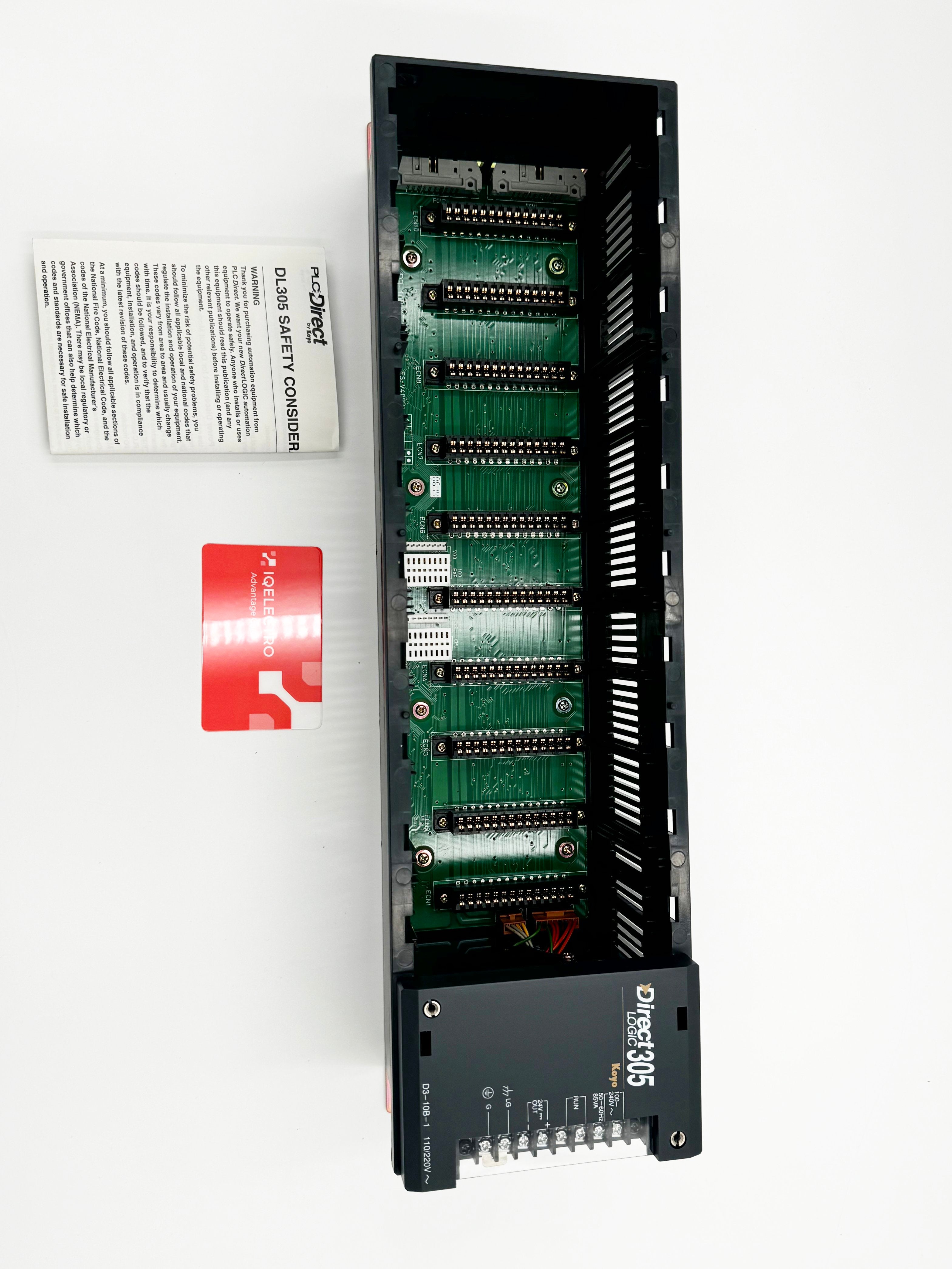

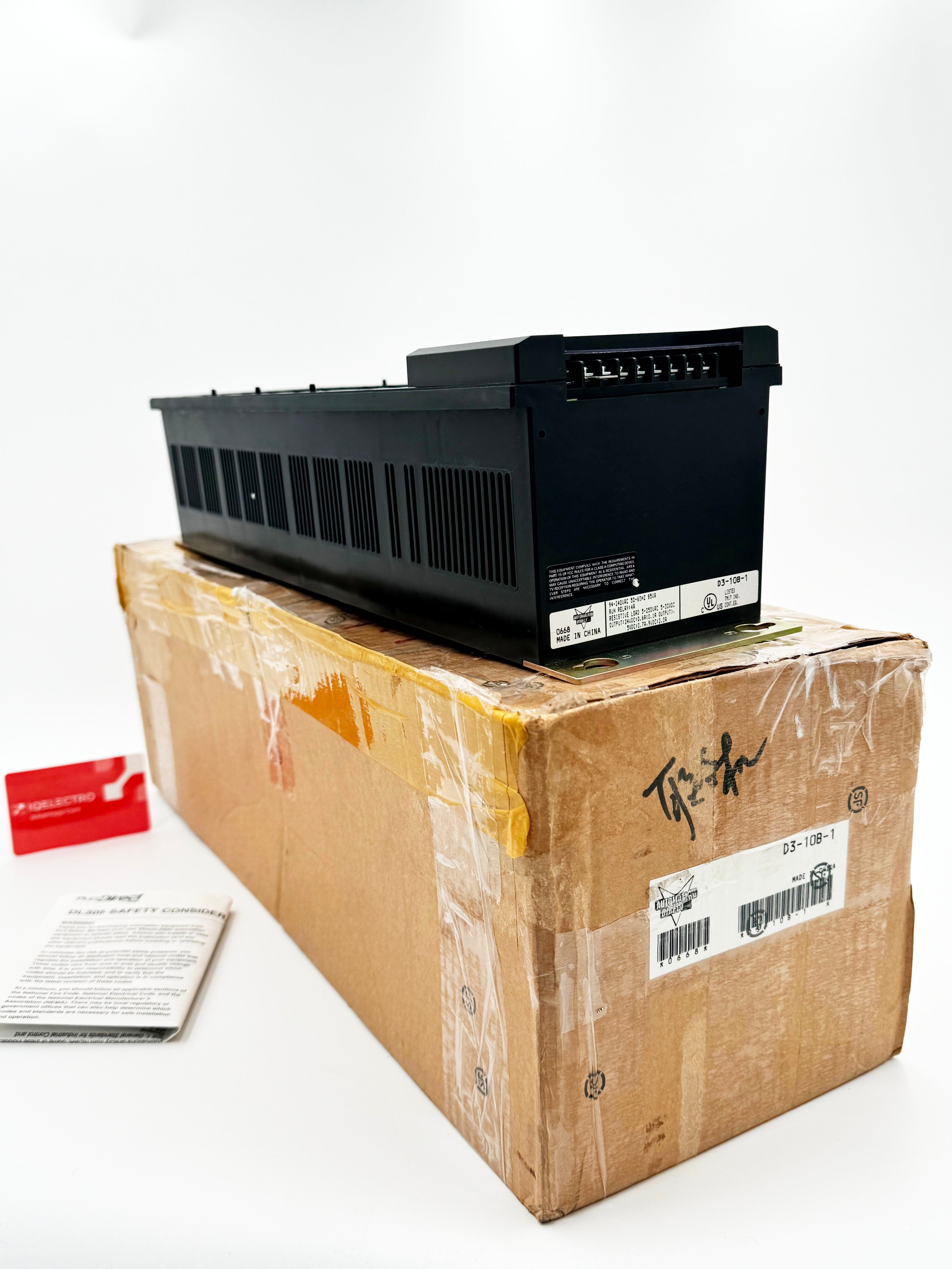

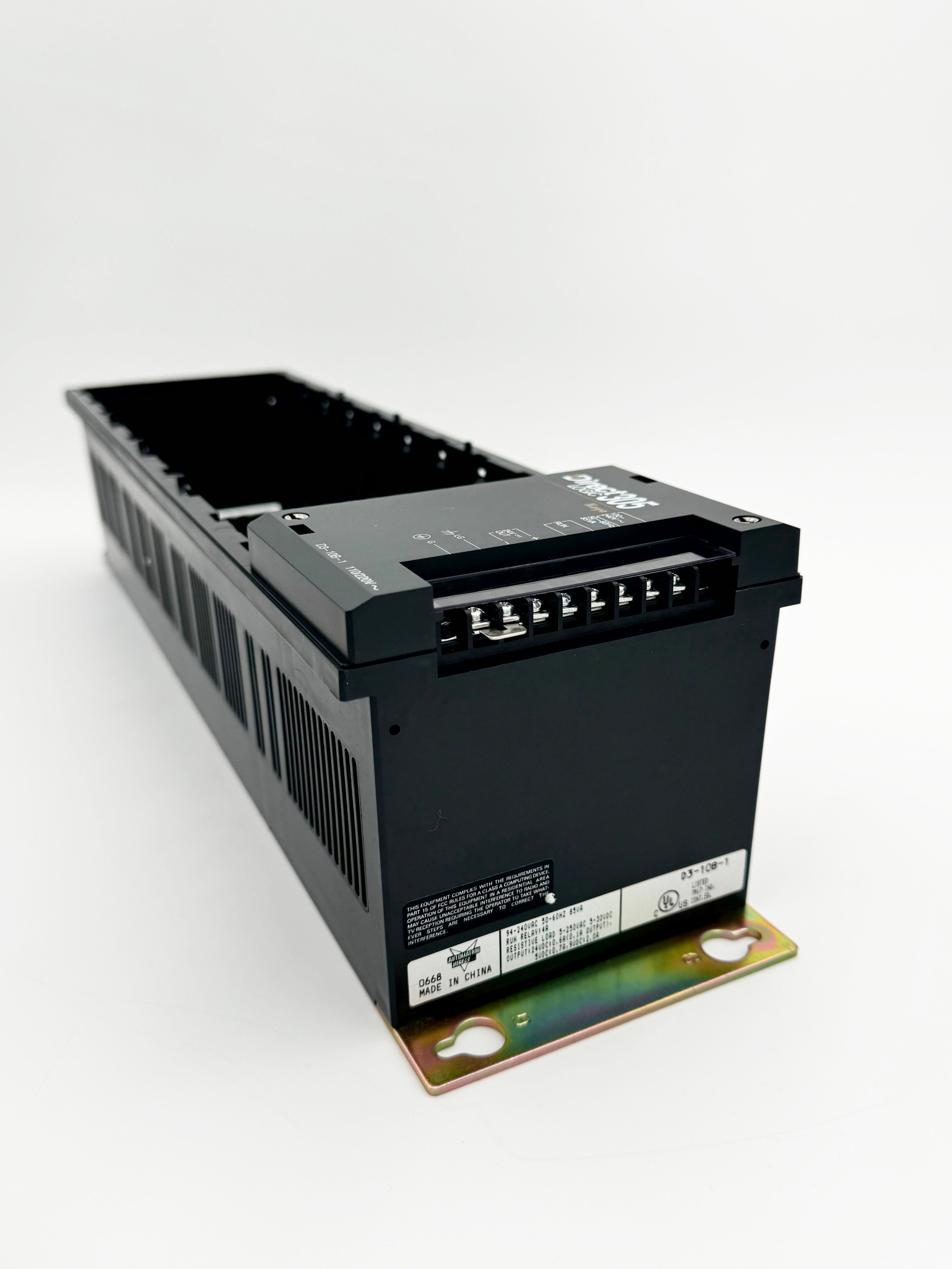

D3-10B-1 | Automation DirectLOGIC 10-Slot PLC I/O Base, 85–264 VAC, Panel-Mount
- Regular price
- $912.00
- Sale price
- $912.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D3-10B-1
Description
The Automation Direct D3-10B-1 is a robust 10-slot panel-mount I/O base designed to support CPUs, communication modules, and I/O devices in industrial control systems. Engineered for reliable expansion and stable power distribution, it provides a durable foundation for building scalable PLC architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs / Machine Control |
| Part Number | D3-10B-1 |
| Subcategory | PLC Module / Rack |
| Slot Count | 10 Slots |
| Input Voltage Range | 85–264 VAC |
| Frequency | 47–63 Hz |
| Power Consumption | 85 VA Maximum |
| Maximum Inrush Current | 30 A for 1 ms |
| Dielectric Strength | 2000 VAC |
| Fuse Requirement | 2 A (250 V), Non-replaceable |
| Dimensions | 18.3 W × 4.85 H × 4.41 D in (465 × 123 × 112 mm) |
| Operating Temperature | 0–60 °C (32–140 °F) |
| Operating Humidity | 5–95% RH (Non-condensing) |
| Power Supply Outputs | 5 VDC (1.0 A), 9 VDC (2.0 A), 24 VDC (0.5 A) |
| Auxiliary 24 VDC Output | 100 mA Max |
| Application | PLC System Expansion, Modular Control Platforms |
Information About D3-10B-1
The Automation Direct D3-10B-1 is a versatile 10-slot PLC I/O base built to accommodate CPUs, expansion modules, and a wide range of I/O components within DirectLOGIC 305 systems. Designed for both primary and expansion use, it supports one CPU base and one expansion base—either 10-slot or 5-slot types—making it suitable for scalable automation architectures. Its wide input voltage range of 85–264 VAC and dielectric strength of 2000 VAC provide strong electrical robustness for industrial environments. The integrated power supply delivers multiple regulated voltages (5 V, 9 V, and 24 V DC) with low ripple, supporting stable operation of all installed modules. With a compact panel-mount form factor, durable construction, and broad environmental tolerances, the D3-10B-1 ensures long-term reliability in machine control, process automation, and distributed I/O applications.
Key Features
- Multi-Slot Expansion Capability: Supports up to 10 modules, enabling flexible PLC system configuration and scalable automation design.
- Wide-Range AC Power Input: Operates from 85–264 VAC, ensuring compatibility with global industrial power standards.
- Integrated Multi-Voltage Power Supply: Provides regulated 5 V, 9 V, and 24 V DC outputs to support CPUs, I/O modules, and peripheral devices.
- Strong Electrical Protection: Features 2000 VAC dielectric strength and a built-in 2 A fuse for enhanced safety and insulation performance.
- High Inrush Current Tolerance: Handles up to 30 A inrush for stable startup in large or heavily loaded systems.
- Rugged Industrial Design: Rated for 0–60 °C operation and 5–95% humidity, supporting reliable use in varied industrial environments.
- Panel-Mount Construction: Compact rack design simplifies installation in control cabinets and machine panels.
- Suitable for DirectLOGIC 305 Systems: Fully compatible with CPUs and I/O modules from Automation Direct’s D3 series.
The D3-10B-1 delivers the reliability and flexibility required for building scalable PLC architectures in demanding industrial automation environments.
