D3-10B | Automation Direct 10 Slot I/O Base DL305 DirectLOGIC 305

Description

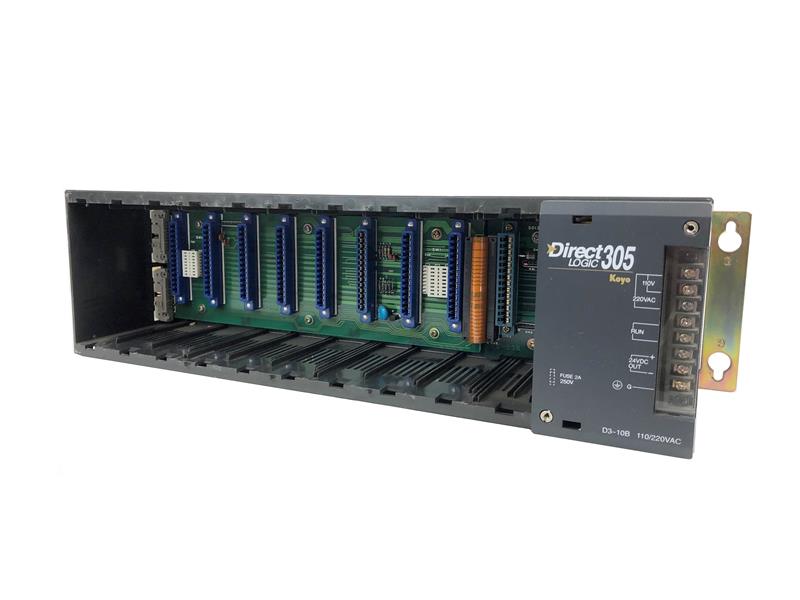

The D3-10B is a 10-slot I/O base unit designed for use with the Automation Direct DirectLOGIC 305 (DL305) PLC system. It provides slots for up to 10 I/O modules, facilitating the integration of various input and output devices. The base serves as the foundation for modular expansion in industrial automation applications.

Technical Specifications

Information About D3-10B

The D3-10B is a 10-slot I/O base unit designed for use in PLC and machine control systems, specifically as part of the Automation Direct DirectLOGIC 305 (DL305) series. This base unit serves as the foundation for integrating various input/output (I/O) modules, offering a modular and expandable approach to industrial automation. Categorized under PLC Module/Rack systems, the D3-10B provides a versatile and scalable solution for organizing and managing multiple I/O modules within an automation framework.

One of the key features of the D3-10B is its ability to accommodate up to 10 I/O modules. These slots enable the user to insert various types of input and output modules, depending on the specific needs of the system. This flexibility allows the D3-10B to support a wide range of industrial applications, from process control and manufacturing automation to machine monitoring and data acquisition. The 10-slot capacity ensures that the base unit can handle complex automation tasks that require multiple input and output connections, making it ideal for both small-scale and large-scale automation projects.

The D3-10B comes with an integrated power supply, simplifying installation and reducing the need for external power sources. The built-in power supply operates on an input voltage of 110/220 VAC, making it suitable for use in various industrial environments where these voltage standards are prevalent. The dual voltage capability ensures that the base unit can be deployed in both domestic and international settings without requiring additional voltage converters. This flexibility in power supply compatibility enhances the versatility of the D3-10B, making it a practical choice for global industrial applications.

In addition to the input voltage range, the power supply supports both 50 Hz and 60 Hz frequencies, further expanding its adaptability across different regions and power standards. The ability to operate at both frequencies ensures that the D3-10B can function reliably in a wide variety of electrical environments, making it suitable for industries with varying power grid standards. This feature is particularly beneficial for multinational operations that require consistent performance across multiple facilities in different locations.

The D3-10B is designed to serve as the backbone of an Automation Direct DL305 control system, providing a stable platform for connecting I/O modules to the CPU and other system components. Each of the 10 slots is engineered to support a variety of I/O modules, including digital input, digital output, analog input, analog output, and specialty modules, depending on the specific configuration and application. This modularity allows users to tailor the system to their exact requirements, providing flexibility in system design and scalability for future expansion.

One of the key advantages of the D3-10B is its robust construction, built to withstand the demands of industrial environments. The base unit is designed for long-term durability, ensuring reliable performance even in harsh operating conditions. Its rugged design protects internal components from physical damage and environmental factors such as dust and vibration, contributing to the overall reliability of the system. This durability ensures that the D3-10B can maintain consistent operation in demanding industrial settings, reducing downtime and maintenance requirements.

The D3-10B’s ease of integration into existing systems is another notable feature. With its standardized form factor and compatibility with the DirectLOGIC 305 series, this base unit can be quickly and easily installed in new or existing control systems. The 10-slot configuration provides ample space for I/O expansion, allowing users to add or remove modules as needed without requiring major system modifications. This expandability makes the D3-10B an excellent choice for systems that need to grow or adapt to changing operational requirements over time.

In terms of application, the D3-10B is ideal for use in a wide range of industries, including manufacturing, energy, automotive, and more. Its ability to support multiple I/O modules makes it suitable for monitoring and controlling complex processes, such as machine operations, environmental monitoring, and system diagnostics. The modular nature of the base unit allows it to be customized to fit specific application needs, providing users with a tailored solution that meets their operational requirements.

In summary, the D3-10B is a highly versatile and reliable 10-slot I/O base unit designed for use in industrial automation systems. Its built-in power supply, which supports 110/220 VAC input voltage and operates at both 50 Hz and 60 Hz, makes it adaptable to various global power standards. The ability to accommodate up to 10 I/O modules provides significant flexibility in system design, allowing users to build scalable and customizable automation solutions. With its robust construction and ease of integration, the D3-10B is an essential component for any industrial control system requiring modular I/O expansion and reliable performance in challenging environments.

Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
