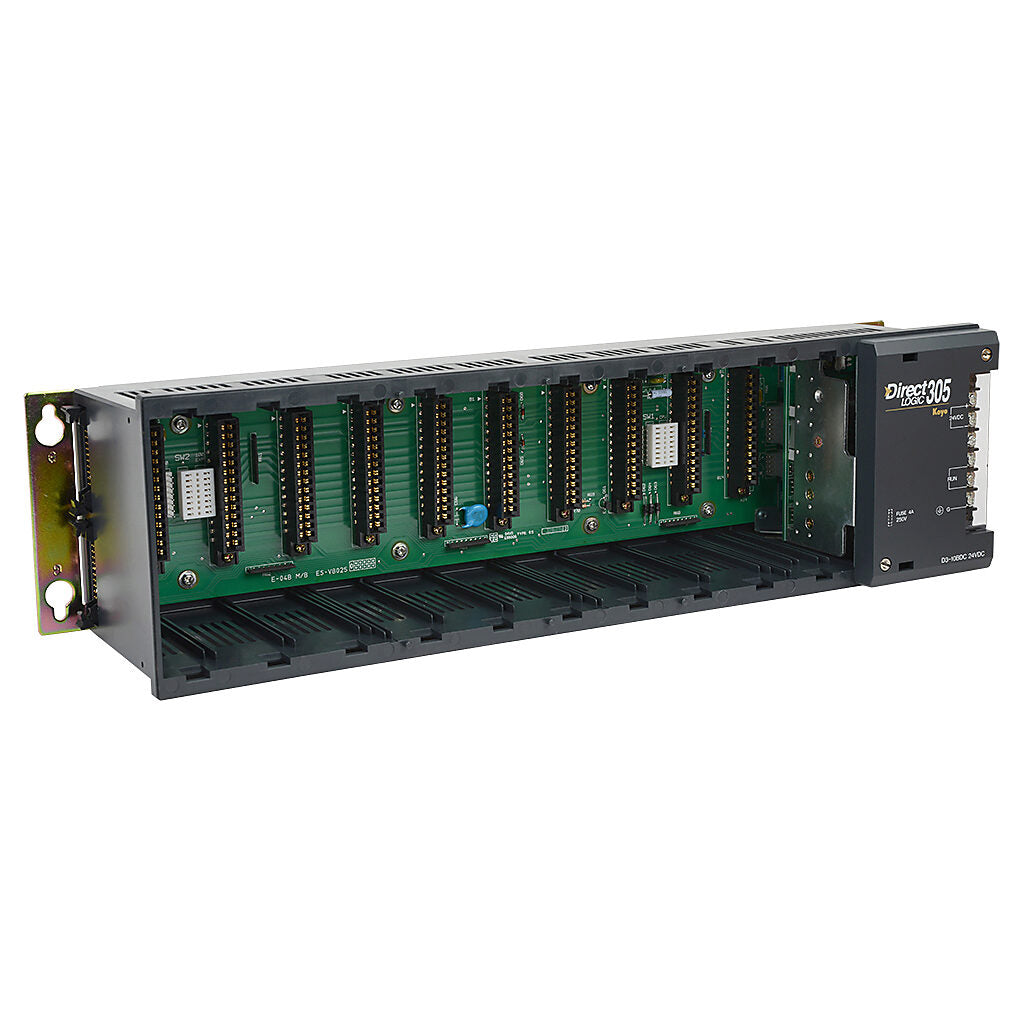

D3-10BDC | Automation Direct DirectLOGIC DL305 10-Slot I/O Base Panel Mount

D3-10BDC | Automation Direct DirectLOGIC DL305 10-Slot I/O Base Panel Mount

Part #: D3-10BDC Manufactured by: Automation Direct

Regular price: $617.00
Sale price: $617.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The D3-10BDC is a 10-slot DL305 I/O base that serves as the structural and electrical foundation for modular PLC assemblie... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: D3-10BDC

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Automation Direct

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: D3-10BDC

Description / Specifications

Description

The Automation Direct D3-10BDC is a DirectLOGIC DL305 10-slot I/O base designed for panel-mounted PLC installations. It provides a structured mounting platform for DL305 CPUs, discrete I/O, and specialty modules. This base requires an external 24 VDC power supply to support backplane communication and module operation.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Automation Direct
Category	PLC Hardware
Part Number	D3-10BDC
Subcategory	PLC I/O Bases
Series	DirectLOGIC DL305
Slot Capacity	10 Slots
Mounting Type	Panel Mount
Power Requirement	External 24 VDC
Backplane Type	Integrated DL305 Backplane
Compatible Modules	DL305 CPU, Discrete I/O, Specialty Modules
Installation Environment	Industrial Control Panel
Application	PLC System Expansion
Weight	3.1 lb

Information About D3-10BDC

The D3-10BDC is part of the DirectLOGIC DL305 hardware platform and functions as the central mounting chassis for modular PLC configurations. It accommodates up to ten DL305 modules, allowing flexible system expansion within a single rack. Designed for panel mounting inside industrial enclosures, the base ensures secure module alignment and electrical backplane connectivity. An external 24 VDC power source is required to energize the backplane and installed modules, providing consistent and stable system performance.

Key Features:

10-Slot Capacity: Supports installation of up to ten DL305 modules.
DirectLOGIC DL305 Compatibility: Designed for seamless integration with DL305 CPUs and I/O modules.
Panel Mount Design: Enables secure installation within industrial control cabinets.
External 24 VDC Requirement: Provides controlled backplane power distribution.
Integrated Backplane: Ensures reliable communication between installed modules.
Modular Expansion Platform: Allows scalable PLC system configuration.
Industrial Construction: Built for dependable performance in automation environments.

The D3-10BDC delivers the reliability and precision required for scalable DirectLOGIC DL305 PLC system expansion and structured panel installations.
