D3-16TR | Automation Direct Relay Output Module
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D3-16TR
Description

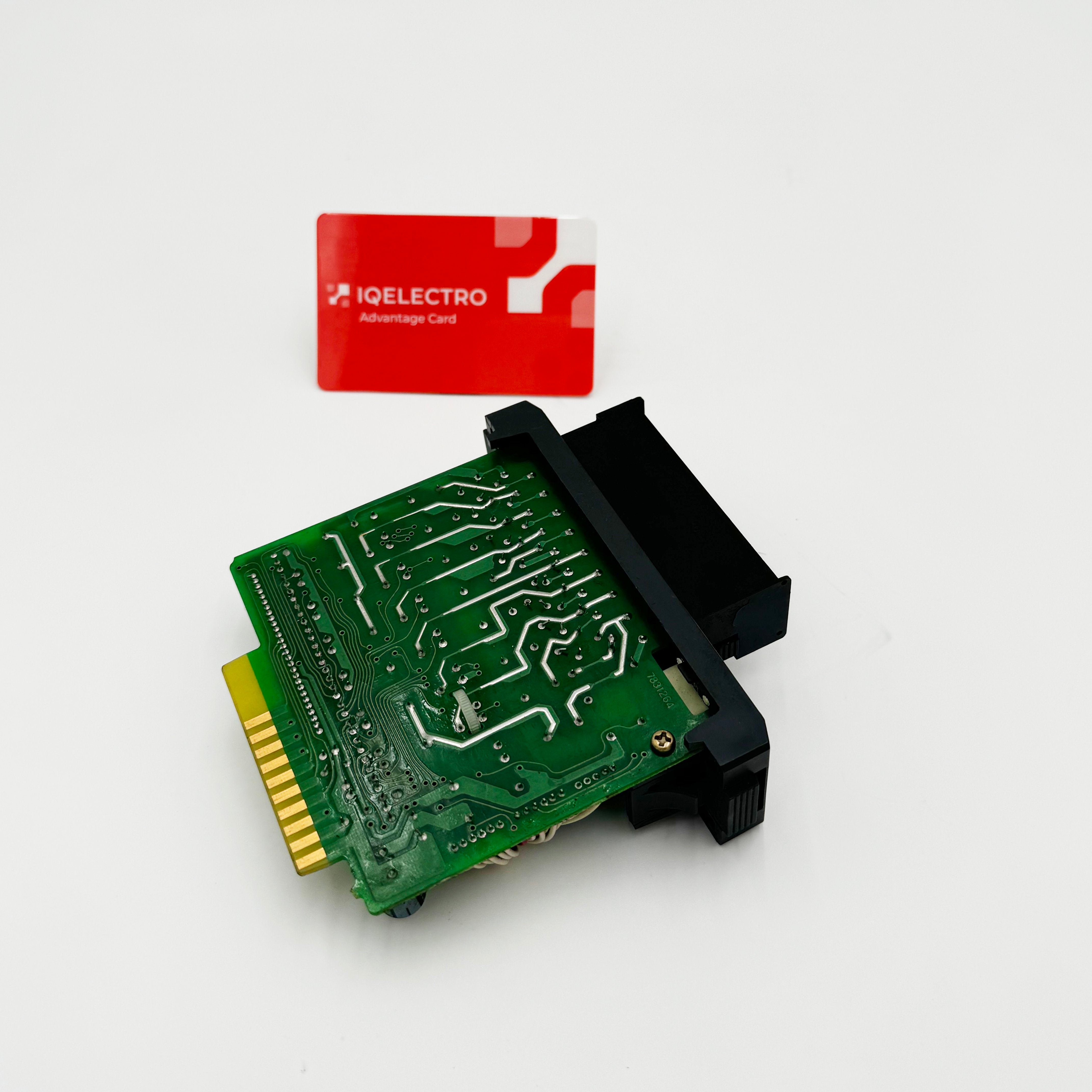

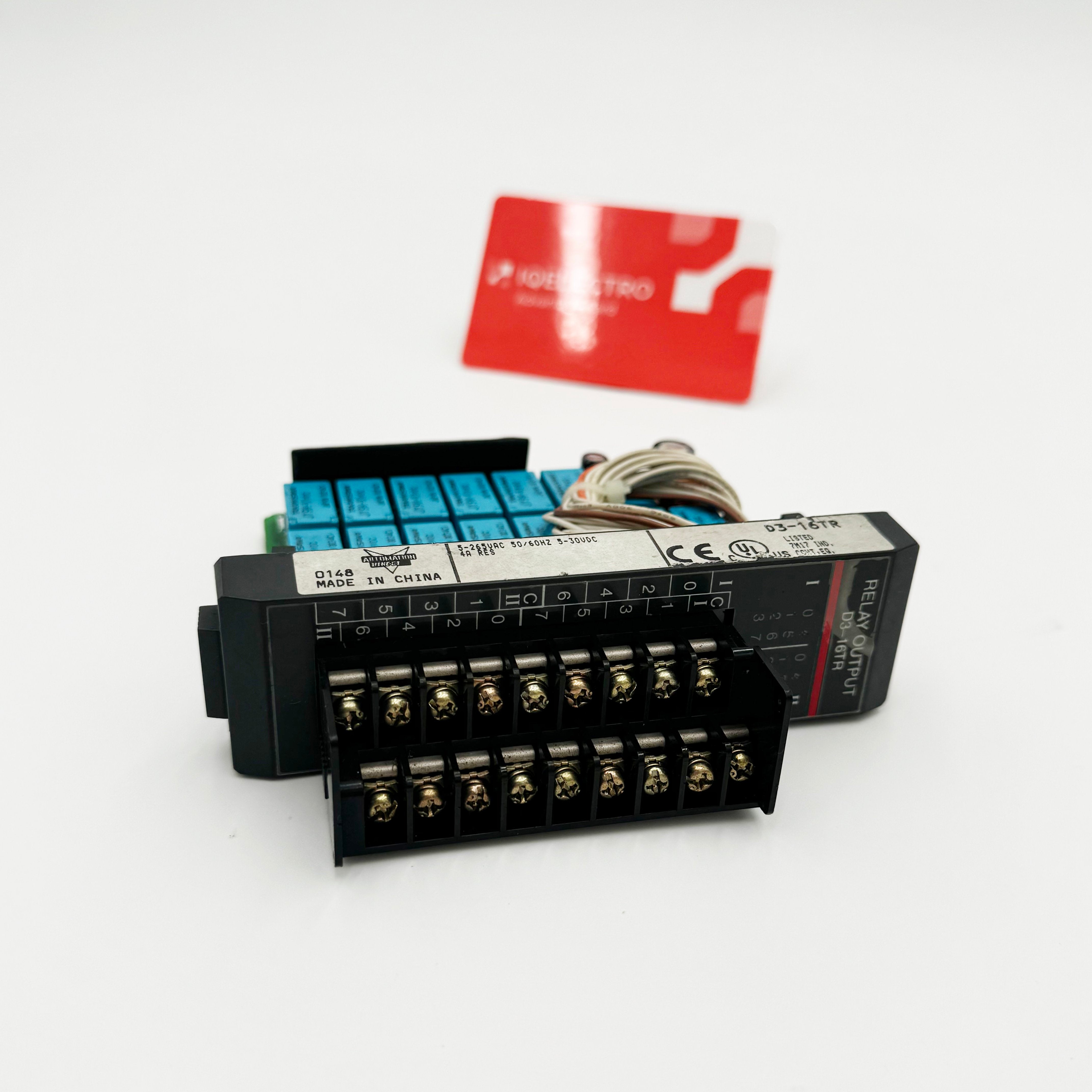

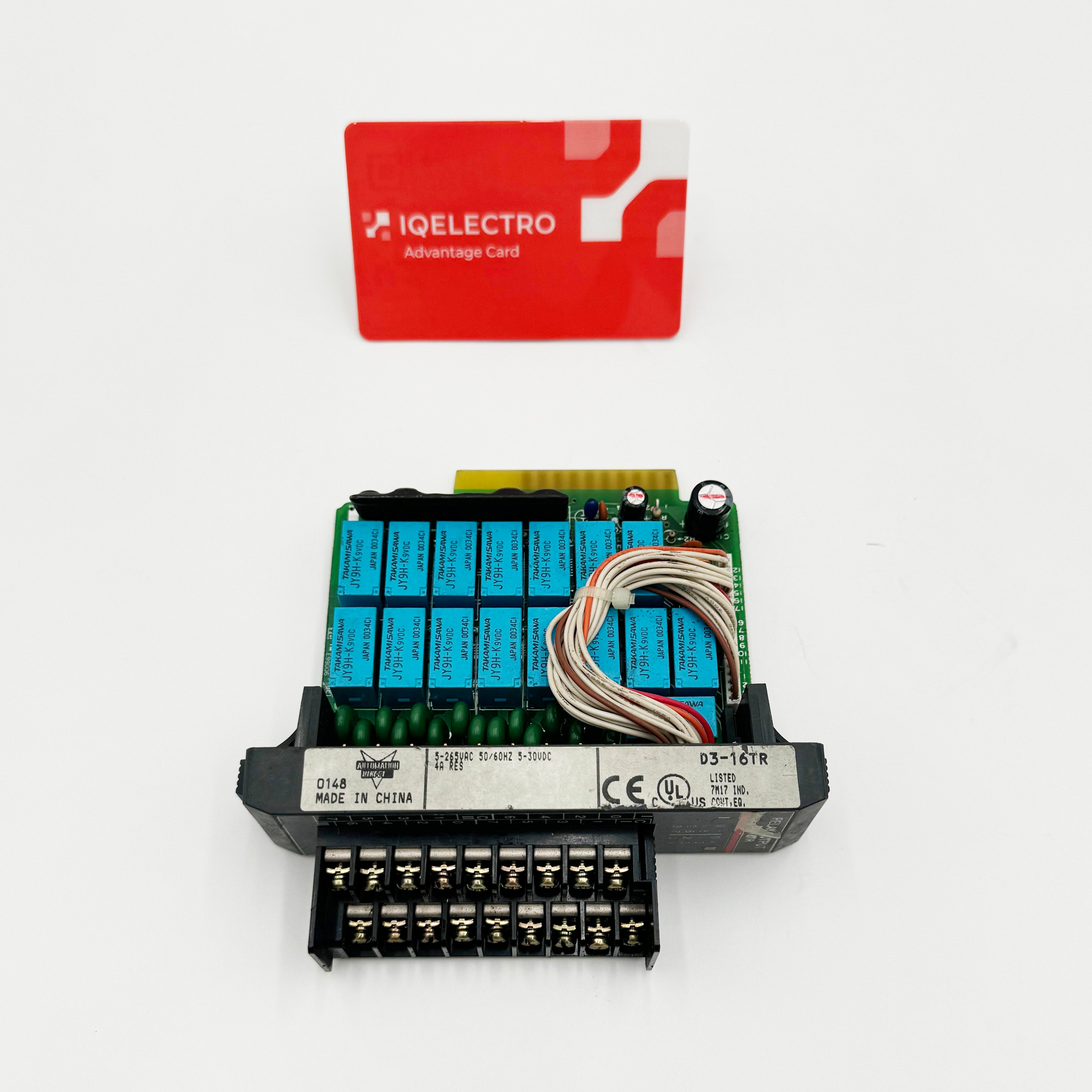

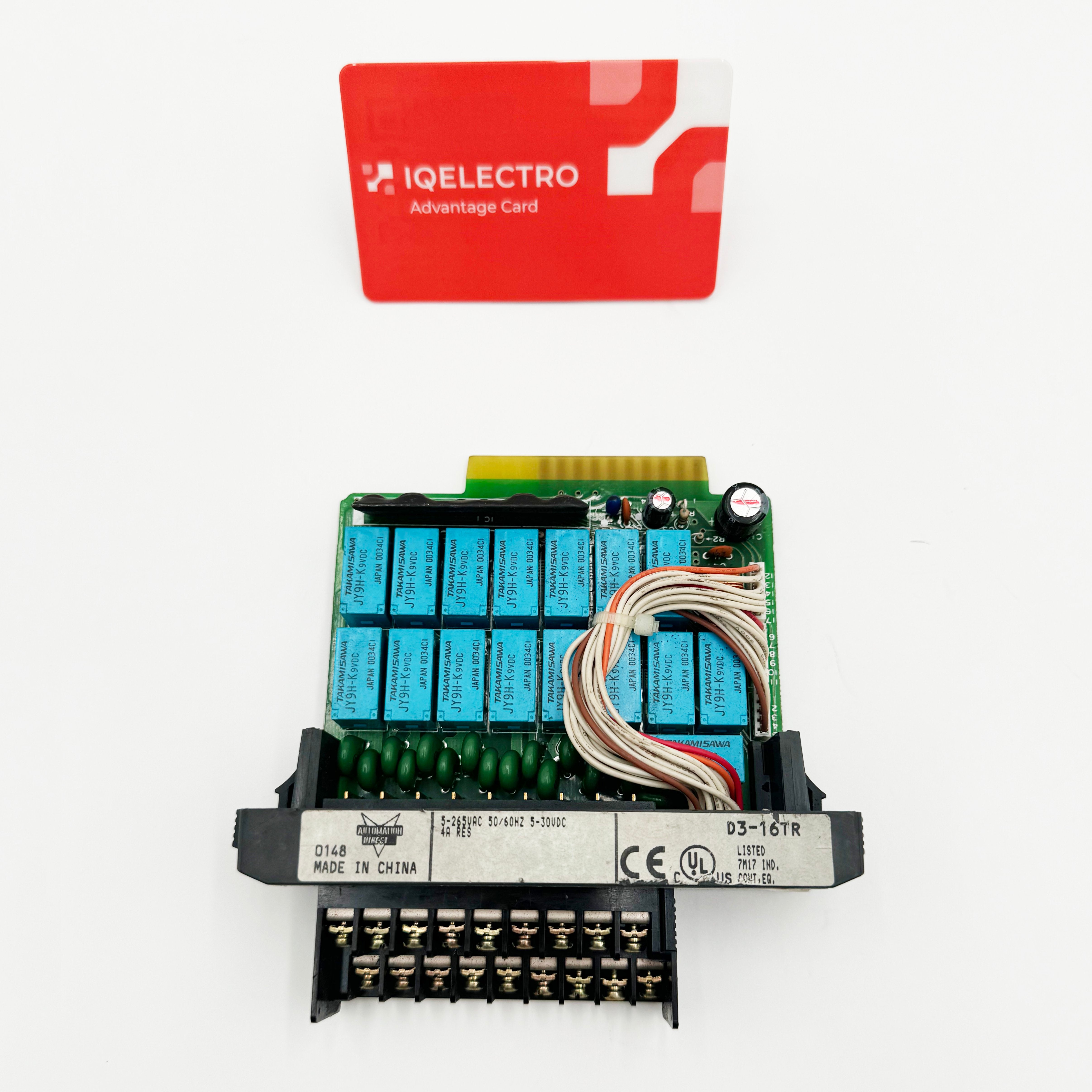

The D3-16TR is a 16-point relay output module from Automation Direct, designed for use with the DL305 PLC system. It supports both 6-24 VDC and 6-240 VAC with 2A per point and features 2 isolated commons, each supporting up to 8 points. The module includes a removable terminal block for easy installation and is ideal for controlling external devices in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs/Machine Control |
| Part Number | D3-16TR |
| Subcategory | VDC Logic I/O Module |
| Weight | 0.2 kgs |
| Relay Outputs | 16 Form A relay outputs (SPST-NO) |
| Voltage Rating | 6-24 VDC |
| Current Rating | 2A per point |
| Mounting | DIN rail |
| Isolation | 2 isolated commons; 8 points per common |
| Dimensions | 5.0 in x 2.0 in x 5.0 in (12.7 cm x 5.1 cm x 12.7 cm) |
Information About D3-16TR
The D3-16TR is a relay output module from Automation Direct, designed to provide 16 relay outputs for use with compatible PLC systems. This module is ideal for industrial applications where control of external devices like motors, alarms, and other machinery is needed, offering reliable switching capabilities for a wide range of automation tasks.
Key Features:
- Model: D3-16TR
- Type: Relay Output Module
- Manufacturer: Automation Direct
- Output Configuration: 16 relay outputs, each capable of switching AC or DC loads.
- Control: Provides discrete control over external devices via relay contacts.
- Compatibility: Designed for use with Automation Direct PLC systems, such as the D3-2 series.
- Mounting: Easily mountable on DIN rail for installation in control cabinets.
Specifications:
- Relay Output Rating: Each relay output can handle up to 2A at 30V DC or 1A at 120V AC.
- Isolation: Provides electrical isolation between the PLC and connected devices.
- Indication: Equipped with status LEDs to indicate the operation of each relay.
- Power Supply: Typically operates on 24V DC, integrated into the PLC system's power supply.
- Environment: Designed for use in industrial environments with robust construction for long-term operation.
Applications:
- Industrial Control: Used to control external devices like motors, lights, and alarms in industrial processes.
- Automation Systems: Ideal for manufacturing, packaging, and material handling applications where relay control is required.
- Machinery Integration: Facilitates the operation of machinery by providing simple on/off control via relay contacts.
The D3-16TR relay output module is an essential component for extending the capabilities of Automation Direct PLCs, offering reliable, high-quality control for various industrial automation tasks.
