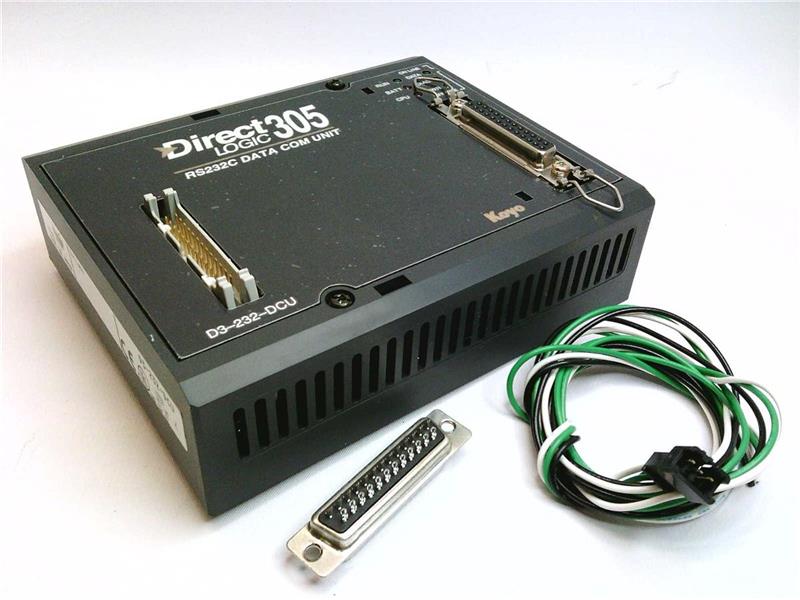

D3-232-DCU | Automation Direct Data Communication Unit
- Regular price
- $1,420.00
- Sale price
- $1,420.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D3-232-DCU
Description
The Automation Direct D3-232-DCU is a Data Communication Unit designed for DL305 PLCs, enabling RS-232C serial communication. This unit facilitates seamless data exchange between the PLC and external devices, supporting reliable communication for programming, monitoring, and data collection tasks in industrial automation systems.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs/Machine Control |
| Part Number | D3-232-DCU |
| Subcategory | PLC Module/Rack |
| Type | Data Communication Unit (DCU) |
| Series | DL305 |
| Communication Port | RS-232C |
| Baud Rate | 300 to 19.2k bps |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -20°C to +70°C |
Information About D3-232-DCU
The Automation Direct D3-232-DCU is a versatile Data Communication Unit (DCU) designed for seamless integration within the DL305 series of programmable logic controllers (PLCs). This module plays a crucial role in facilitating communication between the PLC and external devices, making it an essential component for industrial automation systems that require reliable and efficient data exchange.
At the core of the D3-232-DCU's functionality is its RS-232C communication port, a widely used standard in industrial environments for serial communication. This port ensures compatibility with a broad range of devices, including computers, modems, printers, and other peripherals that utilize the RS-232C standard. The RS-232C interface is known for its robustness and simplicity, making it a dependable choice for industrial data communication applications.
The D3-232-DCU supports a baud rate range from 300 to 19.2k bps, offering flexibility in communication speed depending on the specific requirements of the application. This wide range of baud rates allows the module to adapt to various devices and network configurations, ensuring efficient data transmission and reception. Whether the application demands low-speed communication for stability or higher speeds for quicker data transfer, the D3-232-DCU can accommodate these needs, making it a versatile solution for diverse industrial environments.
Designed to withstand the rigors of industrial use, the D3-232-DCU operates within a temperature range of 0°C to +60°C. This operating temperature range ensures reliable performance in a variety of environmental conditions typically found in industrial settings, including temperature-controlled environments and areas with moderate temperature fluctuations. The module's storage temperature range extends from -20°C to +70°C, offering additional durability when the unit is not in active use, ensuring it remains functional even after long periods of storage in less-than-ideal conditions.
The D3-232-DCU is also engineered to perform reliably in environments with varying humidity levels. It can operate effectively in conditions with relative humidity ranging from 5% to 95% non-condensing, which is critical for preventing moisture-related issues that can compromise electronic components. This humidity tolerance makes the D3-232-DCU suitable for a wide range of industrial environments, including those where humidity levels may vary significantly, ensuring long-term reliability and performance.
The compact design of the D3-232-DCU, consistent with the DL305 series, allows for easy installation within existing PLC racks. Its form factor ensures that it occupies minimal space, making it an efficient addition to any control system without requiring significant modifications to existing setups. The module’s robust construction is designed to endure the physical demands of industrial environments, providing a reliable solution for communication needs.
In addition to its technical capabilities, the D3-232-DCU integrates smoothly with the DL305 series' existing infrastructure. This compatibility ensures that users can easily incorporate the module into their current systems without needing extensive reconfiguration or additional equipment. The module's design emphasizes ease of use, enabling quick setup and configuration, which reduces downtime and enhances productivity.
Overall, the Automation Direct D3-232-DCU is a highly reliable and flexible Data Communication Unit, ideal for industrial applications that require efficient and dependable communication between PLCs and external devices. Its support for the RS-232C communication standard, wide baud rate range, and robust design tailored for industrial environments make it a valuable component in the DL305 series. Whether in a factory, plant, or other industrial settings, the D3-232-DCU delivers consistent performance, ensuring that data communication needs are met with efficiency and reliability.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
