D341418P01 | Trane OEM Furnace Control Circuit Board
- Regular price
- $677.00
- Sale price
- $677.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D341418P01
Description

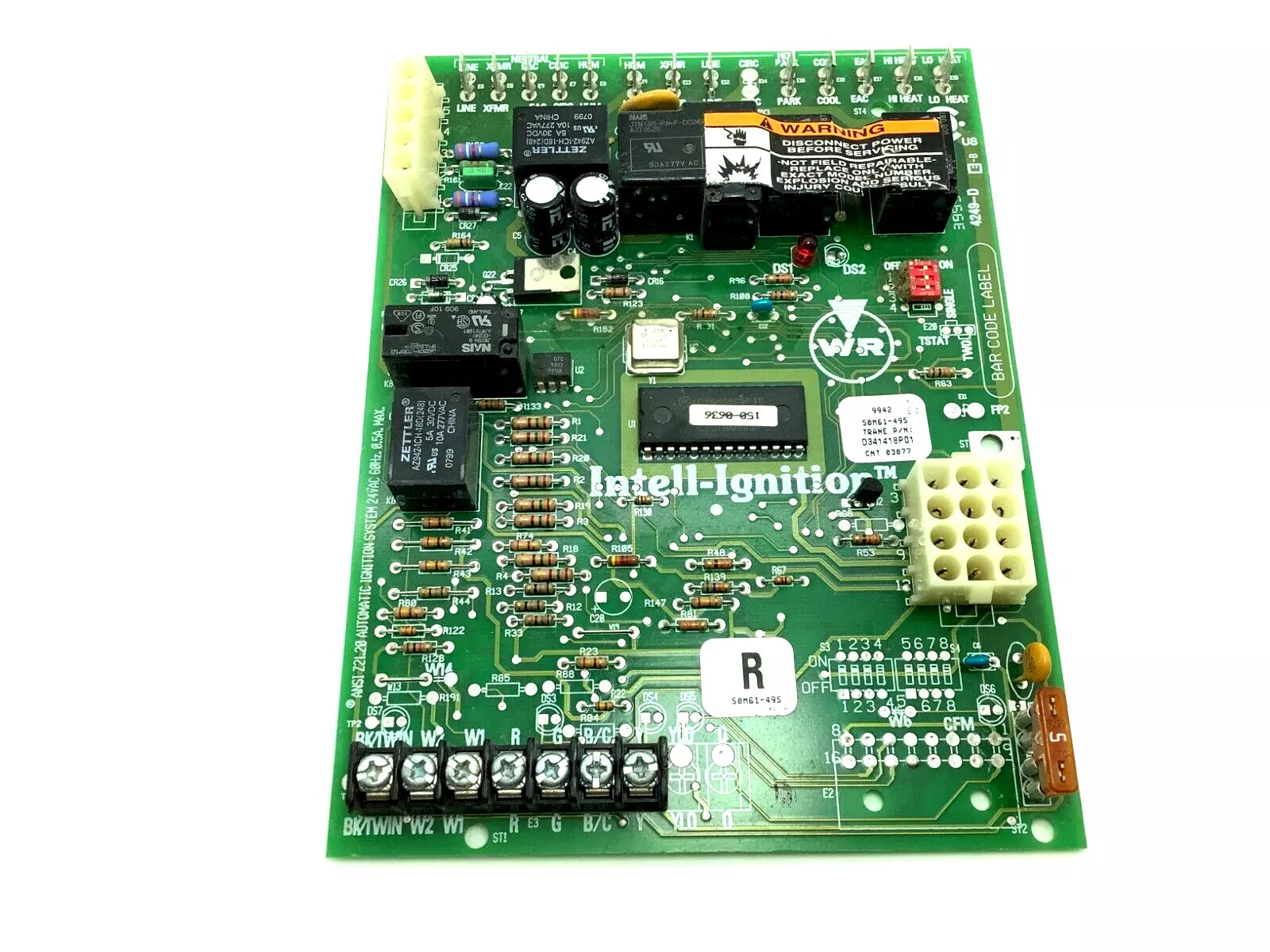

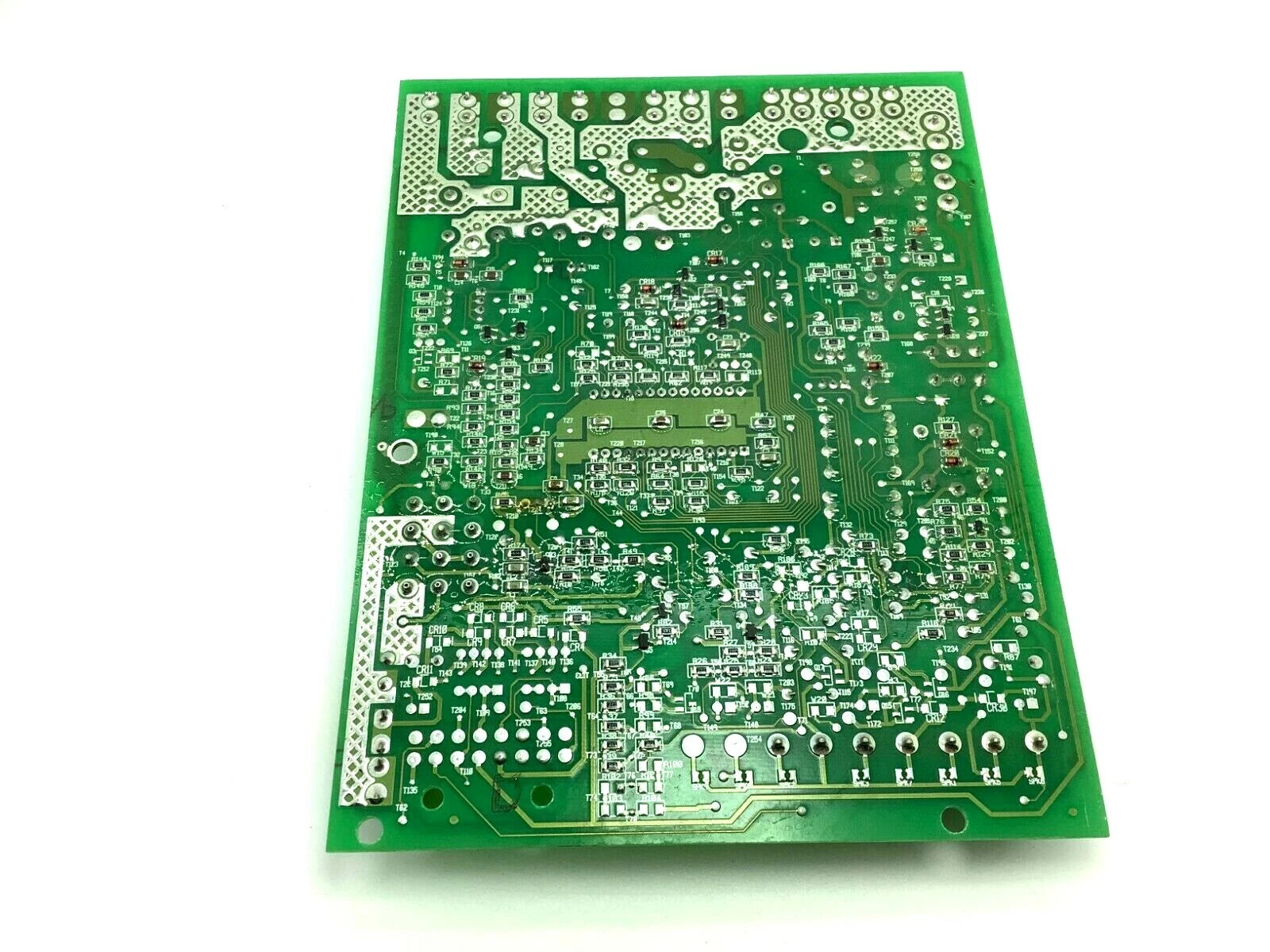

The D341418P01 is an OEM furnace control circuit board designed for Trane and American Standard two-stage, variable-speed gas furnaces. It manages ignition, blower operation, and system safety functions to ensure efficient and reliable heating performance. This board has been discontinued and is replaced by KIT15943.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Trane |
| Category |
HVAC
|
| Part Number | D341418P01 |
| Subcategory | HVAC Control System Board |
| Alternate Part Numbers | CNT3077, CNT03077 |
| Control Type | Integrated Furnace Control (IFC) |
| Heating Stages | Two-Stage |
| Blower Compatibility | Variable-Speed |
| Ignition System | Hot Surface Ignition |
| Diagnostic Indicators | LED Status Lights |
| Dimensions (inches) | 6.25" W x 4.25" H |
| Operating Voltage | 24 VAC |
| Application | Residential Gas Furnaces |
| Country of Origin | USA |
| Discontinued Status | Yes |
| Weight | Approximately 2 lbs (0.91 kg) |
Information About D341418P01
The D341418P01 is a factory-original integrated furnace control (IFC) board used in select Trane and American Standard gas furnaces. It supports two-stage heating and variable-speed blower operation, coordinating signals from the thermostat and internal sensors to manage ignition, fan timing, and safety lockouts. This board is compatible with multiple furnace models, including those using White-Rodgers 50M61-495 series controls. The D341418P01 has been superseded by KIT15943, which includes updated components and installation hardware.
Key Features:
- OEM Compatibility: Designed specifically for Trane and American Standard gas furnaces
- Two-Stage Heating Support: Controls both low and high heat stages for improved efficiency
- Variable-Speed Blower Control: Interfaces with variable-speed blower motors for optimal airflow
- Integrated Ignition Management: Manages hot surface ignitor operation and flame sensing
- Safety Lockout Functions: Monitors system faults and initiates lockouts to prevent unsafe operation
- Diagnostic Capabilities: Provides LED indicators for troubleshooting and system status
- Compact Design: Measures approximately 6.25" x 4.25" for easy installation within furnace cabinets
- Replacement Availability: Superseded by KIT15943, which includes updated board and accessories
- Durable Construction: Built to withstand the operational demands of HVAC environments
- Wide Model Compatibility: Suitable for various furnace models requiring this specific control board
The D341418P01 delivers the reliability and precision required for safe and efficient furnace operation in residential HVAC systems.
