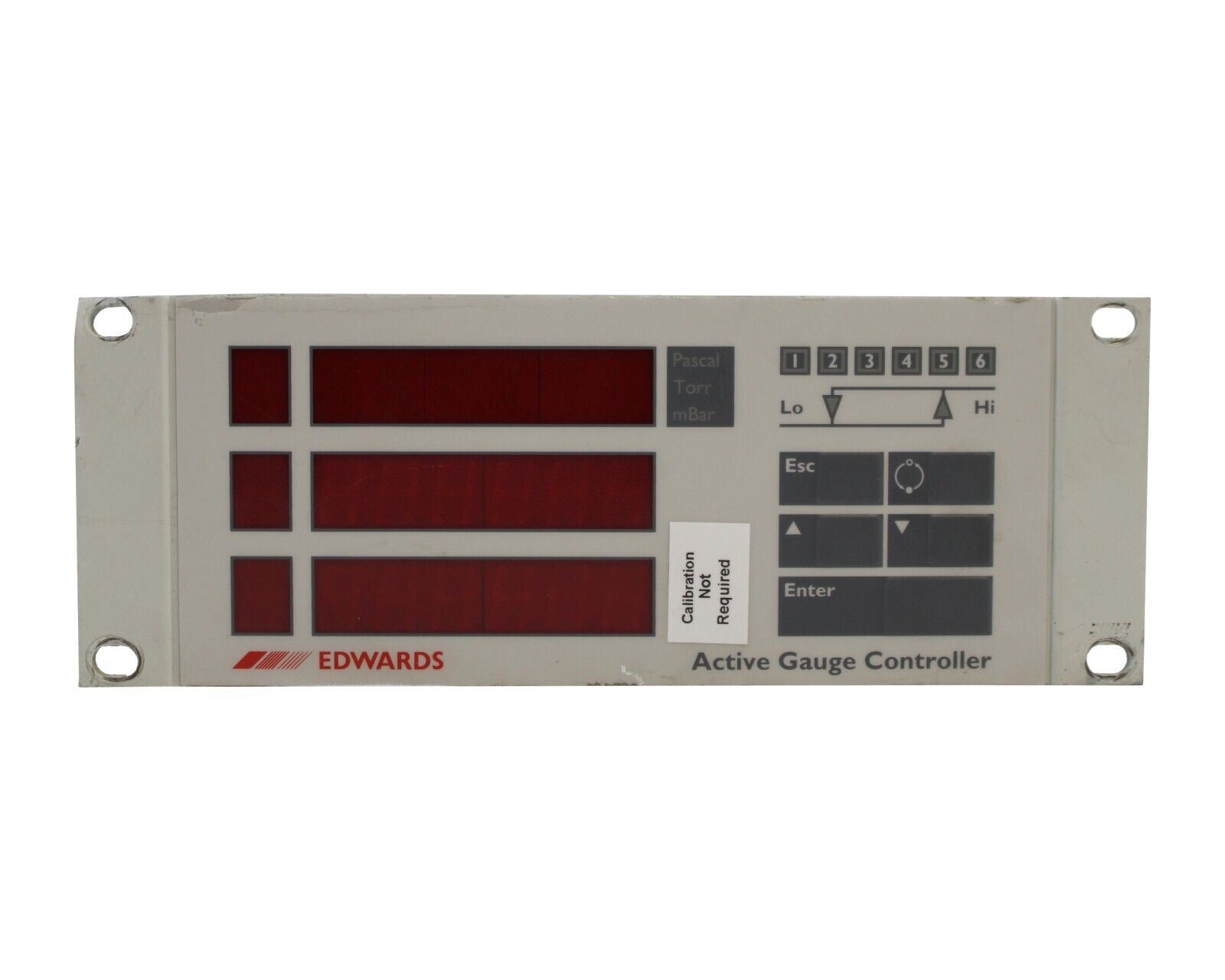

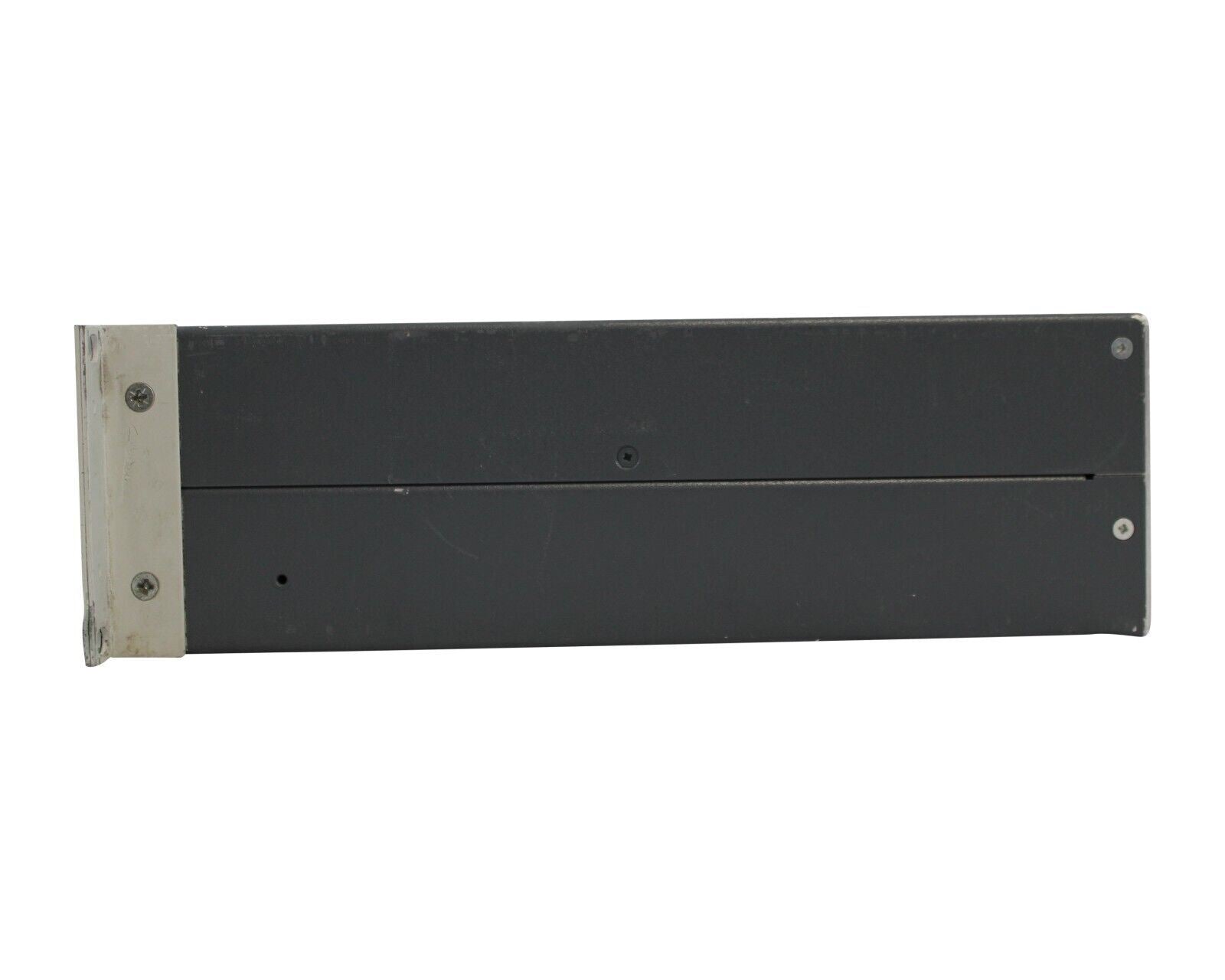

D38661000 | Edwards Signaling Triple Display Active Vacuum Gauge Controller
- Regular price
- $1,267.00
- Sale price
- $1,267.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D38661000
Description
The Edwards Signaling D38661000 Triple Display Active Vacuum Gauge Controller is a precision instrument designed to monitor and control vacuum pressure from multiple sensors simultaneously. It provides real-time readouts on three independent channels, enabling accurate system management in laboratory, research, and industrial vacuum processes. The controller integrates easily with Edwards active gauges for reliable, continuous vacuum measurement and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards Signaling |
| Category | Vacuum Measurement |
| Part Number | D38661000 |
| Subcategory | Vacuum Gauge Controllers |
| Display Type | Triple Digital LED |
| Number of Channels | 3 (Supports three active gauges) |
| Compatible Gauges | Edwards Active Pirani, Penning, Wide Range |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output Interfaces | Analog (0–10 V), RS232/RS485 |
| Control Range | Dependent on connected gauges (Atmosphere to 10⁻⁹ Torr typical) |
| Operating Temperature | 0°C to 40°C |
| Mounting Style | Benchtop or Rack Mount |
| Communication Ports | Serial and analog control outputs |
| Enclosure Type | Metal chassis, vented |
| Power Supply | Integrated for active gauges |
| Front Panel Controls | Menu, channel select, calibration, and setup keys |
| Display Units | mbar, Torr, Pa (selectable) |
| Dimensions (W x D x H) | Approx. 8.5 x 10.2 x 3.5 in (typical) |
| Weight | 5.0 lbs |
Information About D38661000
The D38661000 is part of Edwards’ advanced series of Active Vacuum Gauge Controllers, engineered for versatile operation across a wide vacuum range. It supports up to three active gauges—such as Pirani, Penning, or Wide Range gauges—allowing users to view, compare, and analyze readings across multiple pressure points. Built for precision and reliability, this unit features a bright triple digital display and multiple analog and digital interfaces for system integration. Designed for compatibility with Edwards vacuum instrumentation, the controller is ideal for process monitoring, system diagnostics, and vacuum automation.
Key Features:
- Triple Channel Monitoring: Supports up to three active gauges for simultaneous pressure measurement.
- Wide Compatibility: Works with Edwards active gauges including Pirani, Penning, and Wide Range models.
- Bright Digital Display: Three independent LED readouts provide clear, continuous pressure visualization.
- Analog and Digital Outputs: Offers flexible connectivity for data acquisition and process control systems.
- Compact and Robust Design: Built for benchtop or rack-mounted installation in laboratory and industrial setups.
- Wide Pressure Range: Accurately measures from atmosphere down to ultra-high vacuum, depending on connected gauges.
- Integrated Power Supply: Provides power to connected active gauges for simplified system wiring.
- User-Friendly Interface: Intuitive controls and menu system for quick calibration and configuration.
The D38661000 delivers the reliability and precision required for complex vacuum monitoring and control environments.
