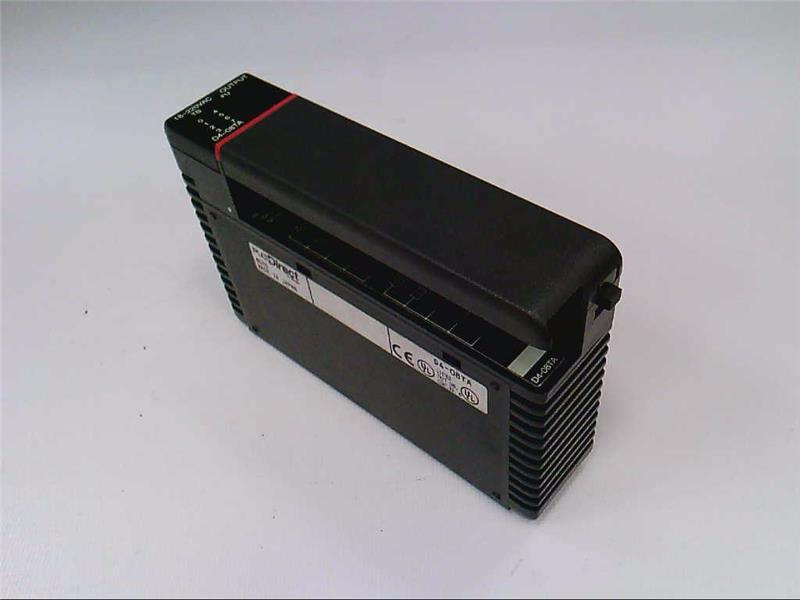

D4-08TA | Automation Direct Discrete Output Module

Description

The Automation Direct D4-08TA is a discrete output module designed for the DL405 series PLCs. It features 8 AC outputs, each capable of handling 12-240V, providing robust control for various industrial processes. The module supports high current loads and offers reliable performance in automation systems.

Technical Specifications

Information About D4-08TA

The Automation Direct D4-08TA is a discrete output module designed for use within the DirectLogic 405 (DL405) series of programmable logic controllers (PLCs). As a key component in industrial automation, this module plays a critical role in controlling and managing electrical outputs in various systems. With its robust design and reliable performance, the D4-08TA is engineered to meet the demands of complex industrial environments, offering a versatile and efficient solution for output control.

The D4-08TA discrete output module features eight output points, providing ample capacity for controlling multiple devices or processes simultaneously. These output points are designed to handle a nominal voltage range of 24-240 VAC, making the module suitable for a wide variety of applications. Whether used in manufacturing, process control, or energy management systems, the D4-08TA delivers consistent and reliable output control, ensuring that operations run smoothly and efficiently.

A key feature of the D4-08TA module is its two isolated output commons. Each common is designed to support up to four output points, offering flexibility in how the module can be configured and deployed within a system. This isolation enhances the safety and reliability of the module, reducing the risk of electrical interference or cross-talk between output points. This feature is particularly valuable in environments where precise and error-free operation is critical.

The load current capacity of the D4-08TA is rated at 2A per point, with a maximum of 5A per common. This current rating allows the module to control a wide range of devices, from small actuators and solenoids to larger relays and contactors. The module’s ability to handle varying load requirements makes it a versatile choice for engineers and system integrators looking to optimize their automation processes.

In terms of safety, the D4-08TA is equipped with non-replaceable fuses that protect the module and connected devices from overcurrent conditions. While these fuses are non-replaceable, their inclusion ensures that the module is safeguarded against electrical faults, enhancing the overall reliability of the system. This design choice minimizes the need for maintenance and reduces downtime, as the module is built to withstand demanding operating conditions.

The D4-08TA also comes with a removable terminal block, simplifying the process of wiring and installation. This feature allows for quick and easy connection of field wiring, reducing the time and effort required to set up or reconfigure the system. The removable terminal block also facilitates maintenance and troubleshooting, as it provides easy access to the module’s wiring connections without the need for extensive disassembly.

Compatibility with DirectSOFT programming software, version 4.0 or later, ensures that the D4-08TA can be seamlessly integrated into existing DL405 PLC systems. This software provides a user-friendly interface for programming and configuring the module, allowing operators to quickly and efficiently set up the desired output functions. The combination of intuitive software and robust hardware makes the D4-08TA an excellent choice for a wide range of industrial automation applications.

The D4-08TA module is designed with durability and long-term performance in mind. Its construction is tailored to withstand the challenges of industrial environments, including exposure to temperature fluctuations, vibrations, and electrical noise. This durability ensures that the module can operate reliably over extended periods, even in harsh conditions.

In conclusion, the Automation Direct D4-08TA discrete output module is a highly reliable and versatile component within the DirectLogic 405 PLC series. With its eight output points, broad voltage range, and isolated output commons, it offers the flexibility and control needed for complex industrial processes. The module’s robust design, coupled with features such as non-replaceable fuses and a removable terminal block, ensures safe and efficient operation in a variety of applications. Compatible with DirectSOFT programming software, the D4-08TA is an ideal choice for engineers and system integrators seeking to enhance their automation systems with reliable and efficient output control.
