D4-08TR | Automation Direct Relay Output Module

Description

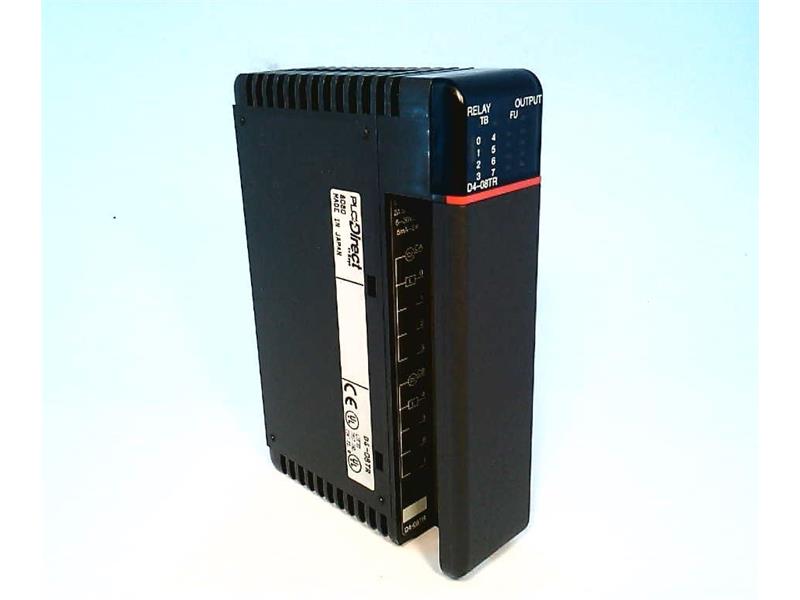

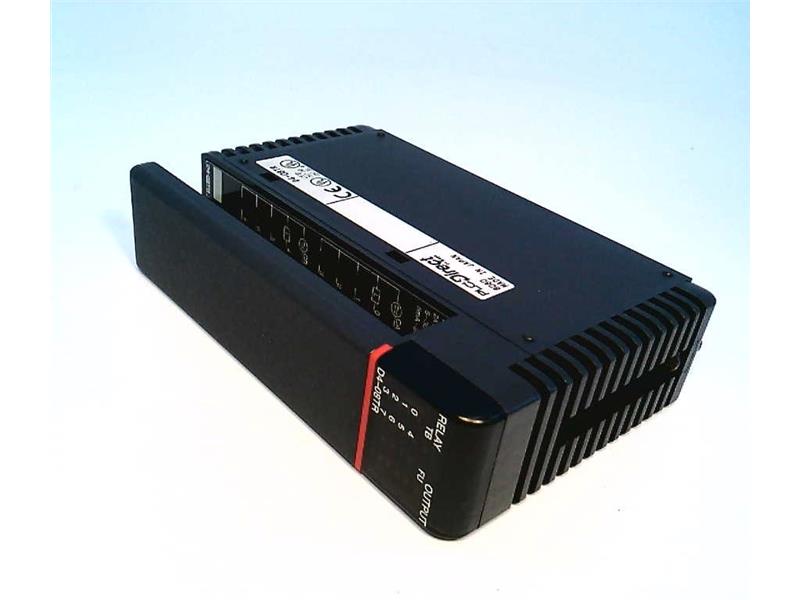

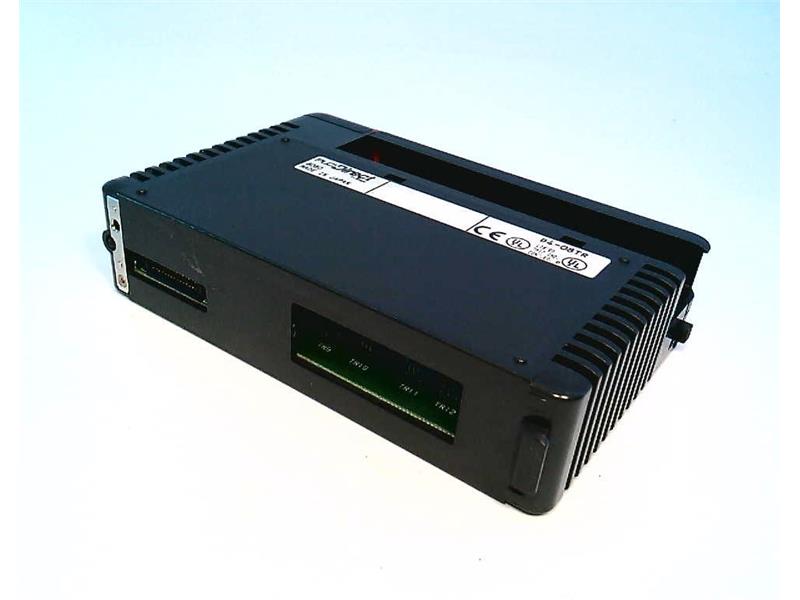

The D4-08TR is a relay output module designed by Automation Direct for the DL405 series. It features eight relay output points, suitable for interfacing with external devices. This module is engineered to provide reliable switching capabilities for various industrial control applications, ensuring compatibility with the DL405 PLC system.

Technical Specifications

Information About D4-08TR

The D4-08TR is a relay output module designed by Automation Direct, specifically for integration into the DL405 series PLC systems. Categorized under PLCs and Machine Control, this VDC Logic I/O Module is engineered to provide reliable and efficient control over external devices in various industrial automation applications. Weighing 0.28 lbs, the D4-08TR is compact yet robust, offering essential functionality while maintaining a lightweight profile for easy installation and integration within control systems.

This module features eight output points configured as Form A relay outputs, providing straightforward on/off switching capabilities. The Form A relay outputs are suitable for controlling a wide range of external devices, such as solenoids, indicators, and other electromechanical components, making the D4-08TR an ideal choice for applications requiring reliable switching control. Each of the eight outputs can be individually controlled, allowing for precise management of connected devices within the automation system.

The D4-08TR operates within a versatile voltage range of 6-24 VDC or 6-240 VAC, offering flexibility in powering the connected devices. This wide voltage range ensures compatibility with various industrial control environments, accommodating different power supply configurations and requirements. The module's ability to handle both DC and AC voltages makes it adaptable to diverse application needs, supporting seamless integration into existing systems without requiring extensive modifications.

Equipped with two isolated commons, the D4-08TR provides enhanced electrical isolation and noise reduction, which is critical for maintaining signal integrity and preventing interference between different output groups. Each common serves four output points, allowing for structured organization and segregation of output channels. The isolation between commons ensures that signals can be controlled independently, minimizing the risk of electrical noise and potential cross-talk that could disrupt system operation.

The current rating per output point is 2A, providing sufficient capacity to drive standard industrial loads. With a current rating of 5A per common, the D4-08TR can manage multiple outputs simultaneously without exceeding its operational limits. This capability is crucial for applications where multiple devices need to be controlled at the same time, ensuring that the module can handle the required load without compromising performance or safety.

A key feature of the D4-08TR is its inclusion of a removable terminal block, which simplifies wiring and installation. The removable terminal block allows for easy connection and disconnection of wires, facilitating maintenance, and reducing downtime during module replacement or system upgrades. This feature is particularly beneficial in industrial settings where quick and efficient maintenance is essential to maintaining continuous operation and minimizing production disruptions.

The D4-08TR is designed to be a reliable component within the DL405 series, offering robust relay output capabilities to enhance the overall functionality of the PLC system. Its construction is tailored to meet the demands of industrial environments, providing durability and long-term reliability. The module's compact design allows it to fit comfortably within control panels, supporting efficient use of space and enabling the installation of additional modules or components as needed.

In summary, the Automation Direct D4-08TR is a versatile and efficient relay output module designed to meet the needs of various industrial automation applications. With its eight Form A relay outputs, wide voltage range, isolated commons, and current handling capabilities, it provides robust control over external devices, ensuring reliable operation and enhanced system performance. The inclusion of a removable terminal block further simplifies installation and maintenance, making the D4-08TR an ideal choice for integration into DL405 series PLC systems. Its adaptability, ease of use, and reliable switching capabilities make it a valuable asset in any industrial control setup, supporting precise and efficient management of automation processes.
