D4-16NE3 | Automation Direct 24VDC Discrete Output Module

Description

The D4-16NE3 by Automation Direct is a 16-point Discrete Output Module designed for 24VDC applications within PLC systems. It enables reliable control of digital devices, such as relays or solenoids, ensuring precise execution of output commands in industrial automation. This module is ideal for managing high-density output tasks efficiently.

Technical Specifications

Information About D4-16NE3

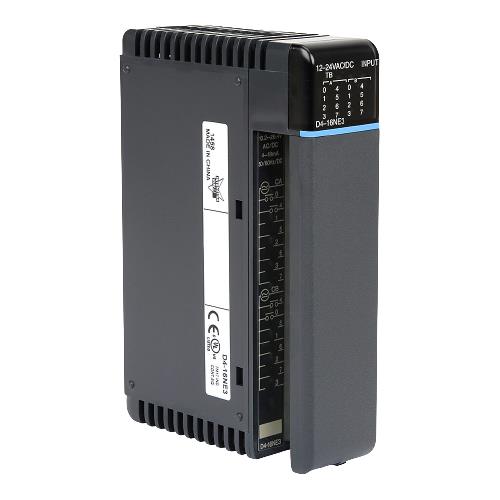

The Automation Direct D4-16NE3 is a discrete input module designed for the DL405 series, tailored to provide reliable digital signal processing in industrial automation environments. Engineered with versatility and efficiency in mind, this module is well-suited for various applications where precise control and monitoring of discrete inputs are required.

The D4-16NE3 module is equipped with 16 discrete input points, enabling it to efficiently manage multiple digital signals from various field devices such as sensors, switches, and other input sources. Each input point can accommodate a nominal input voltage range of 12-24 VAC/VDC, making the module highly adaptable to different power configurations and input signal types. This flexibility ensures that the D4-16NE3 can easily integrate into existing systems, regardless of whether the inputs are sourced from AC or DC devices.

One of the key features of the D4-16NE3 is its capability to support both sinking and sourcing input types. This dual functionality allows the module to be compatible with a wide array of devices and wiring configurations. Sinking inputs typically involve the module providing a return path for current flow, while sourcing inputs have the module supplying current to the connected devices. This versatility in input types ensures that the D4-16NE3 can be deployed in diverse applications without requiring additional hardware modifications.

The module is designed with two isolated input commons, each serving eight input points. This isolation is crucial in preventing electrical noise, ground loops, or faults from propagating through the system, thereby enhancing the reliability and accuracy of the input signals. Isolated commons help protect the integrity of the control system, ensuring that issues in one part of the system do not affect other inputs, thus maintaining overall system stability and reducing the risk of downtime.

While the D4-16NE3 does not feature fast response capability, it is still more than adequate for most standard discrete input applications, where high-speed signal processing is not critical. The module’s performance is optimized for typical industrial environments, where consistent and reliable signal detection is essential for effective control and monitoring.

Installation and maintenance of the D4-16NE3 are simplified by its inclusion of a removable terminal block. This design feature allows for quick and easy wiring, reducing installation time and minimizing the potential for errors during setup. The removable terminal block also facilitates straightforward maintenance and module replacement, ensuring that downtime is minimized during system updates or repairs.

The D4-16NE3 is fully compatible with DirectSOFT programming software version 4.0 or later, a widely-used programming environment known for its intuitive interface and comprehensive configuration capabilities. This compatibility ensures that users can easily configure and program the module to meet specific application requirements, streamlining the setup process and enabling efficient integration into new or existing systems.

Designed to withstand the rigors of industrial environments, the D4-16NE3 module is built to deliver dependable performance even under challenging conditions. Its robust construction and reliable operation make it a preferred choice for applications ranging from manufacturing and process control to building automation and machine monitoring.

In summary, the Automation Direct D4-16NE3 discrete input module offers a reliable and flexible solution for managing digital inputs in a variety of industrial applications. With its 16 input points, support for both sinking and sourcing inputs, isolated input commons, and user-friendly installation features, the D4-16NE3 is an excellent choice for any DL405 series-based automation system. Whether integrated into a new setup or retrofitted into an existing system, this module provides the reliability and versatility needed to support effective and efficient control operations, ensuring consistent performance and long-term system stability.
