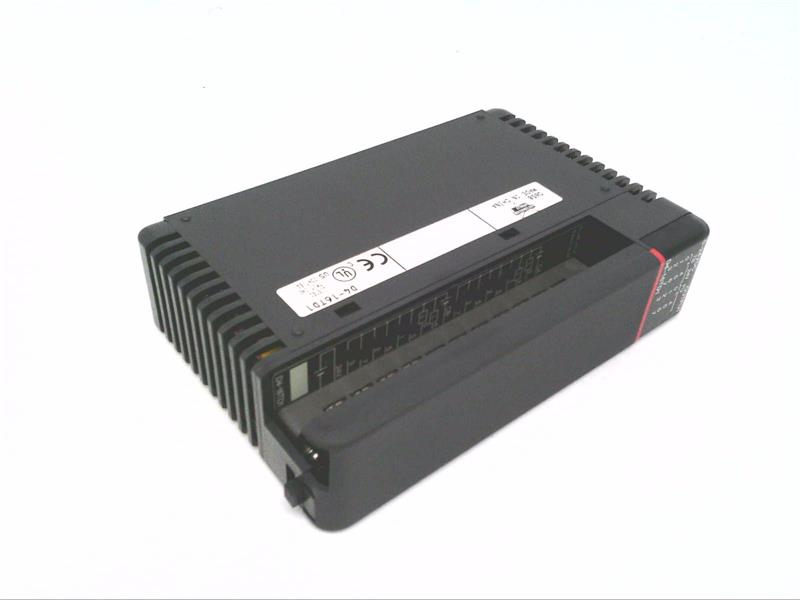

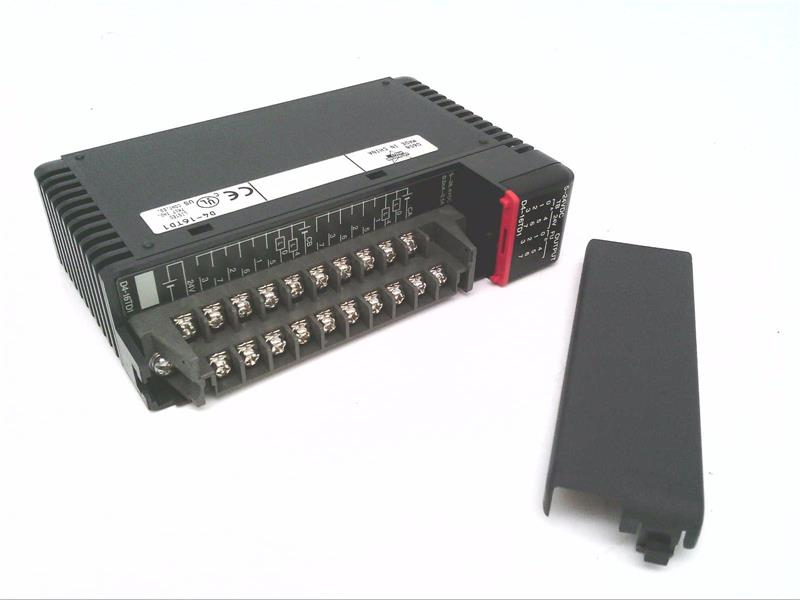

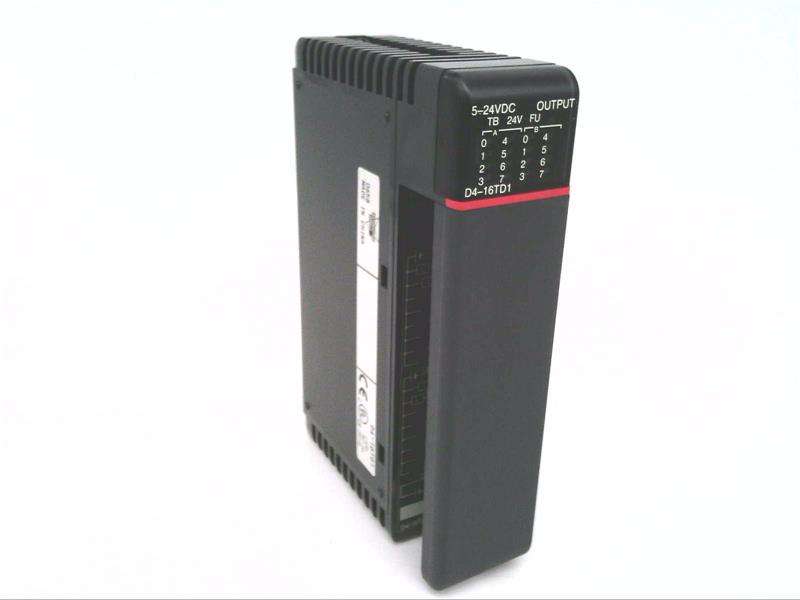

D4-16TD1 | Automation Direct Discrete Output Module

Description

The D4-16TD1 is a discrete output module manufactured by Automation Direct. It provides 16 output points for controlling external devices in automation systems. This module is designed for reliable operation in PLC configurations, supporting efficient switching and control of connected equipment.

Technical Specifications

Information About D4-16TD1

The D4-16TD1 is a discrete output module from Automation Direct, designed specifically for use within PLCs and machine control systems. It falls under the VDC Logic I/O Module subcategory, making it an essential component for managing and controlling digital signals in industrial automation applications. As a part of the DL405 series, this output module is engineered to provide reliable and efficient performance, ensuring seamless integration into various automation systems.

The D4-16TD1 is an output module designed to manage discrete signals, making it suitable for applications where binary on/off control is required. This module features 16 output points, providing extensive capacity to control multiple devices or processes simultaneously. Each output point is designed to handle a nominal output voltage ranging from 5 to 24 VDC, making it versatile enough to interface with a wide range of external devices, such as relays, indicators, and other digital control elements. The broad voltage range ensures compatibility with different types of equipment, enhancing the flexibility and adaptability of the control system.

This module employs sinking output types, which means it switches the connection to the ground to complete the circuit and activate the connected load. Sinking outputs are commonly used in industrial automation for their simplicity and effectiveness in controlling devices. The use of sinking outputs ensures that the D4-16TD1 can reliably manage the flow of electrical current, providing consistent and accurate control over the connected devices. This output configuration is well-suited for interfacing with other components that require a common ground connection, simplifying the wiring and reducing the potential for wiring errors.

The D4-16TD1 is equipped with two non-isolated output commons, each of which supports up to eight output points. This arrangement facilitates organized and efficient wiring, allowing for a structured layout that minimizes the complexity of connections. The use of commons helps streamline the wiring process, making it easier to install and maintain the module within a control panel. By providing two separate commons, the D4-16TD1 also offers the flexibility to segregate outputs based on different functions or processes, enhancing the modularity and organization of the control system.

Each output point on the D4-16TD1 is capable of handling a load current of up to 0.5A, providing sufficient power for a variety of connected devices. This current rating ensures that the module can drive loads such as small motors, solenoids, and other actuators without the risk of overloading the outputs. Additionally, each common can support a maximum load current of 3A, allowing multiple output points to operate concurrently while sharing the current capacity. This capability is crucial in applications where multiple devices need to be controlled simultaneously, ensuring that the module can handle the combined load without compromising performance or reliability.

The D4-16TD1’s design emphasizes reliability and durability, ensuring that it can withstand the demanding conditions typical of industrial environments. It is constructed from high-quality materials that provide resistance to electrical noise, temperature variations, and mechanical stresses. This robust construction helps prevent operational failures and extends the lifespan of the module, reducing maintenance requirements and enhancing the overall reliability of the automation system. The module's ability to maintain consistent performance under challenging conditions makes it a dependable choice for critical industrial applications.

Installation and integration of the D4-16TD1 are straightforward, thanks to its standard form factor and compatibility with DL405 series systems. The module fits easily into existing PLC racks, making it suitable for both new installations and upgrades to existing systems. The standardization of its design ensures that it can be quickly and efficiently incorporated into various control panel configurations, minimizing installation time and reducing downtime during system upgrades or maintenance.

The D4-16TD1 is ideal for a wide range of industrial applications, including manufacturing, material handling, process control, and building automation. Its capability to provide discrete output control allows it to be used in scenarios where precise switching of devices is necessary for maintaining process integrity and operational efficiency. By facilitating accurate control over connected devices, the D4-16TD1 contributes to optimized process performance, improved safety, and reduced operational costs.

In summary, the Automation Direct D4-16TD1 is a high-quality discrete output module designed to provide reliable control of up to 16 output points within PLC systems. With its 5-24 VDC nominal output voltage range, sinking output configuration, and dual commons, the D4-16TD1 offers versatility and flexibility for a wide range of industrial applications. Its robust construction and compatibility with the DL405 series ensure that it can deliver consistent performance in demanding environments, making it an essential component for enhancing the functionality and efficiency of industrial automation systems.
