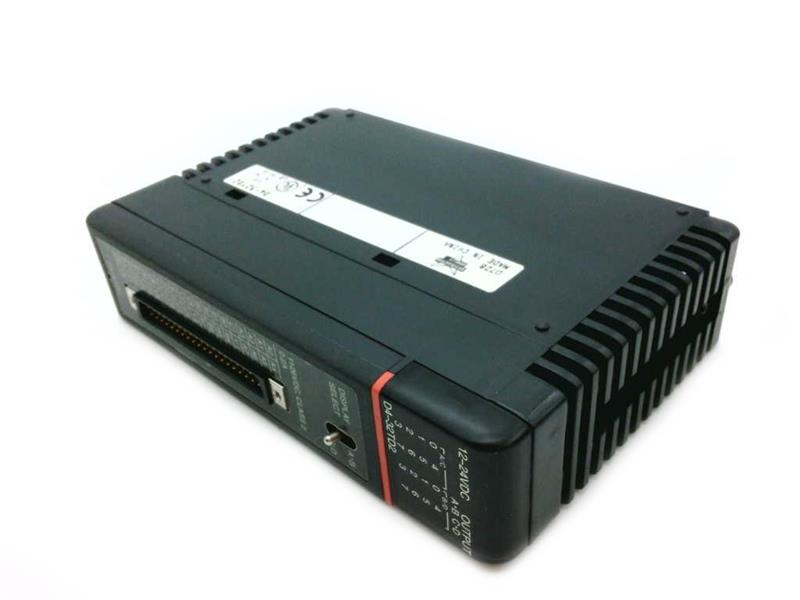

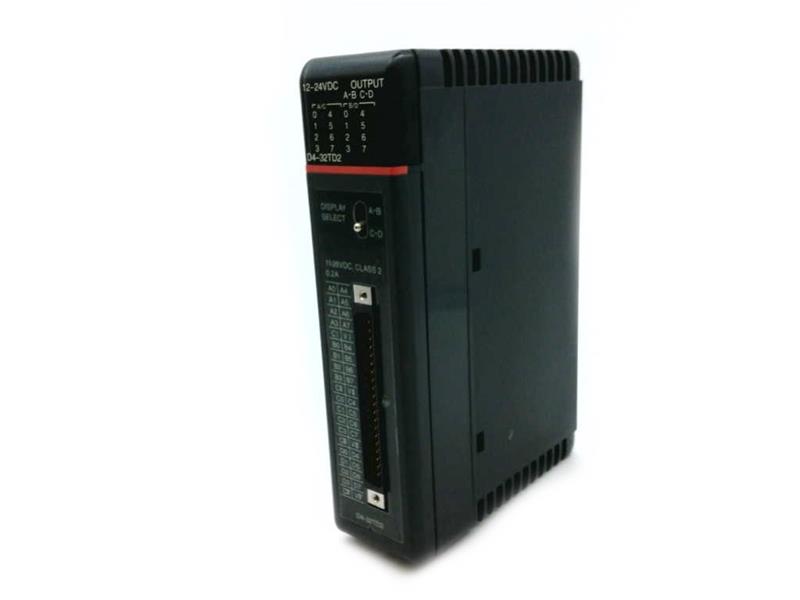

D4-32TD2 | Automation Direct Discrete Output Module

Description

The D4-32TD2 is a discrete output module from Automation Direct, designed for use with DirectLogic 405 series PLCs. It provides 32 DC output points, supporting sourcing-type outputs. The module operates at 12-24VDC and is suitable for controlling various industrial automation devices. It is built for reliable integration in machine control systems requiring multiple discrete outputs.

Technical Specifications

Information About D4-32TD2

The D4-32TD2 discrete output module is a versatile component in the field of programmable logic controllers (PLCs), specifically designed for integration into machine control systems. This module is part of Automation Direct’s DirectLogic 405 series and is used in industrial applications requiring precise and reliable control of output devices. Its primary function is to convert digital signals into output commands, providing a crucial interface between the PLC and various external devices, such as actuators, lights, and other automation equipment.

The D4-32TD2 features 32 discrete output points, which offer a significant degree of flexibility in automation setups. These 32 points are divided into four isolated commons, with eight output points allocated per common. This configuration is ideal for industrial environments that require the isolation of different groups of output devices to ensure electrical separation and prevent interference. The module’s sourcing output type means that it provides a positive DC voltage to the connected load when an output is activated, which is compatible with various industrial devices and simplifies wiring in many control systems.

The voltage range for the D4-32TD2 output module is 12-24 VDC, which is standard in many industrial automation applications. This voltage range provides compatibility with a wide range of DC-powered devices, ensuring reliable operation in diverse automation environments. The ability to work within this voltage range makes the D4-32TD2 suitable for controlling solenoids, relays, and other devices that operate on low-voltage DC power.

One of the critical features of this module is its current-handling capability. Each output point can handle up to 0.2A, allowing it to manage a variety of low-power devices. Additionally, the current per common is rated at 1A, providing robust support for multiple output points within each common. The module’s total current capacity is 4A per module, which ensures that it can handle a substantial number of devices without overloading the system. This current capacity is particularly important in industrial applications where reliability and continuous operation are essential.

The design of the D4-32TD2 emphasizes ease of installation and integration within existing control systems. The module’s compact form factor allows it to be mounted easily in control cabinets, and its terminal block connections simplify the wiring process, reducing installation time. Additionally, the module’s structure and layout support straightforward troubleshooting and maintenance, as the four isolated commons enable the separation of output points into distinct groups. This feature is particularly useful in complex automation systems where different sections of machinery or processes require independent control or monitoring.

In terms of durability and longevity, the D4-32TD2 module is built to meet the rigorous demands of industrial environments. The module is designed to withstand electrical noise, temperature fluctuations, and vibration, ensuring reliable performance even in challenging conditions. This durability is critical in manufacturing plants, process control environments, and other automation-intensive industries where equipment must operate continuously and efficiently.

The sourcing output type used in the D4-32TD2 module is well-suited for industrial applications where the positive voltage needs to be applied to the load. This output configuration simplifies the connection to devices that require a positive voltage source and is widely used in various automation setups. The module's sourcing configuration ensures compatibility with common DC-powered devices and simplifies the wiring scheme in many applications.

The division of the 32 output points into four isolated commons further enhances the module’s flexibility. Each common can be connected to a different electrical ground or reference point, allowing the module to control devices with differing voltage levels or grounding schemes. This feature is especially useful in applications where different sections of a system need to be electrically isolated from each other, reducing the risk of cross-interference and improving overall system reliability.

With a current rating of 0.2A per point and 1A per common, the D4-32TD2 module provides sufficient power capacity to handle a wide range of output devices, from small solenoids and relays to indicator lights and other control elements. The total current capacity of 4A per module ensures that the D4-32TD2 can manage multiple devices simultaneously, making it suitable for use in large-scale automation systems that require the control of numerous outputs from a single module.

Automation Direct’s D4-32TD2 module is designed to integrate seamlessly with the DirectLogic 405 series PLCs, providing users with a scalable and customizable solution for their automation needs. Its 32-point output capacity, combined with isolated commons and flexible voltage and current ratings, makes it an ideal choice for a wide variety of industrial applications. Whether used in manufacturing, process control, or other machine control environments, the D4-32TD2 provides the performance, reliability, and ease of use required to maintain efficient and stable operation.

In summary, the D4-32TD2 discrete output module offers a high degree of flexibility, durability, and reliability for industrial control systems. With its 32 output points, isolated commons, and robust current handling capabilities, this module is well-suited for a variety of industrial automation applications. Its ability to manage multiple devices across isolated commons ensures efficient control of complex systems, while its sourcing output type simplifies wiring and device compatibility. Designed to withstand the challenges of industrial environments, the D4-32TD2 provides a dependable solution for controlling a wide range of automation devices.
