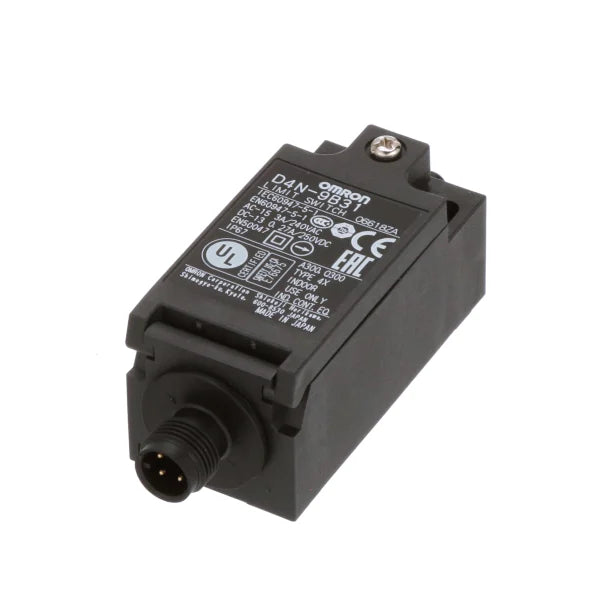

Product Description P/N: D4N-9B31
Description
The Omron Automation D4N-9B31 is a snap action limit switch designed to enhance safety in various industrial applications. It features 2 normally closed (NC) contacts and operates in an On-Mom configuration. The switch has a rating of 10A for AC and 2.5A for DC, with voltage capacities of 120V AC and 125V DC respectively. This model represents an upgraded version of the well-known D4D series, offering a comprehensive range of safety limit switches that comply with international standards.
Technical Specifications
|
Part # |
D4N-9B31 |
|
Manufacturer |
OMRON |
|
Category |
Sensors & Switches |
|
Subcategory |
Limit Switch |
|
Actuator |
Plunger |
|
Operating Mechanism |
Slow action |
|
Contact Form |
2NC |
|
Degree of Protection |
IP67 |
|
Frequency |
50/60 Hz |
|
Load |
General load/Micro load |
|
Conduit |
M12 connector |
|
Number of Conduit |
1 |
|
Ambient Temperature |
Operating: -30 to 70 ℃ (with no icing) |
|
Ambient Humidity |
95% RH max. |
|
Permissible Operating Frequency |
30 operations / 1 minute max. |
|
Contact Resistance (Initial) |
25 mΩ max. |
|
Insulation Resistance |
100 MΩ min. |
|
Impulse Withstand Voltage |
Between each terminal of the same polarities: 2.5 kV, Between each terminal of the different polarities: 4 kV, Between each terminal and non-live-metallic part: 6 kV |
|
Durability |
Electrical: 300,000 operations min. (10 A at 250 VAC), 500,000 operations min. (3 A at 250 VAC), Mechanical: 15,000,000 operations min. |
|
Vibration Resistance |
Malfunction: 10 to 55 Hz, 0.75 mm single amplitude |
|
Shock Resistance |
Destruction: 1000 m/s2, Malfunction: 300 m/s2 |
|
Pollution Degree |
3 (EN60947-5-1) |
|
Classification of Protection against Electric Shock |
Class II (Double insulation) |
|
Operating Force (OF) |
Standard value 6.5 N max. |
|
Release Force (RF) |
Standard value 1.5 N min. |
|
Pre-Travel (PT) |
Standard value 2 mm max. |
|
Over-Travel (OT) |
Standard value 4 mm min. |
|
Operating Position (OP) |
Standard value 18.2±0.5 mm |
|
Total Travel (TT) |
Reference value 6 mm |
|
Direct Opening Force |
Standard value 20 N min. |
|
Direct Opening Travel |
Standard value 3.2 mm min. |
Information About D4N-9B31
The Omron Automation D4N-9B31 is a snap-action limit switch designed to enhance safety in various applications. This switch features a double-pole, normally closed (2NC) configuration, providing reliable performance for safety-related functions. The operating mode is momentary (On-Mom), allowing the switch to activate only during the manual application of force.
With a robust design, the D4N-9B31 is engineered to handle diverse electrical loads. It is rated for a maximum current of 10A AC and 2.5A DC, making it suitable for a range of electrical circuits. The switch accommodates voltages up to 120V AC and 125V DC, ensuring compatibility with common power supply specifications.
One of the notable aspects of the D4N-9B31 is its upgraded features in comparison to its predecessor, the D4D. These enhancements aim to meet and exceed international safety standards, making it a reliable choice for applications where safety is paramount.
The switch is crafted to provide reliable and consistent performance, contributing to the overall safety and efficiency of the systems it is integrated into. Its upgraded design ensures compliance with industry-specific safety regulations and standards, offering peace of mind to users and operators.
As a component within the safety limit switch lineup, the D4N-9B31 aligns with international standards, emphasizing its versatility and applicability across various industries. This adherence to standards underscores its compatibility with a wide range of safety-related applications, providing a comprehensive solution for diverse industrial needs.
