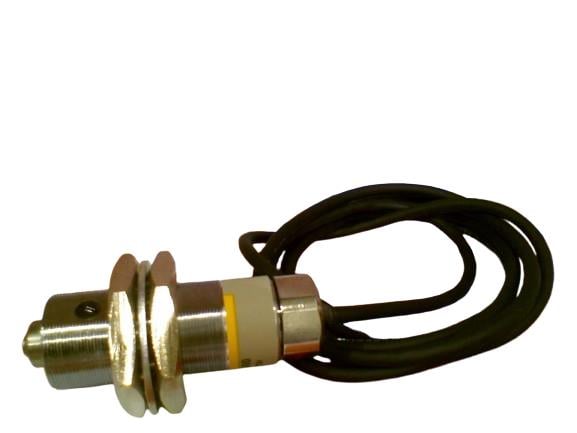

D5A-7400 | Omron D5A Series High-Precision Pin Plunger Switch SPST 12 VDC / 24 VAC IP67
- Regular price
- $437.00
- Sale price
- $437.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: D5A-7400
Description
The Omron D5A-7400 is a high-precision plunger-type limit switch designed for fine mechanical detection and positioning applications. With a pin plunger actuator and a precise ON-(OFF) snap action mechanism, it delivers consistent and repeatable operation in small-scale control systems. Its IP67-rated housing ensures protection against dust and moisture, making it suitable for industrial environments requiring reliable contact performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | D5A-7400 |
| Subcategory | Snap Action Switches |
| Series | D5A Series |
| Type | High-Precision Plunger Switch |
| Contact Form | SPST (Single-Pole Single-Throw) |
| Switch Function | ON-(OFF) Momentary Action |
| Actuator Type | Pin Plunger |
| Operating Force | 2.45 N |
| Rated Current | 10 mA |
| Rated Voltage (DC) | 12 VDC |
| Rated Voltage (AC) | 24 VAC |
| Termination Style | Screw Terminals |
| Mounting Type | Chassis Mount |
| Housing Material | Metal / High-Density Resin |
| Protection Rating | IP67 |
| Illumination | Non-Illuminated |
| Operating Temperature Range | -20°C to +75°C |
| Storage Temperature Range | -30°C to +80°C |
| Mechanical Durability | 10 million operations (typical) |
| Electrical Durability | 100,000 operations (at rated load) |
| Response Time | ≤ 10 ms |
| Compliance | CE, UL, RoHS |
| Weight | Approx. 0.18 kg (6.42 oz) |
Information About D5A-7400
The D5A-7400 belongs to Omron’s D5A Series, a family of ultra-precise limit and plunger switches engineered for accurate detection in automation, robotics, and tooling systems. This model features a single-pole single-throw (SPST) contact configuration and supports low-voltage operation at 12 VDC or 24 VAC. The plunger-style actuator provides a sharp and repeatable switching response with an operating force of 2.45 N, making it ideal for applications requiring high mechanical accuracy. Designed for chassis mounting and equipped with screw terminals, the D5A-7400 combines ease of installation with Omron’s long-standing reputation for quality and durability.
Key Features:
- High-Precision Design: Provides repeatable mechanical detection for fine control applications.
- Pin Plunger Actuator: Ensures sharp, accurate switching operation.
- Compact Form Factor: Suitable for integration in tight industrial or robotic systems.
- Low-Voltage Operation: Supports both 12 VDC and 24 VAC supply for control circuits.
- Durable Contacts: SPST configuration with reliable ON-(OFF) snap action response.
- Chassis Mount Construction: Enables secure panel or equipment installation.
- IP67 Protection: Sealed design resists dust, oil, and water exposure.
- Omron Reliability: Proven performance in high-precision limit and positioning applications.
The D5A-7400 delivers the reliability and precision required for mechanical detection, position sensing, and automation control tasks in demanding industrial environments.
