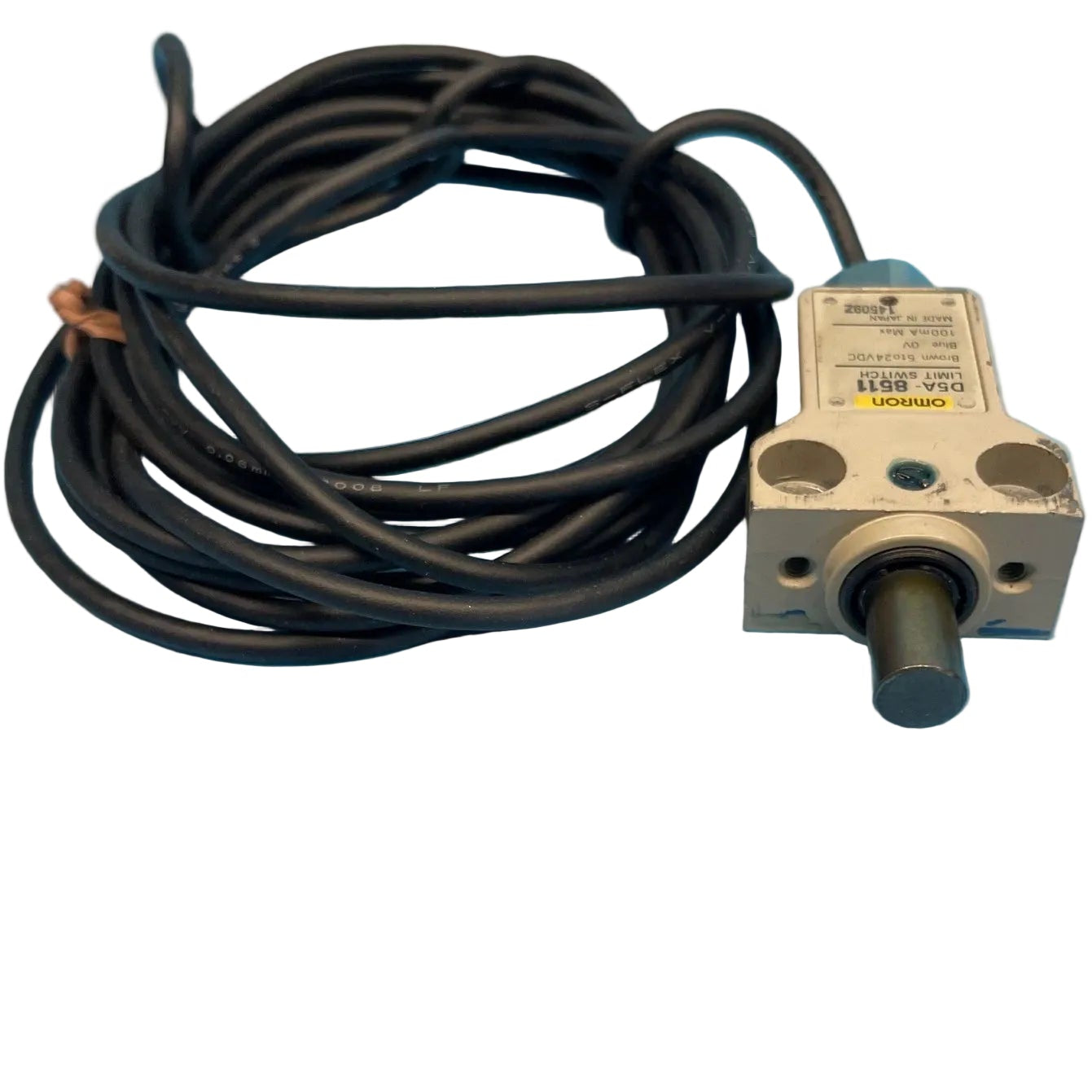

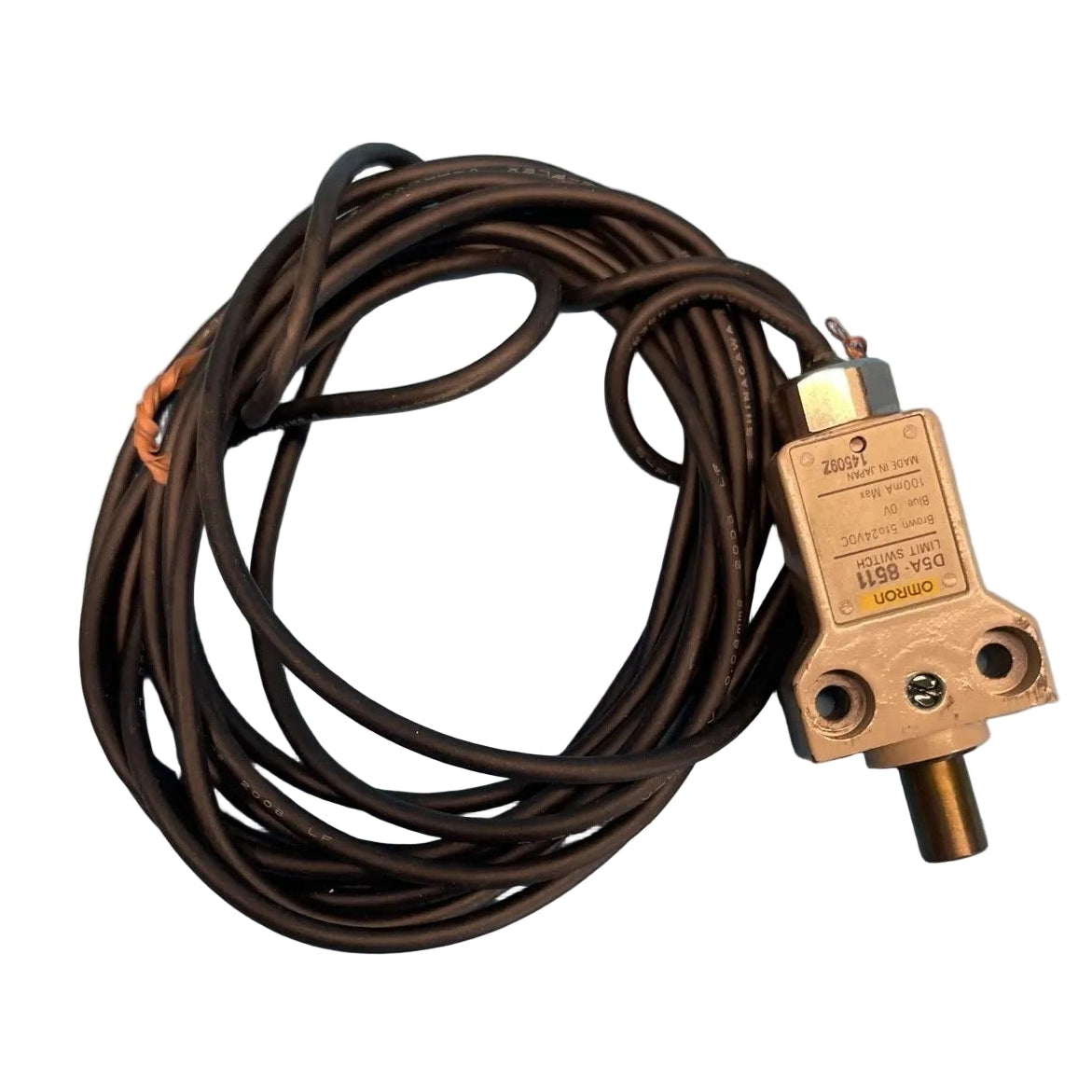

D5A-8511 | Omron D5A Series High Precision Pin Plunger Limit Switch
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D5A-8511
Description
The Omron D5A-8511 is a high-precision snap action limit switch designed for accurate position detection in industrial automation and machinery. It features a pin plunger actuator and SPST switching configuration for reliable signal switching at low current levels. This switch is commonly used in applications requiring precise motion sensing and repeatable mechanical actuation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | D5A-8511 |
| Subcategory | Switch |
| Series | D5A |
| Switch Type | Snap action limit switch |
| Contact Configuration | SPST |
| Switch Function | ON-(OFF) |
| Actuator Type | Pin plunger |
| Operating Force | 3.9 N |
| Rated Voltage | 24 VAC / 12 VDC |
| Current Rating | 10 mA |
| Mounting Type | Chassis mount |
| Termination Style | Solder lug |
| Ingress Protection | IP67 |
| Operating Temperature | -20°C to 75°C |
| Mechanical Life | 10,000,000 cycles |
| Electrical Life | 1,000,000 cycles |
| Weight | 3.00 lbs |
Information About D5A-8511
The D5A-8511 is part of the Omron D5A series of high-precision limit switches designed for accurate detection of mechanical movement in industrial equipment. This switch uses a snap action mechanism and pin plunger actuator to ensure consistent switching performance with minimal differential travel. Its sealed IP67-rated construction protects internal components from dust and moisture, enabling operation in demanding environments. The device supports low-voltage control circuits and provides dependable switching performance for precision automation systems.
Key Features:
-
High Precision Switching: Designed for applications requiring accurate and repeatable position detection.
-
Pin Plunger Actuator: Provides reliable mechanical actuation with minimal movement.
-
SPST Contact Configuration: Single-pole single-throw switching for control signal applications.
-
Low Voltage Operation: Rated for 24 VAC and 12 VDC control circuits.
-
Compact Chassis Mount Design: Allows installation in machinery and automation equipment.
-
IP67 Protection Rating: Dust-tight and waterproof enclosure for industrial environments.
-
Long Mechanical Life: Rated for up to 10 million mechanical operations.
-
Snap Action Mechanism: Provides fast and consistent switching response.
The D5A-8511 delivers the reliability and precision required for position detection and motion control in industrial automation systems.
