D7412GV4 | Bosch G Series Control Panel Security Board
- Regular price
- $235.00
- Sale price
- $235.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: D7412GV4
Description

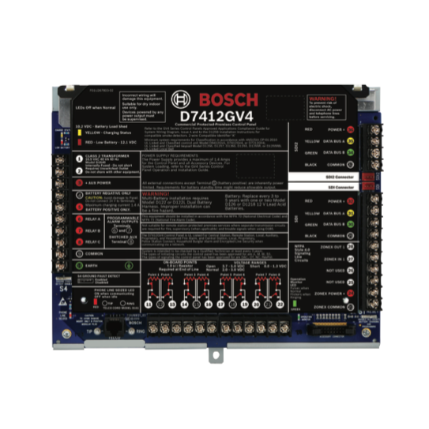

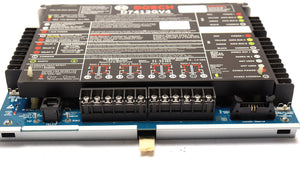

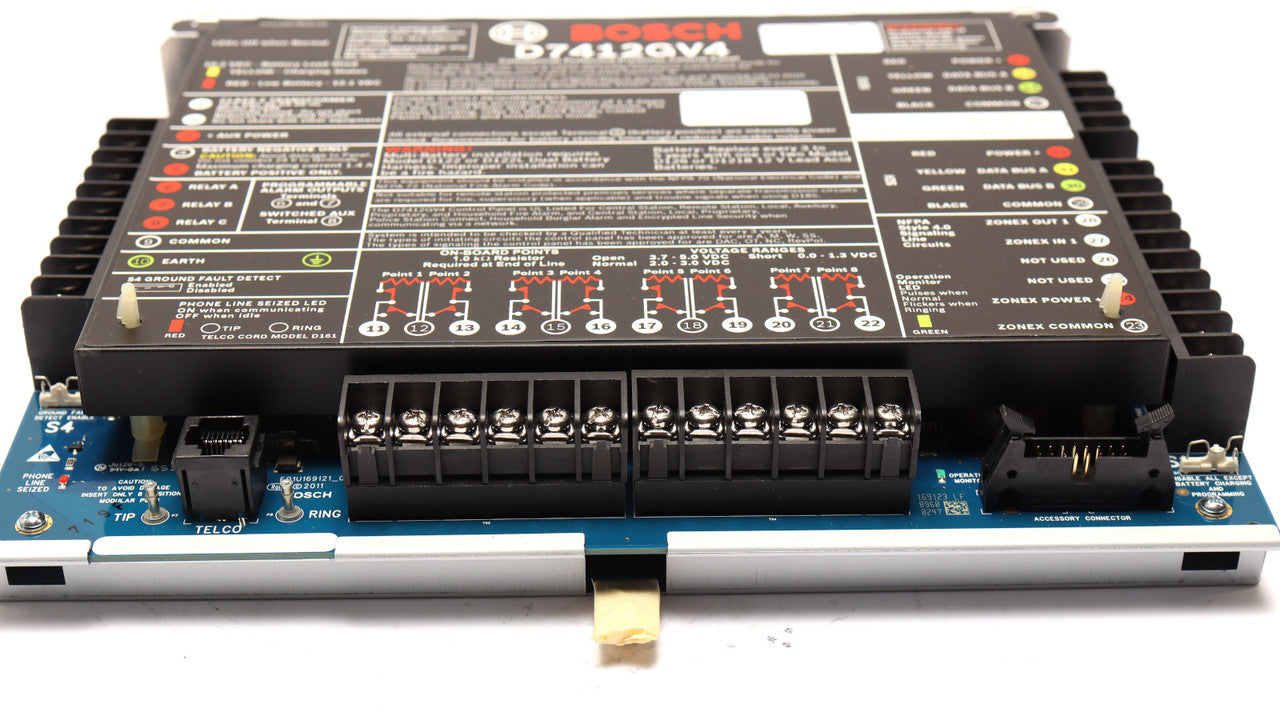

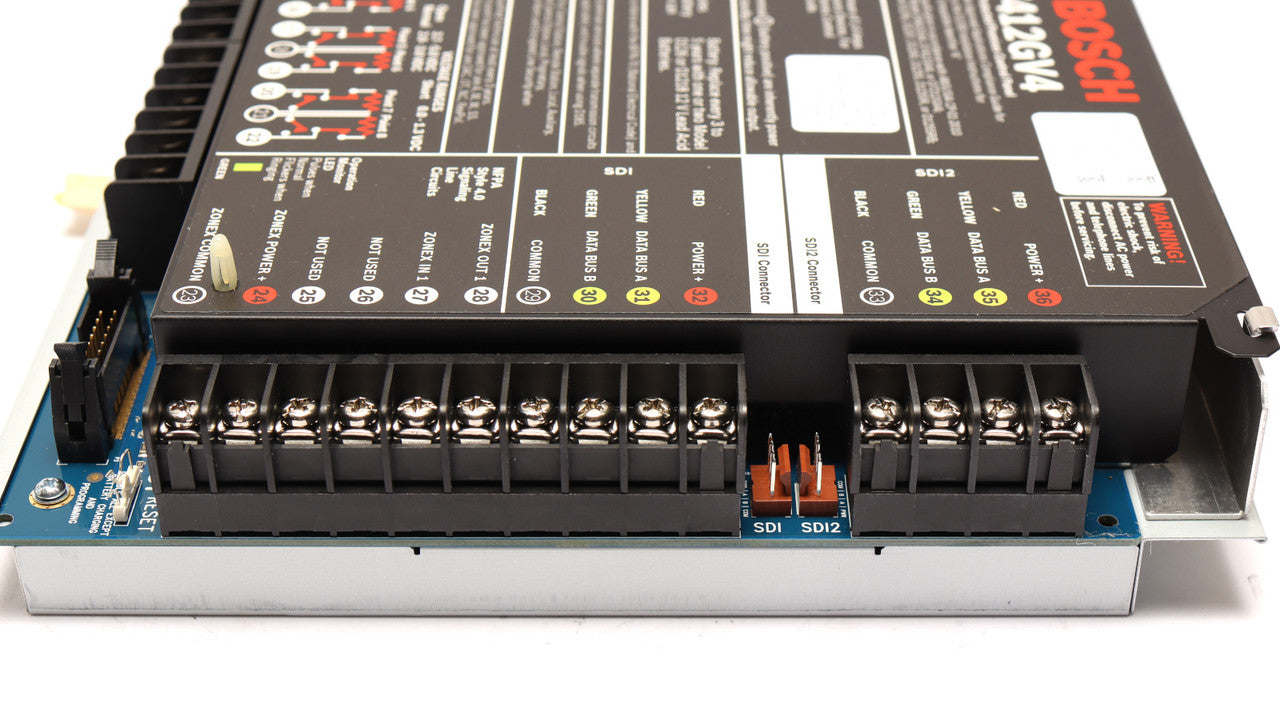

The Bosch D7412GV4 is a G Series control panel security board that integrates intrusion, fire, and access control into one system. It supports up to 75 addressable points and can be divided into 8 programmable areas, with built-in communication over PSTN, IP, or cellular networks.
Technical Specifications
Condition | New/Never Used Surplus |
Brand | Bosch |
Category | Security & Fire Systems |
Part Number | D7412GV4 |
Subcategory | Control Panels |
Series | G Series |
Supported Points | Up to 75 individually identified |
Programmable Areas | 8 independent areas with perimeter and interior options |
Communication Options | PSTN, IP network, cellular (via four programmable route groups) |
Integration | Intrusion, fire, and access control in a single platform |
Keypad Compatibility | Touchscreen, ATM-style, or LED keypads |
Networking | Conettix IP-based alarm transport and control |
Firmware | Supports optional GV4 version 2.xx firmware upgrade |
Dimensions | Standard control board size (cabinet dependent) |
Weight | 16 lbs (7.25 kg) |
Compliance | UL, NFPA, and CSFM listed for security and fire applications |
Information About D7412GV4
The D7412GV4 is part of Bosch’s advanced G Series and is engineered to consolidate intrusion, fire, and access control into one versatile system. With support for up to 75 points, the panel can be programmed to cover 8 distinct areas, offering customizable security coverage. Its integrated communicator allows event reporting over PSTN, IP networks, or cellular routes, providing redundancy and reliable alarm transmission. Operators can choose from multiple keypad styles, including touchscreen, ATM-style, or LED, for system management. Designed for scalability, the D7412GV4 also supports firmware upgrades to extend capabilities for evolving security needs.
Key Features:
- Multi-System Integration: Combines intrusion, fire, and access control into one unified panel.
- 75 Addressable Points: Configurable to suit small to mid-sized installations.
- Eight Programmable Areas: Supports separation of zones with perimeter and interior protection.
- Flexible Communication: Routes alarms via PSTN, IP, or cellular networks with programmable groups.
- Conettix IP Compatibility: Provides secure, high-speed alarm transport over wired or wireless links.
- User Interface Options: Works with touchscreen, ATM-style, and LED keypads for flexible operation.
- Firmware Upgradable: Optional GV4 v2.xx firmware enhances functionality and longevity.
- Robust Reporting: Built-in communicator ensures multiple paths for event transmission.
- Reliable Redundancy: Four route groups ensure continuous connectivity for alarms and events.
- UL/NFPA Certified: Complies with fire and security standards for safety-critical applications.
The D7412GV4 delivers the reliability and precision required for integrated fire, intrusion, and access control across commercial and institutional facilities.
