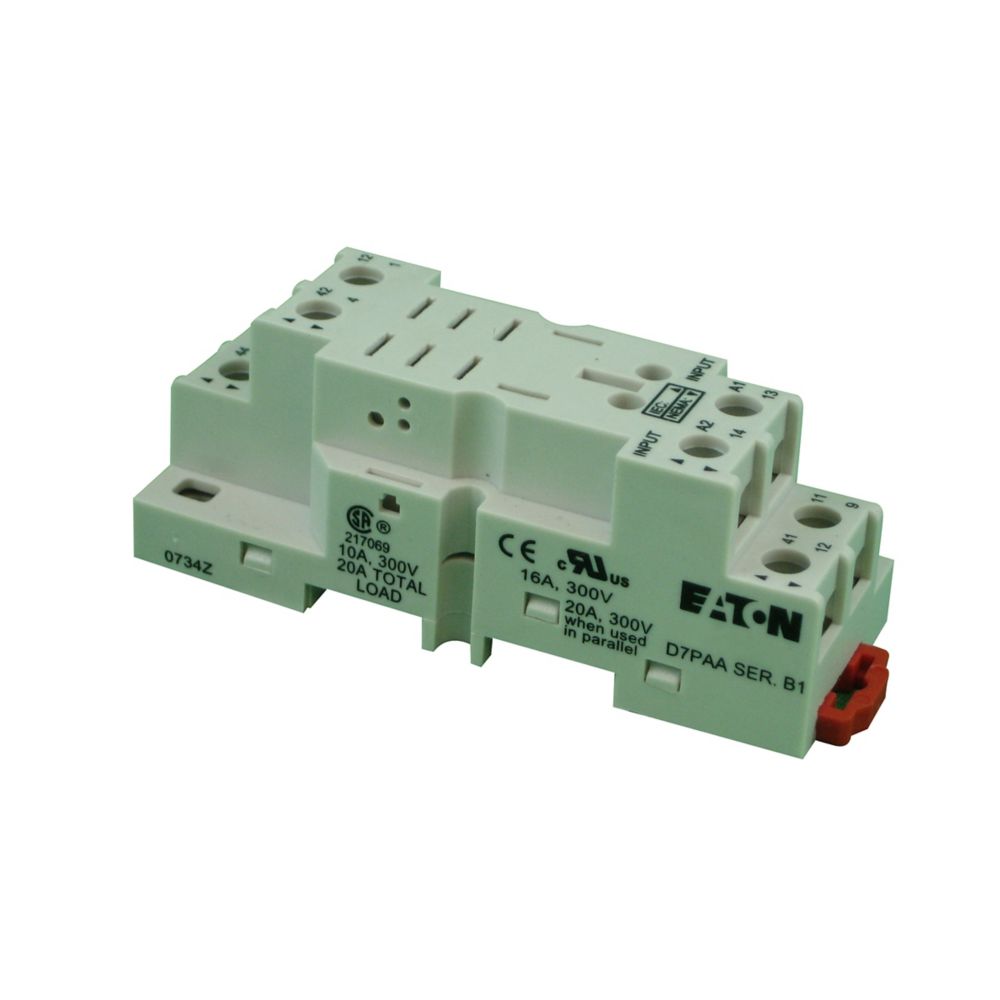

D7PAA | Eaton General-Purpose 300V 16A Plug-In Relay Socket
- Regular price
- $55.00
- Sale price
- $55.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D7PAA
Description
The Eaton D7PAA is a general-purpose plug-in relay socket designed for use with D7-series relays in control and automation systems. Its compact form factor, 300V rating, and 16A operational capacity support secure and flexible integration on DIN rail or panel-mounted installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Panel Accessories |
| Part Number | D7PAA |
| Subcategory | Protection Cover |
| Suitable For | D7PR1, D7PR2, D7PF1, D7PF2 Series Relays |
| Group | Relays |
| Dimensions (H × W × D) | 3.33 × 1.18 × 1.18 in |
| Series | D7 |
| Wiring Connection | Screw Clamping |
| Type | General-Purpose Relay Socket |
| Mounting | DIN Rail / Screw |
| Rated Operational Current | 16 A Nominal |
| Enclosure | IP20 |
| Module Size | B |
| Nominal Voltage | 300 V |
| Connection Style | Plug-In |
Information About D7PAA
The D7PAA is part of Eaton’s D7 series, designed as a versatile relay socket for general-purpose control applications across automation and electrical systems. It supports multiple relay models within the D7PR and D7PF families, ensuring broad compatibility and standardized installation practices. With screw-clamping terminals, IP20 enclosure, and the option for DIN rail or screw mounting, the socket provides secure connections while maintaining flexibility for panel layout requirements. Its 16A current rating and 300V operating capability allow reliable performance for moderate-load switching tasks in industrial and commercial environments.
Key Features
- General-purpose relay socket: Compatible with multiple Eaton D7-series plug-in relay models.
- 300V, 16A rating: Supports moderate-load switching applications in control environments.
- Screw-clamping terminals: Provide stable and secure wiring connections for reliable operation.
- DIN rail or screw mounting: Offers installation flexibility for various panel configurations.
- Compact module size B: Integrates easily into standardized modular control assemblies.
- IP20 enclosure: Protects against accidental contact during normal operation.
- Plug-in design: Simplifies relay replacement and maintenance in automation systems.
- Suitable for control panels: Ideal for relays used in industrial and commercial applications.
The D7PAA delivers the reliability and precision required for secure relay installation and operation in diverse electrical and automation systems.
