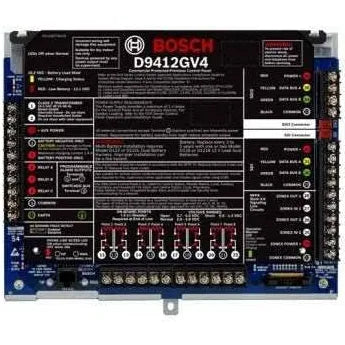

D9412GV4 | Bosch Integrated Intrusion, Fire & Access Control Panel, 246-Point Capacity
- Regular price
- $897.00
- Sale price
- $897.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: D9412GV4
Description
The Bosch D9412GV4 is an integrated control panel providing intrusion detection, fire alarm monitoring, and access control within a single unified system. It supports advanced network communication and accommodates a large number of points, areas, and users for comprehensive security management. Designed for scalable installations, the D9412GV4 is suited for commercial and institutional environments requiring multi-function protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Security System |
| Category | Fire Safety |
| Part Number | D9412GV4 |
| Subcategory | Fire Alarm Control |
| Operating Voltage | 12 VDC nominal |
| AC Power Input | 16.5 VAC, 40 VA transformer (D1640) |
| Alarm Output | 2 A at 12 VDC |
| Auxiliary Outputs (Combined) | 1.4 A at 12 VDC nominal |
| Current Draw (Max) | 300 mA |
| Points Supported | 246 (8 on-board, up to 238 off-board) |
| RF Points | 238 |
| Areas | 32 |
| Programmable Relay Outputs | 131 |
| Card Readers / Doors | 8 |
| Credentials Supported | 999 |
| Passcode Users | 999 + 1 service passcode |
| Custom Functions | 16 |
| SKEDs | 40 |
| Event Log Capacity | 1000 events |
| Parallel Printers | Up to 3 |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Relative Humidity | 5% to 93% non-condensing |
| Communication | Conettix IP network-compatible |
Information About D9412GV4
The D9412GV4 is a fully integrated security control panel engineered by Bosch to manage intrusion, fire detection, and access control within one platform. The system supports up to 246 points, 32 programmable areas, and a wide range of user credentials, making it suitable for large, multi-zone facilities. Conettix IP communication options enable secure alarm signaling over wired or cellular networks, while supported keypad interfaces include touchscreen, ATM-style, and LED designs. Typical applications include facilities requiring centralized management of point monitoring, door control, event logging, and programmable automation functions.
Key Features
- Integrated security platform: Combines intrusion, fire, and access control functions.
- High point capacity: Supports 246 points (8 on-board and up to 238 off-board).
- Scalable area management: Accommodates up to 32 independent program areas.
- Advanced access control: Supports 8 card readers and up to 999 credentials.
- Extensive event storage: Logs up to 1000 historical system events.
- Multiple user codes: Holds 999 passcode users plus a service passcode.
- Flexible automation: Provides 16 custom functions and 40 SKEDs.
- Robust communication: Compatible with Conettix IP and network reporting options.
The D9412GV4 delivers the reliability and precision required for comprehensive intrusion, fire, and access control in modern security environments.
