DAA2-5025 | Notifier Digital Audio Amplifier 50W
- Regular price
- $1,849.00
- Sale price
- $1,849.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

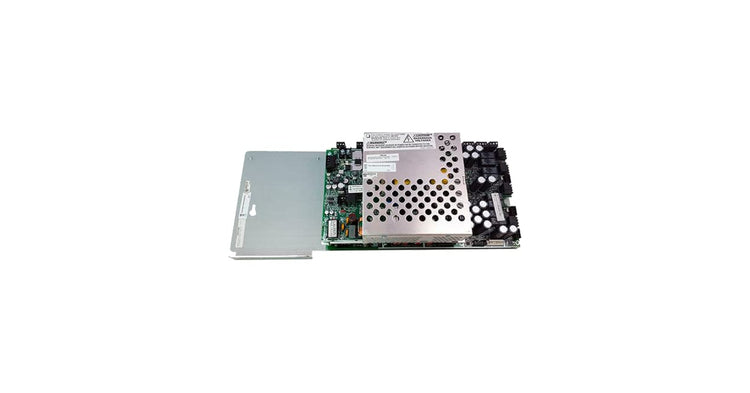

Product Description P/N: DAA2-5025
Description
The Notifier DAA2-5025 is a 50-watt digital audio amplifier designed for fire alarm voice evacuation systems. Operating at 25 VRMS and 120 VAC, it supports up to four Class B or two Class A speaker circuits and integrates advanced communication options including remote paging, firefighter telephone, and digital message backup.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| BrandPart Number | Notifier |
| Category |
Flame Safety Products
|
| Part Number | DAA2-5025 |
| Subcategory | Flame Safety Amplifier |
| Power Output | 50W at 25 VRMS |
| Speaker Circuits | 4 Class B or 2 Class A outputs |
| Mounting | Fits 1 tier of CAB-4 or EQ Series cabinet |
| Control Interface | Programmable via VeriFire Tools |
| Microphone Port | Yes (supports RM-1 remote paging) |
| Firefighter Telephone | Supports 7 telephones or connection via FTM-1 modules |
| Audio Channels | Supports up to 8 via DVC audio loop |
| Digital Audio Ports | 2-wire (convertible to fiber) |
| Backup Amplifier Options | Supports BDA for redundancy or 2-channel playback |
| Message Storage | Up to 106 seconds |
| Voltage Input | 120 VAC, 50/60 Hz |
| Certifications | UL 864 9th Edition |
| Weight | 10.00 lbs |
Information About DAA2-5025
The DAA2-5025 is part of Notifier's DAA2 Series of digital audio amplifiers, offering powerful, scalable performance in emergency communication systems. The unit installs into any CAB-4 Series or EQ Series cabinet tier and is programmable using VeriFire Tools for streamlined configuration. It supports up to eight audio channels over the DVC audio loop and is capable of distributing two simultaneous messages with the addition of an optional BDA amplifier. Audio output can be directed through network-controlled logic, providing flexibility across large installations.
The amplifier also features circuits for firefighter telephones and remote paging microphones, with options for up to seven directly connected firefighter phones or connection via multiple FTM-1 modules. Digital message storage, backup support, and optional fiber conversion for audio ports make the DAA2-5025 a reliable component in voice evacuation systems.
Key Features:
- 50W Output Power at 25 VRMS: High-fidelity digital audio distribution for fire alarm and emergency communications.
- 4 Class B or 2 Class A Audio Circuits: Flexible wiring configurations for speaker zones.
- Firefighter Telephone Riser Circuit: Supports up to 7 active firefighter telephones with direct or module-based connections.
- Remote Microphone Paging Support: Enables live paging through an RM-1 microphone.
- Dual Audio Channel Playback: Plays up to two different messages simultaneously with optional BDA amplifier.
- Digital Message Backup: Up to 106 seconds of stored messages in case of communication loss.
- Battery Charger Sharing: Supports up to 4 amplifiers sharing a common battery bank.
- Fiber Conversion Ready: Audio ports support Style 4 or 7 configurations and can be converted to fiber using optional modules.
- Backup Amplifier Support: Enables one-to-one backup or increased output capacity (up to 100W with configuration).
- UL 864 Listed, 9th Edition: Meets rigorous safety and reliability standards for life safety systems.
The DAA2-5025 combines powerful digital audio performance with communication redundancy and flexible integration for complex voice evacuation needs.
