Product Description P/N: DACT-E3

Description / Specifications

Description

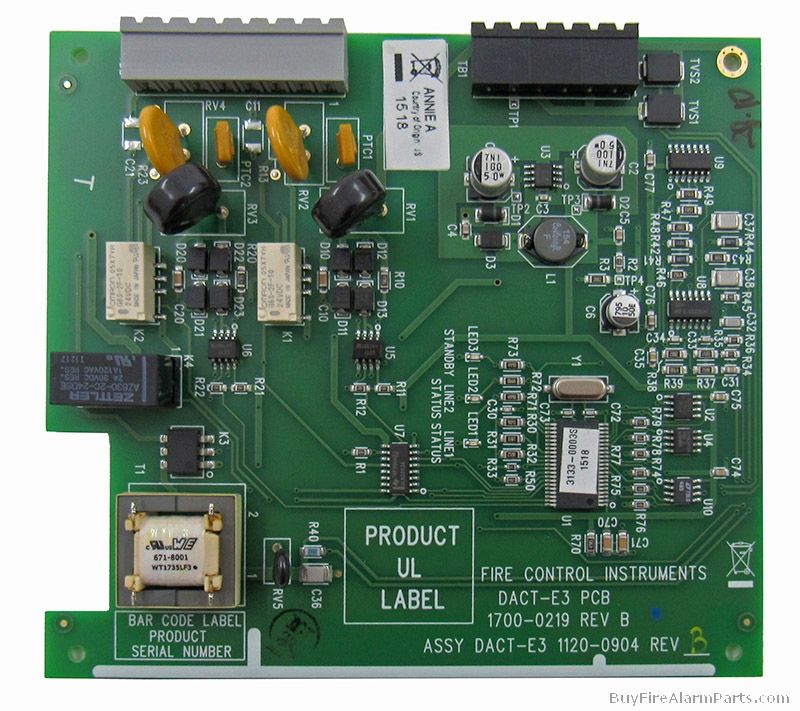

The Digital Alarm Communicator Transmitter (DACT-E3) is a digital communications circuit. It is an optional component of the following systems.

• E3 Series® Expandable Emergency Evacuation System
• S3 Series Small Addressable Fire Alarm Control Panel



Technical Specifications



Brand Gamewell-FCI
Category Flame Safety Products
Sub-Category Flame Safety Accessory
Part Number DACT-E3
Type Option Card
Operating Voltage 24 VDC
Operating Current 0.018 amp.
Alarm Current 0.018 amp.
Operating Temperature 49° C
Relative Humidity to 93%, non-condensing (32° C)





Information About DACT-E3

The Digital Alarm Communicator Transmitter is an optional component of the E3 Series® Expandable Emergency Evacuation System. The DACT-E3 sends digital signals over the telephone network to a central station. This module can be located in the main cabinet or remotely located via a local RS-485 serial interface. The DACT-E3 is compatible with digital alarm communicator receivers (DACRs) that receive the following signaling formats: SIA 3+1 2300 Hz SIA 4+2 1400 Hz Ademco Contact ID 4+2 2300 Hz Hz In addition to the DACT-E3 being compatible with digital signaling formats, the DACT-E3 features numerous formats for communication to a central station. As a digital communicator, the DACT-E3 complies with FCC Part 8, Telecommunication Standards for DC and AC Ringer Equivalence.

Features
Listed under UL Standard 864, 9th Edition Communicates with the E3, ILI-MB-E3 sub-assembly via RS-485 Communicates in a variety of formats Transmits and verifies data to the central station Offers pre-programmed dialing to the central station phone number Performs on and off-hook status to the phone lines Traces proper central station "ACK" and "Kiss-off" tone Activates hang-up and release phone lines

The DACT-E3 is adaptable for installation in standard E3 Series® System cabinets. Typically, the DACT-E3 module mounts on standoffs on top of the left side of the ILI-MB-E3 module. Either unit can be easily connected to the backbox or sub-assembly plate depending on the cabinet module. Note: For instructions on installing the DACT-E3, refer to the E3 Series® Expandable Emergency Evacuation Installation/Operating Manual, Part Number: 9020-0574 or the DACT-E3 Installation Instructions Part Number:9000-0580.
