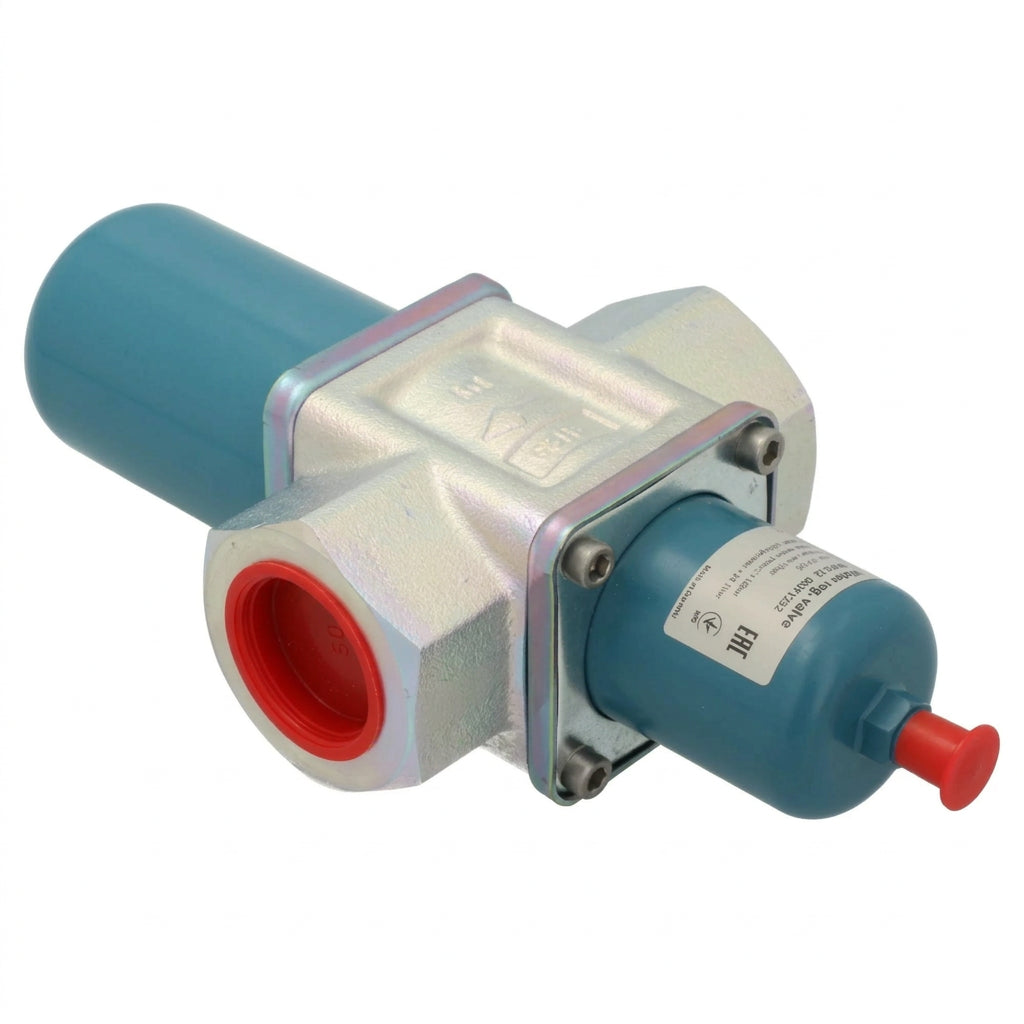

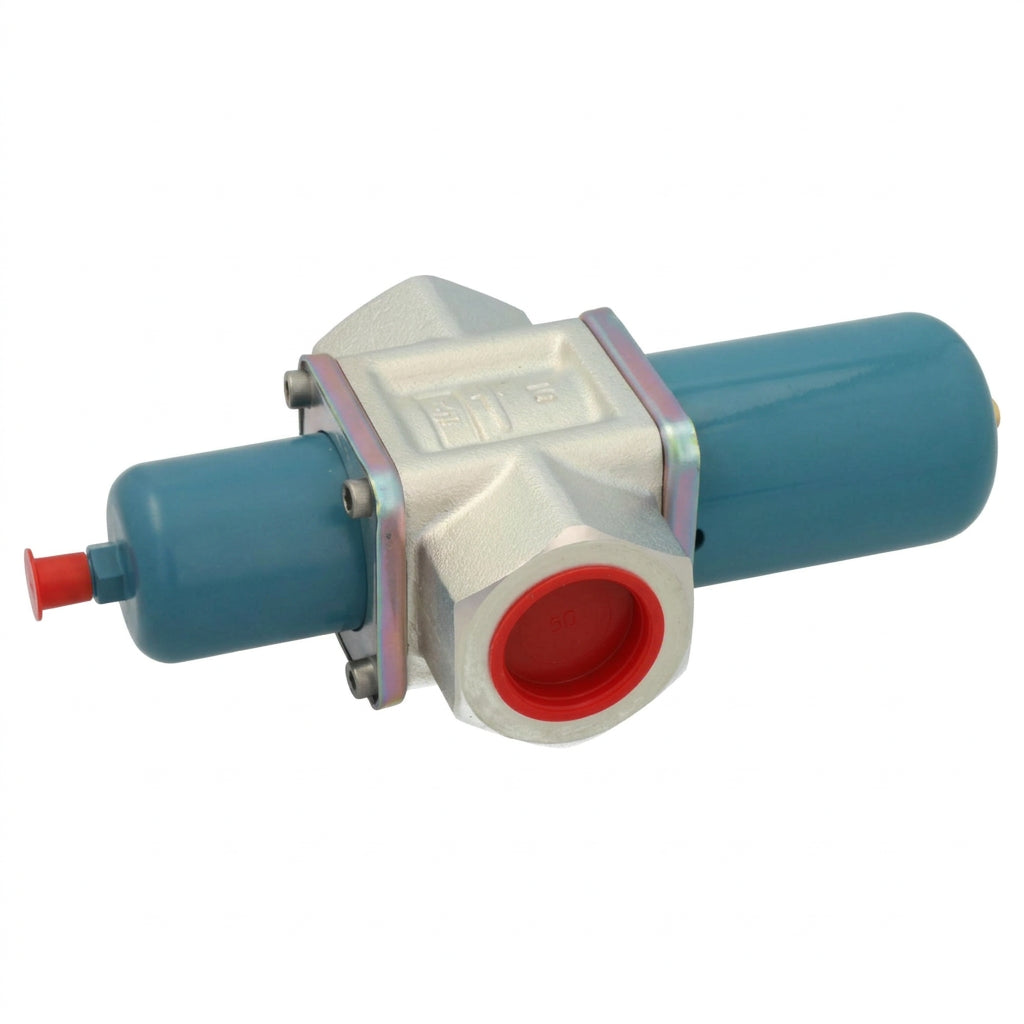

Danfoss 003F1232 WVFX Pressure-Operated Water Regulating Valve
- Regular price
- $565.00
- Sale price
- $565.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 003F1232
Description
The Danfoss 003F1232 is a WVFX 32 pressure-operated water valve for regulating cooling-water flow in refrigeration systems. It opens as condensing pressure rises, using a 4–17 bar control range and a Kv flow coefficient of 11 m³/h.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Refrigeration Controls |
| Part Number | 003F1232 |
| Subcategory | Pressure-Operated Water Valves |
| Product Type | WVFX 32 |
| Product Family | WVFX |
| Body Material | Cast iron |
| Water Connection Size | G 1¼ |
| Water Connection Configuration | Internal thread |
| Connection Standard | ISO 228-1 |
| Refrigerant Pressure Connection | ¼ in. / 6 mm SAE flare |
| Control Pressure Range | 4–17 bar |
| Opening Action | Opens on rising condensing pressure |
| Kv Flow Coefficient | 11 m³/h |
| Maximum Water-Side Working Pressure | 10 bar (145 psi) |
| Maximum Pressure Drop | 10 bar (145 psi) |
| Compatible Media | Fresh water; neutral brine |
| Media Temperature Range | −25°C to 90°C (−13°F to 194°F) |
| Weight | 3.22 kg (7.10 lb) |
Information About 003F1232
The 003F1232 is part of the Danfoss WVFX water-regulating valve family. Its cast-iron body has internal G 1¼ connections manufactured to ISO 228-1. A separate ¼-inch SAE flare connection transmits refrigerant-side pressure to the regulating mechanism. The valve accommodates fresh water or neutral brine within the specified temperature and pressure limits.
Key Features:
- Pressure-Responsive Regulation: Adjusts cooling-water flow in response to condensing pressure.
- Rising-Pressure Opening: Opens further as the sensed condensing pressure increases.
- Adjustable Control Range: Provides pressure regulation within a 4–17 bar setting range.
- Flow Coefficient: Has a specified Kv value of 11 m³/h.
- Threaded Water Connections: Uses internal G 1¼ connections to ISO 228-1.
- Refrigerant Pressure Connection: Includes a ¼-inch SAE flare connection for pressure sensing.
- Cast-Iron Construction: Uses a cast-iron valve body for the water-side assembly.
- Media Compatibility: Supports fresh water and neutral brine applications.
The 003F1232 delivers the reliability and precision required for pressure-responsive cooling-water regulation in refrigeration systems.
