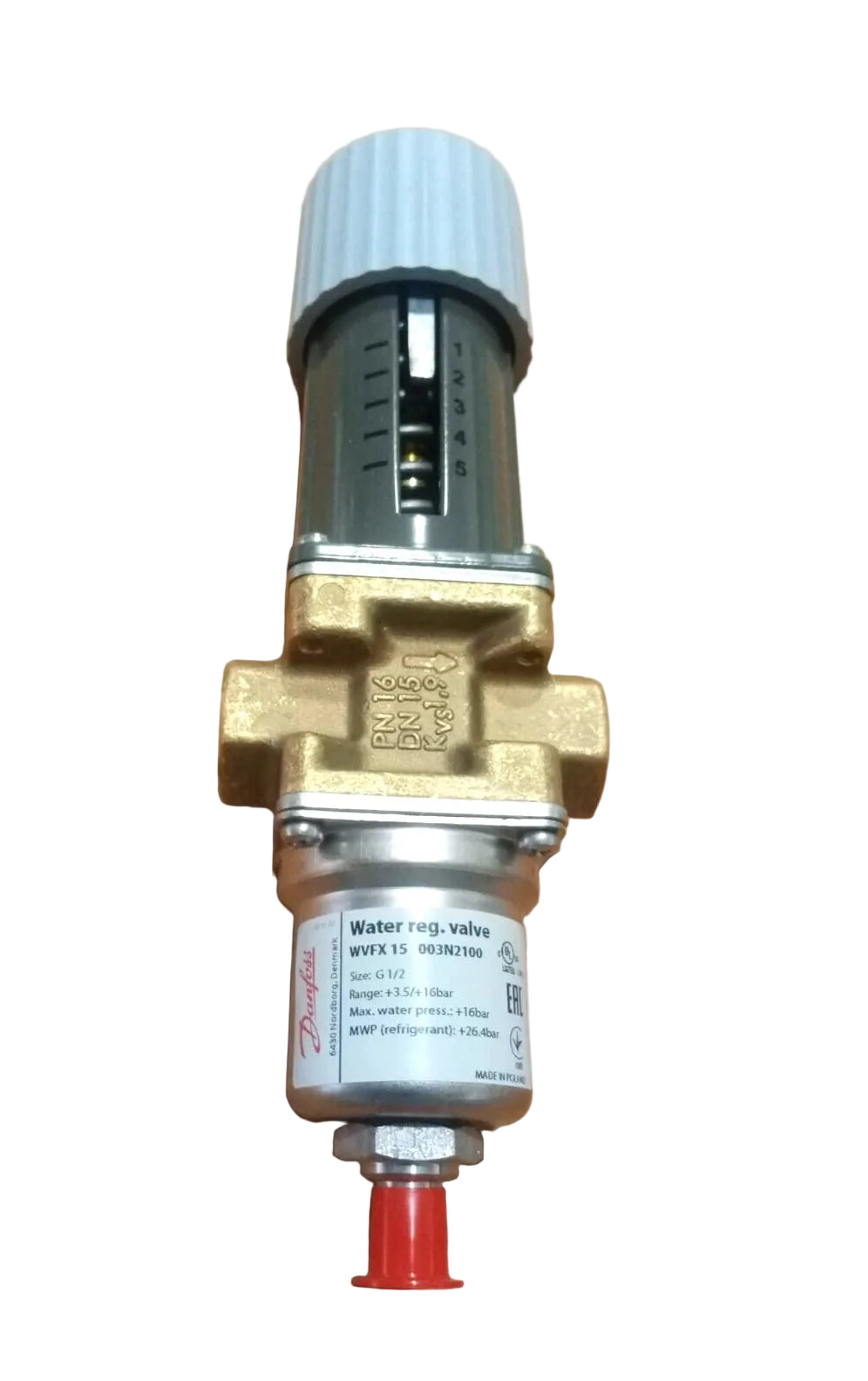

Danfoss 003N2100 WVFX 15 Pressure Operated Water Regulating Valve G1/2 Brass 3.5-16 Bar
- Regular price
- $429.00
- Sale price
- $429.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 003N2100
Description
The Danfoss 003N2100 is a WVFX 15 pressure-operated water regulating valve designed to control cooling water flow through water-cooled refrigeration condensers. It features G1/2 female water connections, a 1/4-inch SAE flare pressure connection, and automatic regulation based on refrigerant condensing pressure.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Refrigeration & HVAC Controls |
|
Part Number |
003N2100 |
|
Subcategory |
Water Regulating Valves |
|
Series |
WVFX |
|
Model |
WVFX 15 |
|
Product Type |
Pressure-Operated Water Regulating Valve |
|
Valve Body Material |
Brass |
|
Operating Principle |
Mechanical Pressure Regulation |
|
Opening Configuration |
Opens on Rising Condensing Pressure |
|
Control Pressure Range |
3.5–16 bar (50.8–232 psi) |
|
Kv Value |
1.9 m³/h |
|
Water Connection Size |
G1/2 |
|
Water Connection Type |
Internal / Female |
|
Water Connection Standard |
ISO 228-1 |
|
Refrigerant Connection Size |
1/4 in (6 mm) |
|
Refrigerant Connection Type |
SAE Flare |
|
Control Pressure Source |
Refrigerant Condensing Pressure |
|
Control Function |
Automatic Cooling Water Flow Regulation |
|
Primary Applications |
Water-Cooled Condensers, Commercial Refrigeration, Industrial Cooling Systems |
|
Weight |
2.12 lb |
Information About 003N2100
The 003N2100 is part of the Danfoss WVFX Series of mechanically operated water regulating valves for refrigeration and air conditioning equipment. Its brass body houses a pressure-responsive regulating mechanism that adjusts water flow according to changing condenser pressure. The valve incorporates G1/2 internal water connections conforming to ISO 228-1 and a separate 1/4-inch SAE flare connection for refrigerant pressure sensing. With an adjustable control pressure range of 3.5–16 bar and a Kv value of 1.9 m³/h, it is suitable for commercial refrigeration systems, water-cooled condensers, and industrial cooling installations.
Key Features:
-
Pressure-Operated Control: Automatically regulates condenser cooling water flow according to refrigerant pressure.
-
WVFX 15 Series Design: Provides mechanical water flow regulation for refrigeration and cooling equipment.
-
Rising Pressure Operation: Opens progressively as refrigerant condensing pressure increases.
-
Adjustable Pressure Range: Supports control settings from 3.5 to 16 bar (50.8–232 psi).
-
Brass Valve Construction: Features a corrosion-resistant body suitable for compatible cooling water systems.
-
G1/2 Water Connections: Incorporates female threaded connections for installation in water piping.
-
ISO 228-1 Compatibility: Uses standardized parallel pipe threads for water-side connections.
-
SAE Flare Pressure Connection: Features a 1/4-inch (6 mm) refrigerant pressure sensing connection.
-
Kv Flow Coefficient: Provides a rated flow coefficient of 1.9 m³/h.
-
Automatic Water Flow Adjustment: Increases or decreases cooling water supply according to condenser operating conditions.
-
Electrical Independence: Operates mechanically without external electrical power or electronic control equipment.
-
Condenser Pressure Regulation: Helps maintain stable condensing conditions in water-cooled refrigeration systems.
The 003N2100 delivers the reliability and precision required for condenser pressure control, automatic cooling water regulation, and stable operation of commercial refrigeration equipment.
