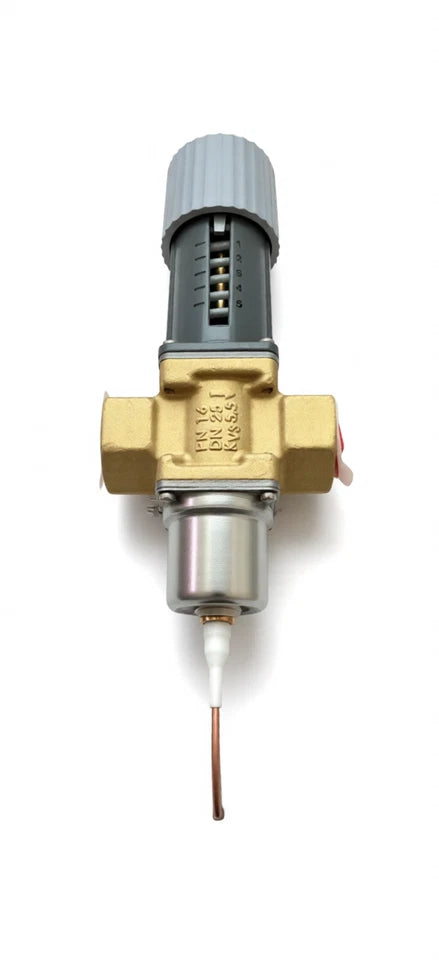

Danfoss 003N2132 Thermostatic Water Regulating Valve
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 003N2132
Description
The Danfoss 003N2132 is a thermostatic water regulating valve designed to control cooling water flow in response to temperature changes. It is intended for industrial cooling and temperature-control applications where automatic, self-acting operation is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC Controls |
| Part Number | 003N2132 |
| Subcategory | Thermostatic Valves |
| Series | AVTA |
| Valve Type | Thermostatic water valve |
| Connection | G 1/2 |
| Material | Brass |
| Temp. Range | 0–30°C |
| Max. Pressure | 16 bar |
| Kv Value | 1.9 m³/h |
| Capillary | 2 m |
| Weight | 1.26 kg |
Information About 003N2132

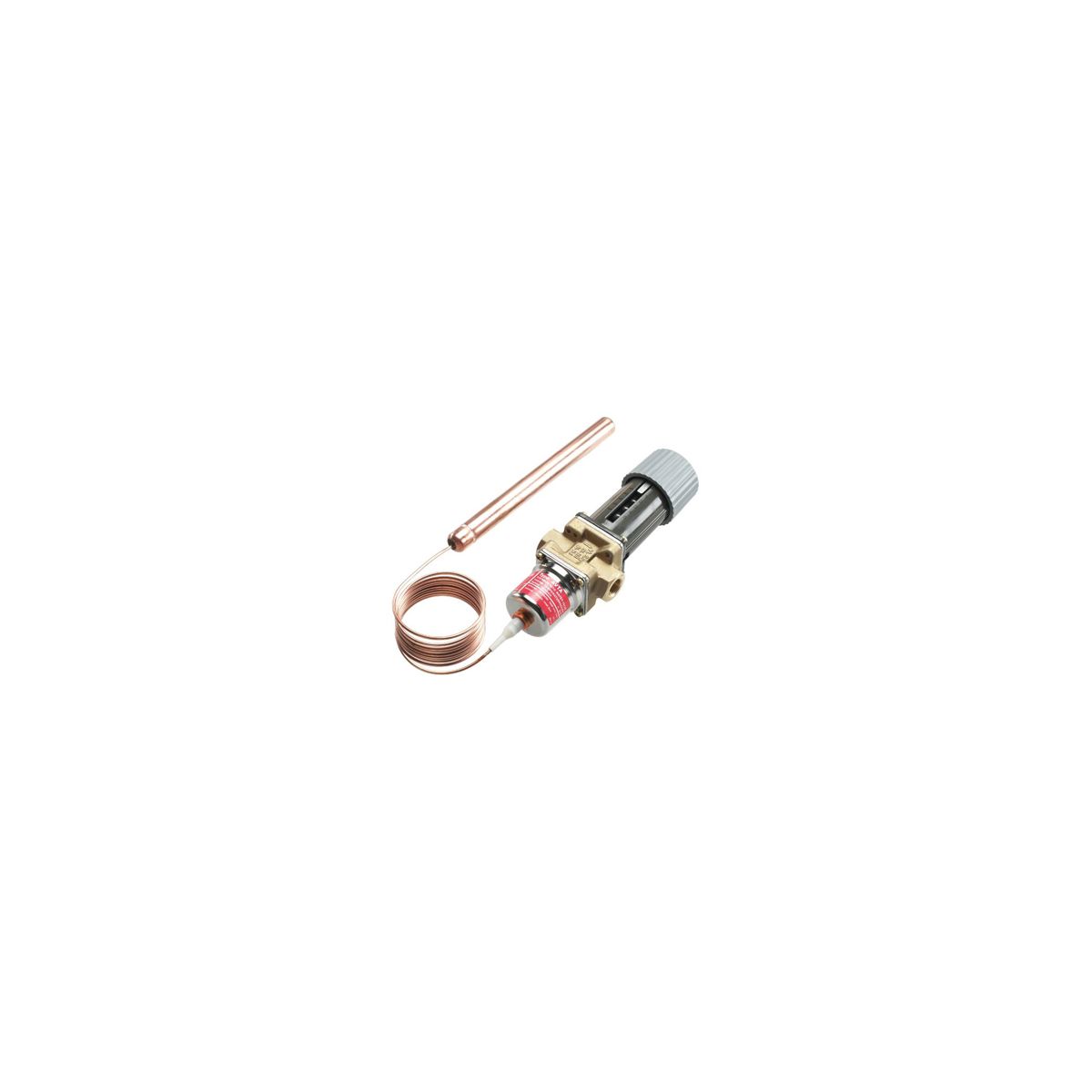

The 003N2132 is associated with the Danfoss AVTA thermostatic water valve range, designed for temperature-dependent regulation of cooling water. Its self-acting mechanism adjusts valve opening in response to changes detected by the temperature sensor. This type of valve can operate without an external electrical control signal. It is suitable for compatible industrial equipment and cooling circuits when the operating specifications match the application.
Key Features:
- Self-Acting Operation: Regulates cooling water flow in response to temperature changes.
- Thermostatic Control: Adjusts valve opening according to the temperature detected by the sensing element.
- Automatic Regulation: Helps manage equipment temperature by varying cooling water supply.
- No External Electrical Signal: Uses a self-acting mechanism rather than an electrically controlled actuator.
- Compact Installation: Designed for integration into suitable water circuits.
The 003N2132 supports automatic temperature-responsive water regulation in compatible industrial cooling applications.
