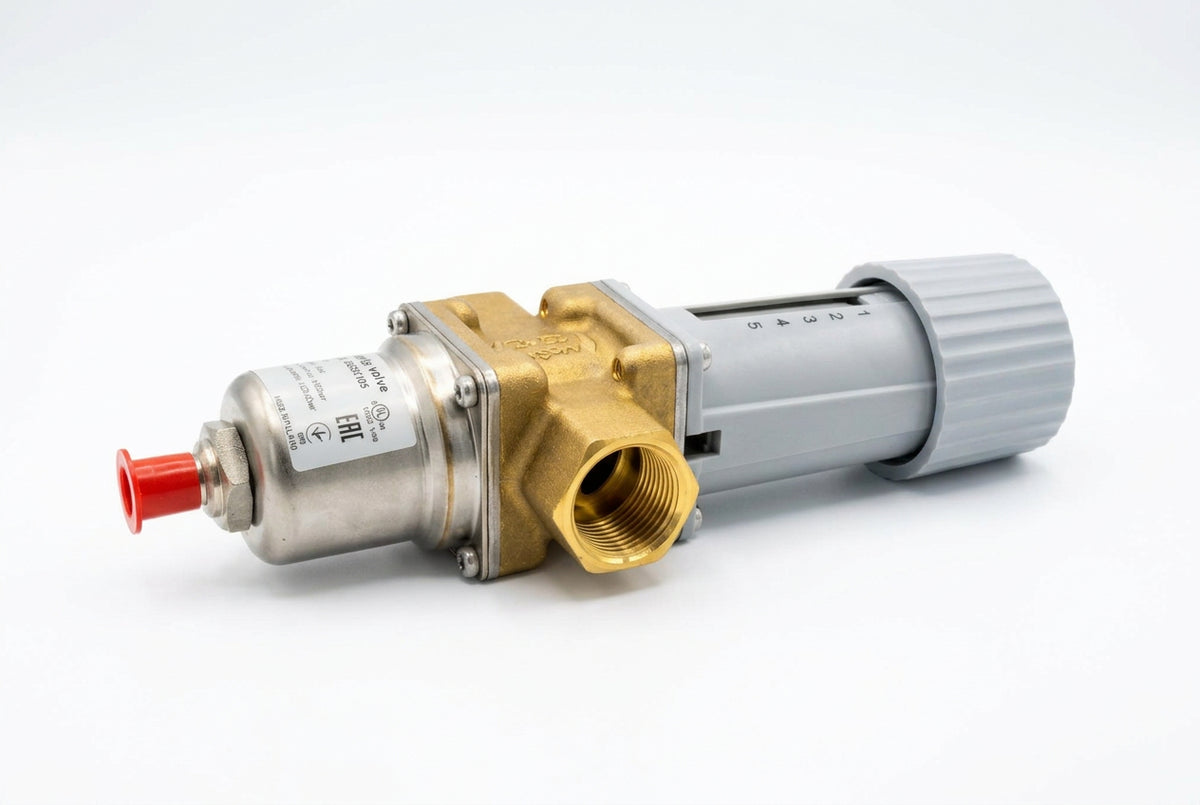

Danfoss 003N3105 WVFX Pressure-Operated Condenser Water Regulating Valve
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 003N3105
Description
The Danfoss 003N3105 is a WVFX 20 pressure-operated water valve that regulates condenser cooling flow in refrigeration equipment. It opens as condensing pressure rises and provides a 4–23 bar control range with a Kv coefficient of 3.4 m³/h.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Refrigeration Controls |
| Part Number | 003N3105 |
| Subcategory | Pressure-Operated Water Valves |
| Product Type | WVFX 20 |
| Product Family | WVFX |
| Body Material | Brass |
| Water Connection | G ¾, internal thread |
| Connection Standard | ISO 228-1 |
| Refrigerant Pressure Connection | ¼ in. / 6 mm SAE flare |
| Control Pressure Range | 4–23 bar |
| Opening Configuration | Opens on rising condensing pressure |
| Kv Flow Coefficient | 3.4 m³/h |
| Cv Flow Coefficient | 3.9 |
| Maximum Water-Side Working Pressure | 16 bar (232 psig) |
| Maximum Differential Pressure | 10 bar (145 psi) |
| Compatible Media | Fresh water; neutral brine |
| Media Temperature Range | −25°C to 130°C (−13°F to 266°F) |
| Weight | 1.225 kg (2.70 lb) |
Information About 003N3105
The 003N3105 is a member of the Danfoss WVFX water-regulating valve series. Its brass body incorporates internal G ¾ connections for the water circuit. A separate ¼-inch SAE flare connection allows refrigerant-side pressure to operate the regulating mechanism. The supplied technical data permits fresh water and neutral brine within the stated operating limits.
Key Features:
- Condensing-Pressure Control: Regulates cooling-water delivery according to sensed refrigeration pressure.
- Rising-Pressure Response: Increases valve opening as condensing pressure increases.
- Adjustable Setting Range: Supports control-pressure settings from 4 to 23 bar.
- Defined Flow Coefficient: Provides a Kv value of 3.4 m³/h.
- Threaded Water Interface: Uses internal G ¾ connections to ISO 228-1.
- Pressure-Sensing Connection: Includes a ¼-inch SAE flare connection on the refrigerant side.
- Brass Valve Body: Provides the structural housing for the water-regulating assembly.
- Compatible Cooling Media: Accommodates fresh water and neutral brine.
The 003N3105 delivers the reliability and precision required for condenser cooling-flow regulation in compatible refrigeration installations.
