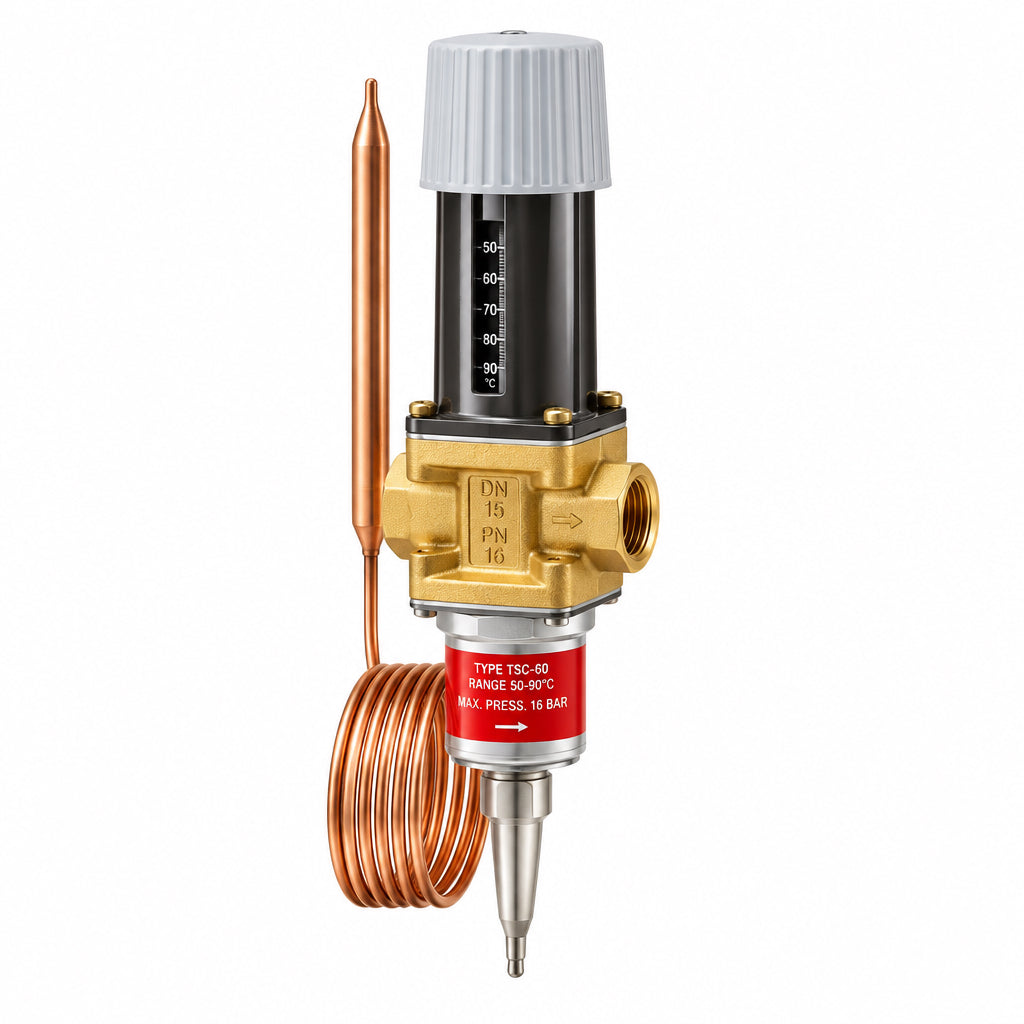

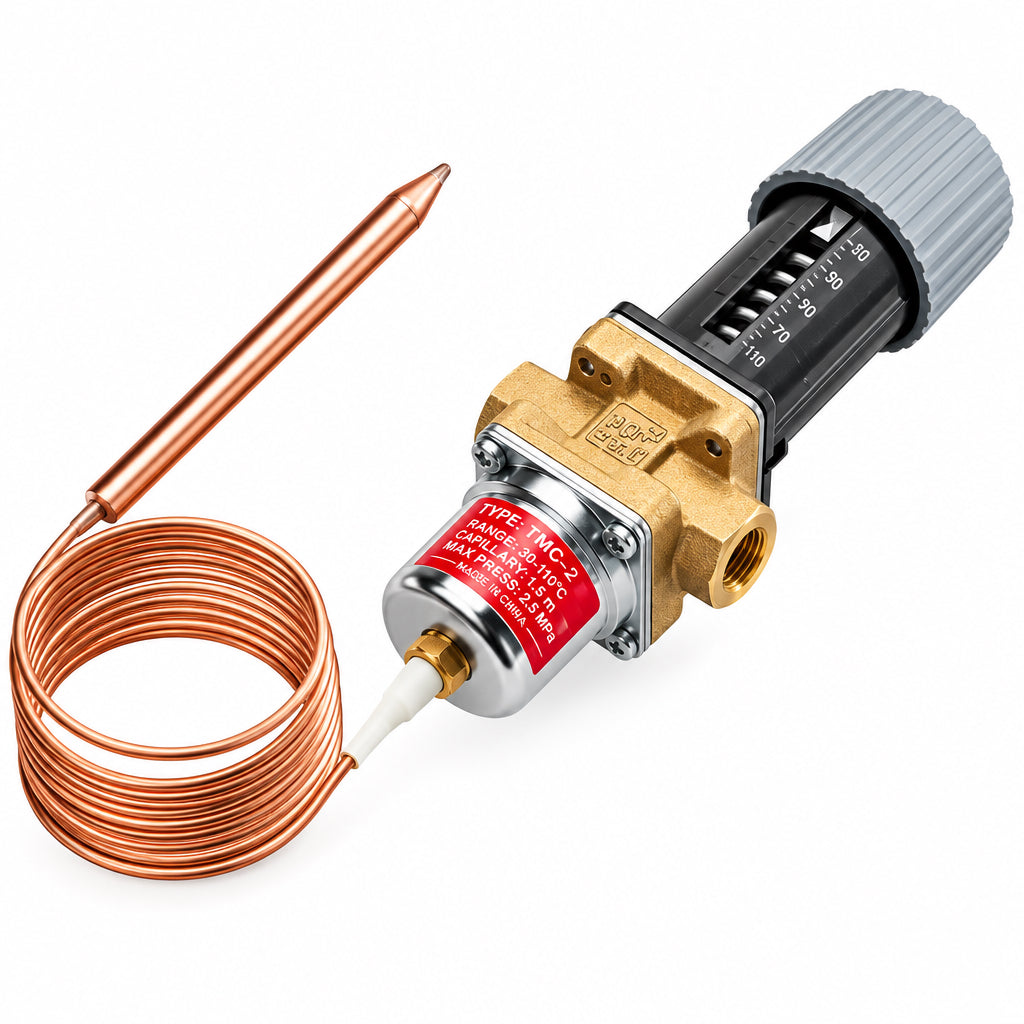

Danfoss 003N6115 AVTA 15 Thermostatic Water Control Valve NPT
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 003N6115
Description
The Danfoss 003N6115 is an AVTA 15 thermostatically operated water control valve with a brass body and NPT connection. It opens when the sensor temperature rises and uses an adsorption charge for temperature-responsive water flow control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Valves |
| Part Number | 003N6115 |
| Subcategory | Control Valve |
| Product Type | Thermostatically Operated Water Valve |
| Model | AVTA 15 |
| Connection Type | NPT |
| Connection Size | 1/2-14 |
| Body Material | Brass |
| Opening Configuration | Opens on Rising Sensor Temperature |
| Charge Type | Adsorption |
| Control Method | Thermostatic |
| Application | Water Flow Temperature Control |
| Weight | 1.36 kg |
Information About 003N6115
The 003N6115 is a Danfoss AVTA 15 control valve designed for temperature-dependent regulation of water flow. Its thermostatic operating principle responds directly to changes in the sensor temperature to actuate the valve. The valve uses a 1/2-14 NPT connection and a brass body for installation in compatible piping systems. Its adsorption charge type provides the sensing mechanism required for automatic temperature-based valve operation.
Key Features:
- AVTA 15 Design: Thermostatically operated water valve for temperature-responsive flow regulation.
- Rising Temperature Operation: Opens as the sensor temperature increases.
- NPT Connection: Uses a 1/2-14 NPT connection for compatible piping installations.
- Brass Body: Constructed with a brass valve body.
- Adsorption Charge: Uses an adsorption charge for thermostatic temperature sensing.
- Automatic Control: Regulates valve opening based on sensed temperature without direct electrical control.
- Water Valve Application: Designed for temperature-controlled water flow applications.
- Danfoss Component: Manufactured as a Danfoss thermostatically operated control valve.
The 003N6115 delivers the reliability and precision required for automatic temperature-based water flow control.
