Danfoss 003Z0781 AB-QM 2-Inch Pressure Independent Control Valve
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 003Z0781
Description
The Danfoss 003Z0781 AB-QM Pressure Independent Control Valve is a 2-inch valve designed for precise flow regulation and hydronic system balancing. It features NPT threaded connections, integrated differential pressure control, and a maximum flow capacity of 55 GPM.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC Controls |
| Part Number | 003Z0781 |
| Subcategory | Pressure Independent Control Valve |
| Valve Series | AB-QM ANSI |
| Valve Size | 2 in |
| Maximum Flow Capacity | 55 GPM |
| Connection Type | External NPT thread |
| Valve Body Material | Ductile iron, EN-GJL-250 |
| Maximum Static Pressure | 250 psi |
| Differential Pressure Range | 4–60 psi |
| Media Temperature Range | 15°F to 250°F |
| Test Plugs | Included |
| Actuator Connection | M30 × 1.5 |
| Weight | 17.15 lb |
Information About 003Z0781
The 003Z0781 is a Danfoss AB-QM ANSI pressure-independent balancing and control valve designed for HVAC hydronic systems. It combines flow regulation and dynamic differential pressure control in one valve assembly. The valve supports flow rates up to 55 GPM and has a 2-inch nominal size with external NPT connections. Its ductile iron body and integrated pressure regulator help maintain controlled flow as system pressure changes.
Key Features:
-
Pressure-Independent Control: Regulates flow despite changes in system differential pressure.
-
Integrated Balancing: Combines control and balancing functions in one valve.
-
2-Inch Valve Size: Designed for compatible 2-inch piping systems.
-
Maximum Flow Capacity: Supports flow rates up to 55 GPM.
-
NPT Threaded Connections: Uses external NPT connections for installation.
-
Ductile Iron Body: Constructed from EN-GJL-250 ductile iron.
-

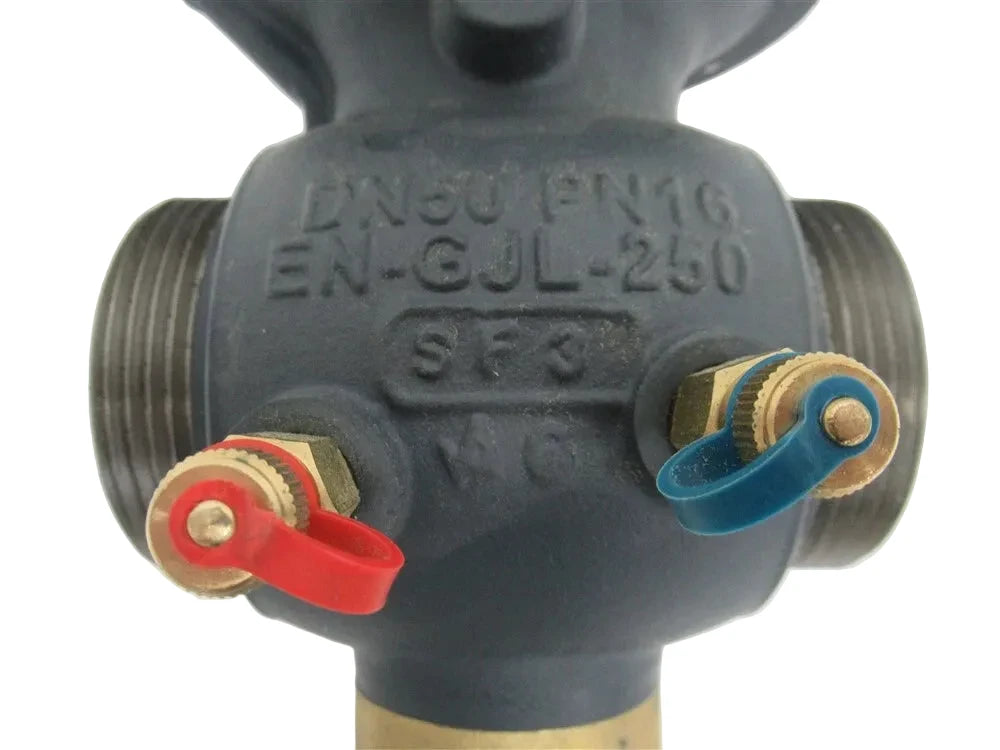

Integrated Test Plugs: Includes test points for system measurement.
-
Differential Pressure Range: Operates within a specified 4–60 psi differential pressure range.
The 003Z0781 delivers the reliability and precision required for HVAC flow control and hydronic system balancing applications.
