Danfoss 009L7067 GBC Refrigeration Shut-Off Ball Valve with Service Access Port
- Regular price
- $815.00
- Sale price
- $815.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 009L7067
Description

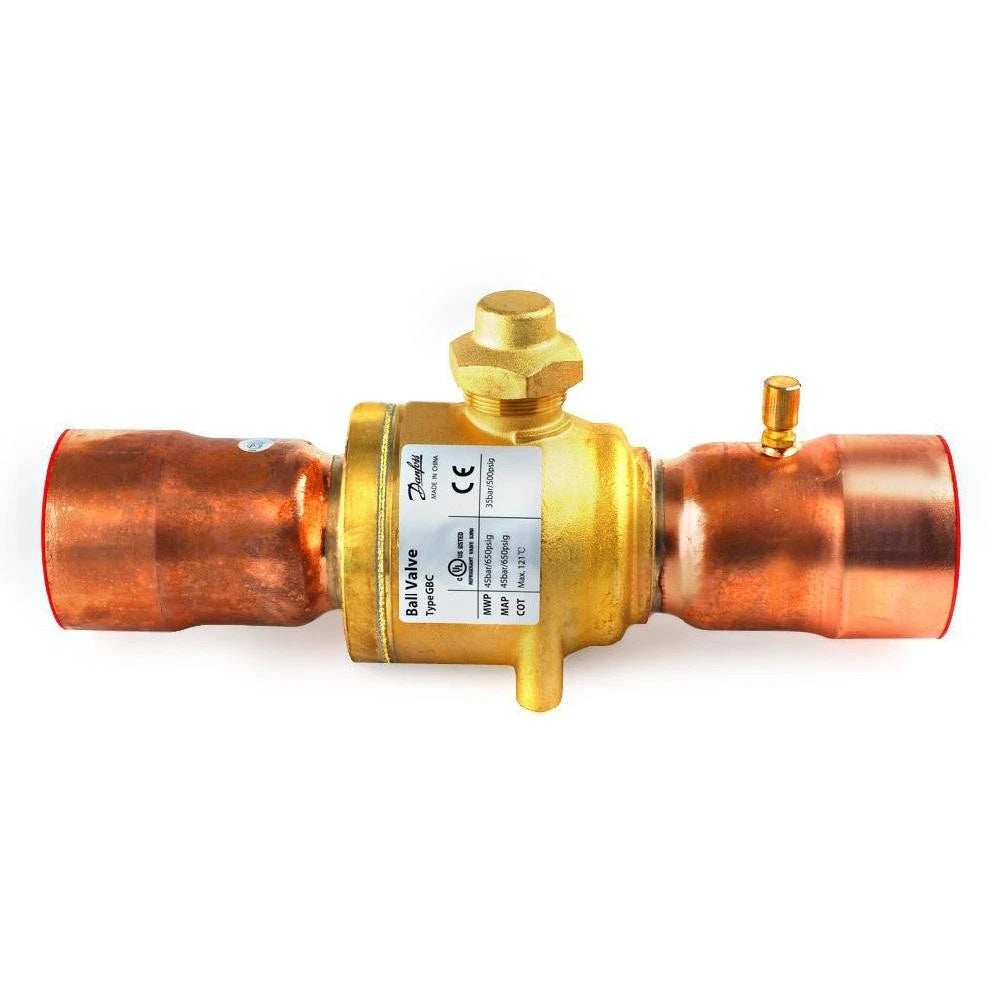

The Danfoss 009L7067 is a GBC 79s shut-off ball valve for isolating refrigerant lines in commercial refrigeration and air-conditioning systems. It features 3⅛-inch ODF solder connections, bidirectional flow, and a maximum working pressure of 45 bar.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Refrigeration Valves |
| Part Number | 009L7067 |
| Subcategory | Shut-Off Ball Valves |
| Product Type | GBC 79s |
| Port Design | Reduced port |
| Flow Direction | Bidirectional / bi-flow |
| Flow Path | Straightway |
| Inlet Connection | 3⅛ in. ODF solder |
| Outlet Connection | 3⅛ in. ODF solder |
| Body Material | Brass |
| Connection Material | Copper |
| Maximum Working Pressure | 45 bar; manufacturer-listed equivalent: 650 psig |
| Kv Flow Coefficient | 171.89 m³/h |
| Cv Flow Coefficient | 198.70 |
| Access Port | Included, with Schrader valve |
| Published Temperature Range | −40°C to 100°C (−40°F to 212°F); oil-free media maximum: 80°C |
| EAN | 5702428515658 |
| Weight | 4.37 kg (9.63 lb) |
Information About 009L7067
The 009L7067 is part of the Danfoss GBC refrigeration ball valve family. Its reduced-port construction combines a brass body with copper connections. An access port with an included Schrader valve supports service connections. The straightway configuration carries an embossed two-way flow arrow for installation reference.
Key Features:
- Refrigerant Isolation: Provides shut-off capability for compatible refrigeration piping.
- Bidirectional Flow: Allows refrigerant flow in either direction.
- ODF Connections: Uses 3⅛-inch solder connections at both inlet and outlet.
- Reduced-Port Design: Incorporates a reduced internal flow passage.
- Working Pressure Rating: Supports a maximum operating pressure of 45 bar.
- Service Access: Includes an access port fitted with a Schrader valve.
- Material Construction: Combines a brass valve body with copper connection tubes.
- Protective Cap: Supplied with a cap and wire seal.
The 009L7067 delivers the reliability and precision required for refrigerant-line isolation in compatible commercial cooling systems.
