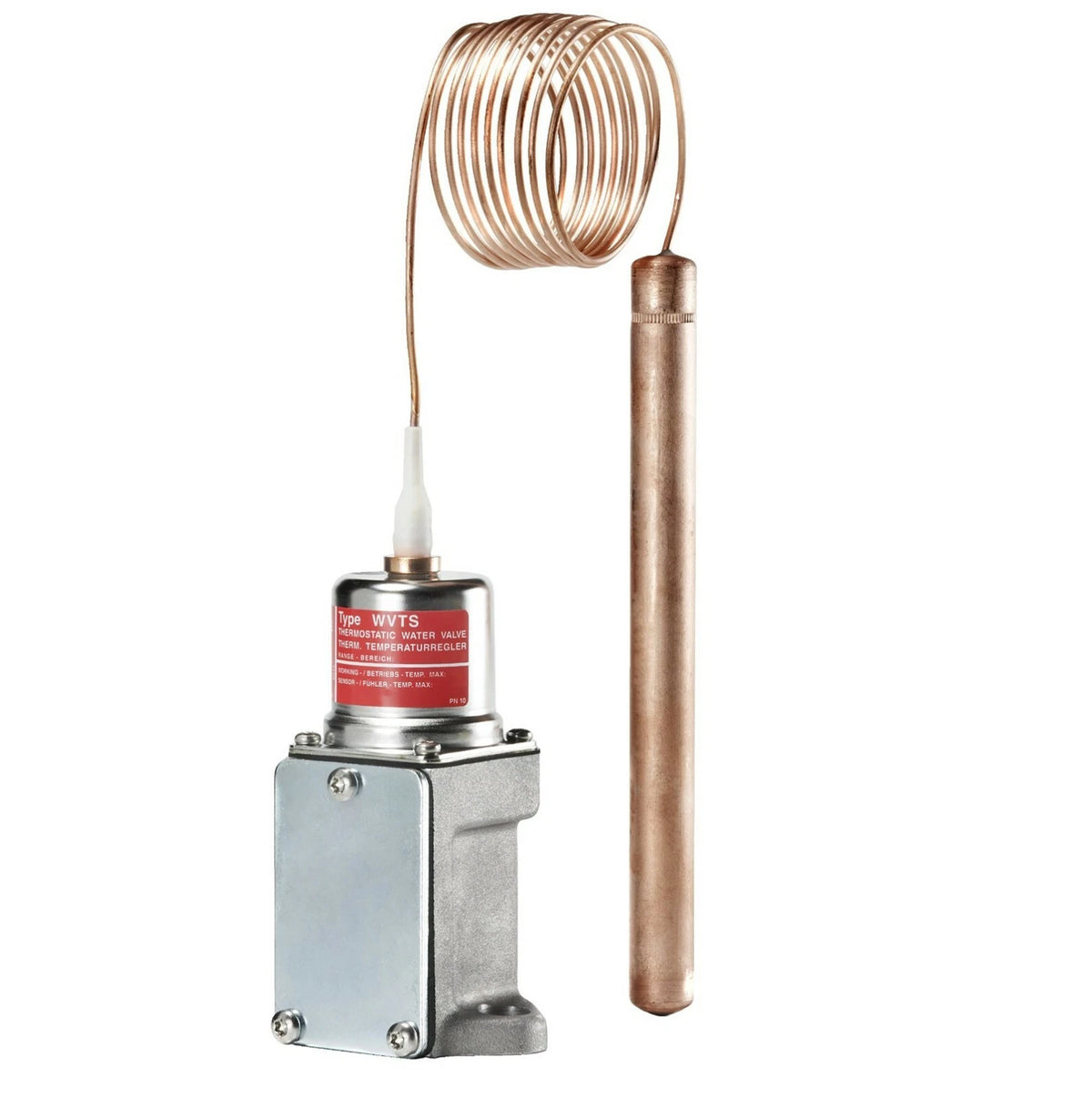

Danfoss 016D1003 WVTS Thermostatic Pilot Unit with 25–65°C Adjustment Range and 2-Meter Capillary
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 016D1003
Description
Danfoss 016D1003 is a thermostatic pilot unit for compatible WVTS water-regulating valves, with an adjustable temperature range of 25–65°C and a 2-meter capillary tube. It senses process temperature and controls the associated valve to regulate cooling-water flow without an external electrical supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Controls & Indicators |
| Part Number | 016D1003 |
| Subcategory | Thermostat |
| Product Type | Thermostatic pilot unit |
| Product Family | WVTS |
| Temperature Adjustment Range | 25–65°C / 77–149°F |
| Capillary Length | 2 meters |
| Maximum Sensor Temperature | 90°C / 194°F |
| Control Principle | Self-acting thermostatic |
| Control Response | Associated valve opens on rising sensor temperature |
| Compatible Valve Sizes | WVTS 32, 40, 50, 65, 80, and 100 |
| Included Components | Control element and spring housing |
| System Media | Cooling water and neutral brine |
| External Power Requirement | None |
| Weight | 2.30 lbs |
Information About 016D1003
The 016D1003 is a temperature-control element from the Danfoss WVTS parts program. Its assembly includes the control element and spring housing. A remote sensing bulb communicates temperature changes through the capillary to the thermostatic mechanism. It is compatible with WVTS 32, 40, 50, 65, 80, and 100 valve sizes.
Key Features:
- Adjustable Temperature Range: Provides a setting range from 25°C to 65°C.
- Remote Sensing: Includes a 2-meter capillary for positioning the sensing bulb away from the valve.
- Self-Acting Control: Operates without electricity or compressed air.
- Cooling Response: Causes the associated WVTS valve to open as sensor temperature rises.
- Defined Sensor Limit: Permits a maximum sensor temperature of 90°C.
- Integrated Assembly: Includes the control element and spring housing.
- Multiple Valve Sizes: Supports compatible WVTS valves from size 32 through 100.
The 016D1003 delivers the reliability and precision required for temperature-responsive cooling-water regulation in compatible industrial systems.
