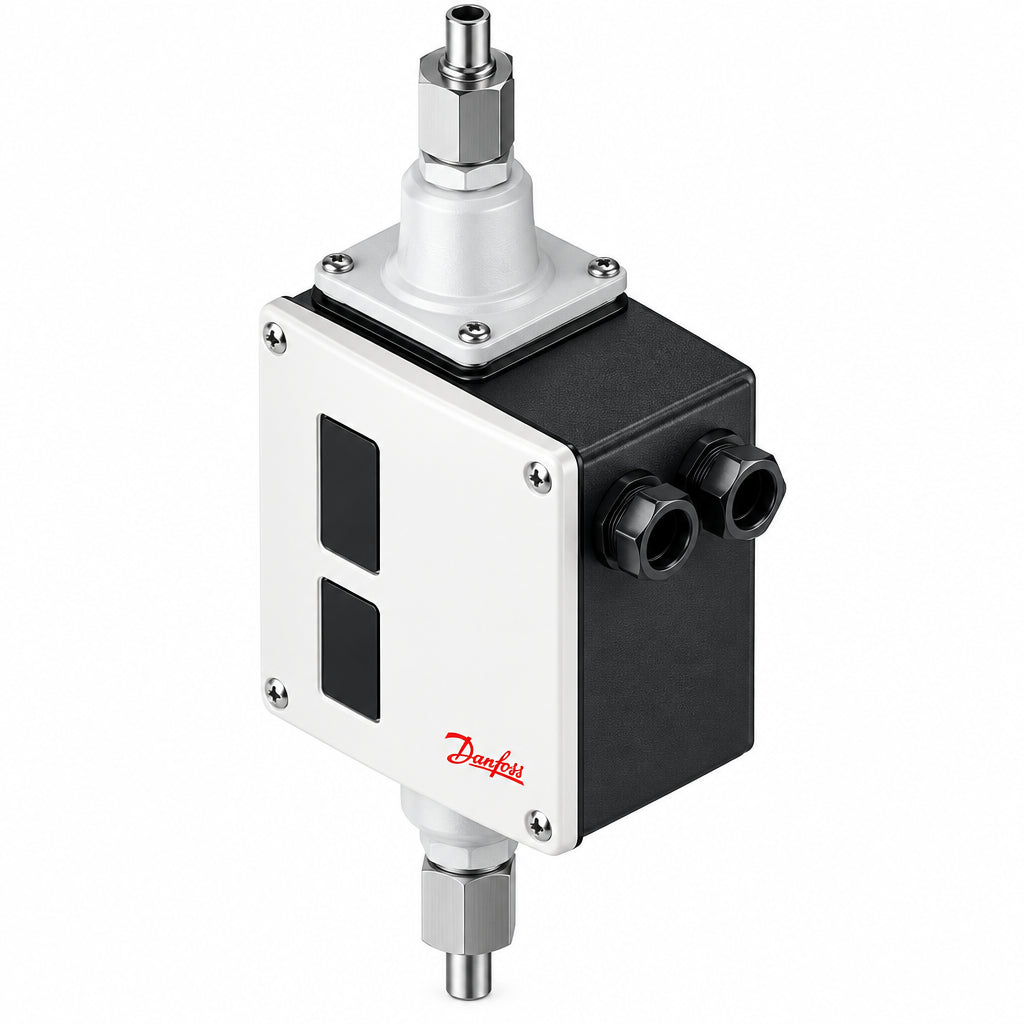

Danfoss 017D002166 RT 260A Differential Pressure Switch 0.5β4 Bar
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 017D002166
Description
The Danfoss 017D002166 is an RT 260A differential pressure switch designed for pressure monitoring and control in refrigeration, air-conditioning, and industrial applications. It has an adjustable differential-pressure setting range of 0.5β4 bar, automatic reset, a 3/8-inch G pressure connection with a welding nipple, and an IP66 enclosure.Β
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC & Refrigeration Controls |
| Part Number | 017D002166 |
| Subcategory | Differential Pressure Switches |
| Series | RT |
| Model | RT 260A |
| Device Type | Differential Pressure Switch |
| Pressure Setting Range | 0.5β4 bar / 7.3β58.0 psi |
| Mechanical Differential | 0.3 bar |
| Reset Function | Automatic |
| Contact Function | SPDT |
| Contact Rating AC15 | 3 A, 400 VAC |
| Contact Rating AC1 | 10 A, 400 VAC |
| Contact Rating AC3 | 4 A, 400 VAC |
| DC13 Contact Rating | 12 W, 220β230 VDC |
| LP Bellows Operating Range | -1 to 18 bar |
| Maximum Working Pressure | 22 bar / 319.1 psi |
| Maximum Test Pressure | 25 bar / 362.6 psi |
| Pressure Connection | G 3/8 |
| Connection Standard | ISO 228-1 |
| Electrical Connection | 2 Γ Pg 13.5 |
| Enclosure Rating | IP66 |
| Ambient Temperature | -50Β°C to +70Β°C / -58Β°F to +158Β°F |
| Refrigerants | Compatible with specified refrigerants including R134a, R404A, R407C, R507C and R717 |
| Approvals | CCC, CE, RINA, RMRS and others |
| Weight | 2.2 lb |
Information About 017D002166
The 017D002166 is a Danfoss RT 260A differential pressure switch with an SPDT contact function. It is designed for applications requiring automatic switching in response to differential-pressure changes and has a 0.3 bar mechanical differential. The unit has a maximum working pressure of 22 bar and a maximum test pressure of 25 bar. Danfoss specifies an ambient operating temperature range from -50Β°C to +70Β°C.
Key Features:
- Differential Pressure Control: Monitors differential pressure for refrigeration and HVAC control applications.
- Adjustable Range: Provides a 0.5β4 bar differential-pressure setting range.
- Automatic Reset: Automatically returns the switch to its normal operating state after the pressure condition changes.
- SPDT Contact: Provides a single-pole double-throw switching configuration.
- 3/8-Inch Connection: Uses a G 3/8 pressure connection with a welding nipple.
- IP66 Enclosure: Provides protection against dust and water ingress for suitable industrial installations.
- Wide Temperature Range: Supports ambient temperatures from -50Β°C to +70Β°C.
- High Pressure Rating: Supports a maximum working pressure of 22 bar and a maximum test pressure of 25 bar.
The 017D002166 provides pressure switching and monitoring functions required for compatible refrigeration, HVAC, and industrial pressure-control systems.
