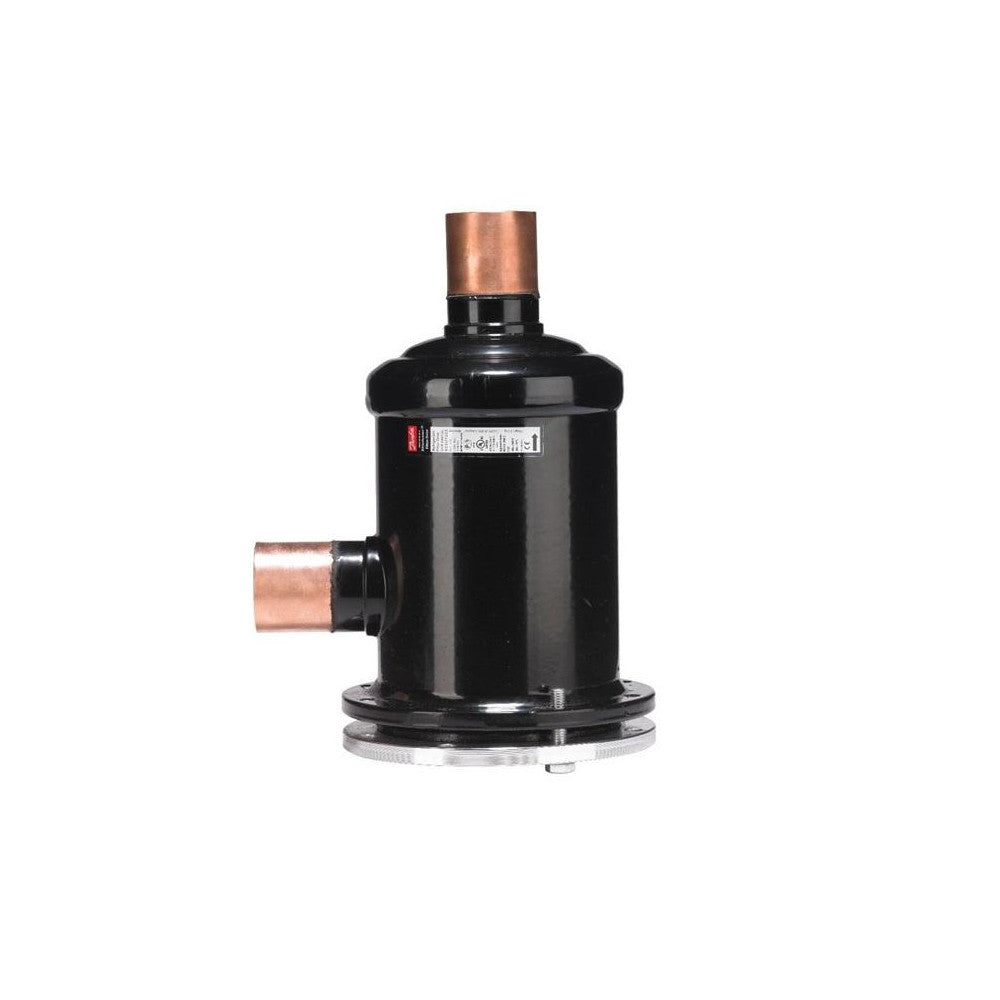

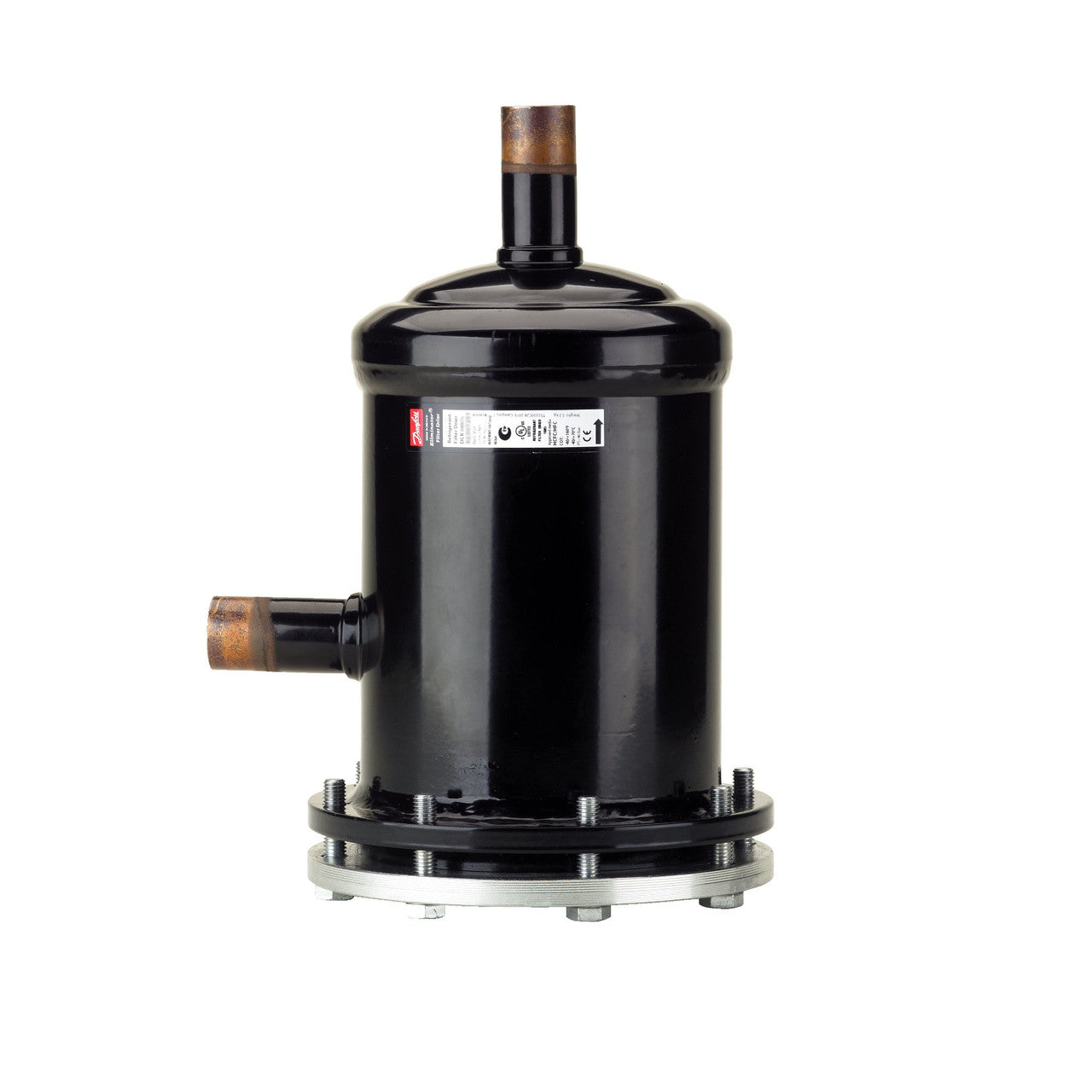

Danfoss 023U7264 ELIMINATOR DCR 09617s 2-1/8" Filter Drier Shell
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 023U7264
Description
The Danfoss 023U7264 is a high-capacity filter drier shell designed for use in demanding commercial refrigeration and air conditioning systems. It efficiently houses replaceable solid cores to remove moisture, dirt, and acid from liquid or suction lines. Engineered for rigorous continuous operation, this shell ensures clean and dry refrigerant flow to protect vital system components.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Refrigeration Controls |
| Part Number | 023U7264 |
| Subcategory | Filter Driers |
| Model Series | ELIMINATOR DCR |
| Model Number | DCR 09617s |
| Core Size Code | 96 cu.in. |
| Connection Size | 2-1/8 in (54 mm) |
| Connection Type | ODF Solder |
| Fitting Material | Copper |
| Max Working Pressure | 46 bar (667 psig) |
| Weight | 14.8 lbs |
Information About 023U7264
The 023U7264 is a heavy-duty ELIMINATOR DCR series filter drier shell that features a robust construction capable of withstanding maximum working pressures up to 46 bar. It accepts standard 96 cubic inch replaceable solid cores, allowing for versatile and economical maintenance without removing the shell from the system. Designed with 2-1/8 inch (54 mm) ODF solder copper connections, it integrates smoothly into large-scale commercial piping architectures. By consistently maintaining optimal refrigerant purity, it safeguards expensive compressors against premature wear and chemical degradation.
Key Features:
-
Replaceable Core Design: Allows for quick and cost-effective maintenance without cutting the shell out of the piping network.
-
High Pressure Rating: Sustains maximum working pressures up to 46 bar for use in demanding commercial systems.
-
Broad Compatibility: Operates safely with HCFC, HFC, and other common modern refrigerants in commercial cooling applications.
-
ODF Solder Connections: Features 2-1/8 inch copper fittings for secure, leak-free integration into large-diameter lines.
-
Large Capacity: Accommodates 96 cubic inch solid cores to handle high flow rates and substantial moisture loads.
-
Durable Construction: Built with heavy-duty materials to resist internal pressure fatigue and external environmental stress.
The 023U7264 delivers the reliability and precision required for strict commercial refrigeration filtration and protection.
