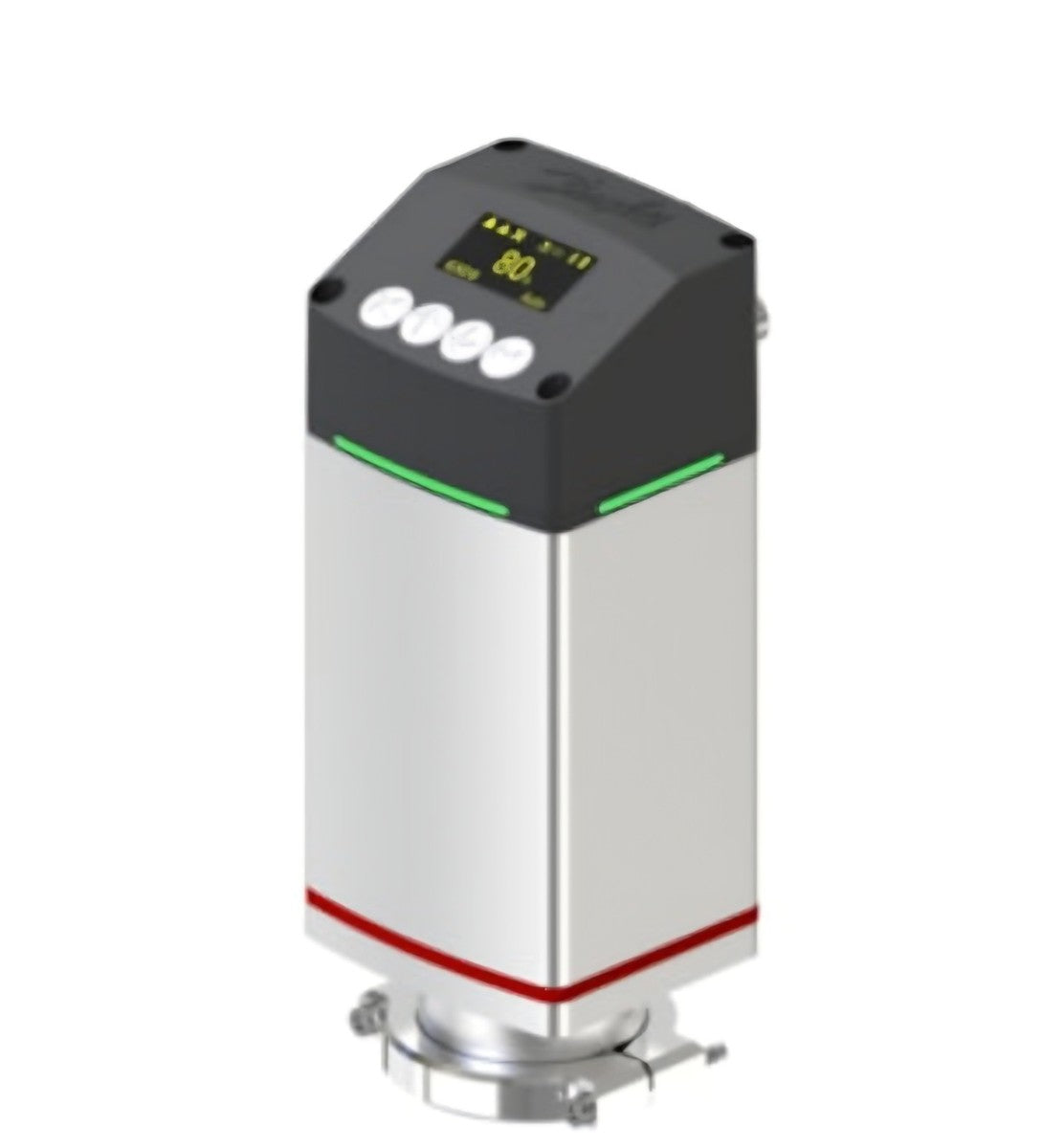

Danfoss 027H0490 ICAD 1200B Electric Valve Actuator with Bluetooth and RS485 Communication
- Regular price
- $4,089.00
- Sale price
- $4,089.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 027H0490
Description
The Danfoss 027H0490 is an ICAD 1200B electric actuator designed for precise motorized control of compatible Danfoss industrial refrigeration valves. It operates from a 24-volt direct-current supply and combines electronic valve positioning with an integrated display, Bluetooth connectivity, and RS485 communication for local and remote control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Controls & Indicators |
| Part Number | 027H0490 |
| Subcategory | Control |
| Series | ICAD |
| Product Type | ICAD 1200B Electric Valve Actuator |
| Compatible Valves | CVE, ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150 |
| Supply Voltage | 24 volts direct current |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Current Load | 2 amperes |
| Analog Current Input | 4–20 milliamperes |
| Analog Voltage Input | 2–10 volts direct current |
| Analog Output | 4–20 milliamperes |
| Communication | Bluetooth and RS485 |
| Display Type | OLED |
| Electrical Connector | M12 |
| Enclosure Rating | IP67, approximately NEMA 6 |
| Ambient Temperature Range | -22°F to 122°F |
| Weight | 5.06 lbs |
Information About 027H0490
The 027H0490 is a Danfoss ICAD 1200B actuator developed as part of the ICAD electronic actuator family for industrial refrigeration control systems. The unit is designed for use with Danfoss ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150, and CVE valves and incorporates an OLED display for configuration and operating information. It accepts 4–20 milliampere and 2–10 volt direct-current analog control signals and provides RS485 and Bluetooth communication for integration, commissioning, and monitoring. Its IP67 enclosure, M12 electrical connection, wide ambient temperature range, and electronic positioning architecture support installation in demanding refrigeration and process-control environments.
Key Features:
- ICAD 1200B Actuator: Provides electrically driven positioning for compatible Danfoss motor-operated refrigeration and regulating valves.
- Broad Valve Compatibility: Designed for CVE and ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, and ICM 150 valve configurations.
- 24-Volt Power Supply: Operates from a nominal 24-volt direct-current Class 2 supply with a specified tolerance of -15% to +10%.
- Analog Signal Control: Supports 4–20 milliampere and 2–10 volt direct-current input signals for proportional valve positioning.
- Integrated OLED Display: Includes an onboard display for accessing actuator operating information and configuration parameters.
- Bluetooth Connectivity: Provides wireless communication for supported commissioning, configuration, and service functions.
- RS485 Communication: Incorporates an RS485 interface for wired digital communication within compatible control installations.
- Protected Enclosure: Uses an IP67 enclosure with an approximate NEMA 6 classification for resistance to environmental exposure.
The 027H0490 delivers the reliability and precision required for electronic valve positioning, refrigerant flow regulation, and automated control in industrial refrigeration systems.
Description
The Danfoss 027H0490 is an ICAD 1200B electric actuator designed for precise motorized control of compatible Danfoss industrial refrigeration valves. It operates from a 24-volt direct-current supply and combines electronic valve positioning with an integrated display, Bluetooth connectivity, and RS485 communication for local and remote control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Controls & Indicators |
| Part Number | 027H0490 |
| Subcategory | Control |
| Series | ICAD |
| Product Type | ICAD 1200B Electric Valve Actuator |
| Compatible Valves | CVE, ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150 |
| Supply Voltage | 24 volts direct current |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Current Load | 2 amperes |
| Analog Current Input | 4–20 milliamperes |
| Analog Voltage Input | 2–10 volts direct current |
| Analog Output | 4–20 milliamperes |
| Communication | Bluetooth and RS485 |
| Display Type | OLED |
| Electrical Connector | M12 |
| Enclosure Rating | IP67, approximately NEMA 6 |
| Ambient Temperature Range | -22°F to 122°F |
| Weight | 5.06 lbs |
Information About 027H0490
The 027H0490 is a Danfoss ICAD 1200B actuator developed as part of the ICAD electronic actuator family for industrial refrigeration control systems. The unit is designed for use with Danfoss ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150, and CVE valves and incorporates an OLED display for configuration and operating information. It accepts 4–20 milliampere and 2–10 volt direct-current analog control signals and provides RS485 and Bluetooth communication for integration, commissioning, and monitoring. Its IP67 enclosure, M12 electrical connection, wide ambient temperature range, and electronic positioning architecture support installation in demanding refrigeration and process-control environments.
Key Features:
- ICAD 1200B Actuator: Provides electrically driven positioning for compatible Danfoss motor-operated refrigeration and regulating valves.
- Broad Valve Compatibility: Designed for CVE and ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, and ICM 150 valve configurations.
- 24-Volt Power Supply: Operates from a nominal 24-volt direct-current Class 2 supply with a specified tolerance of -15% to +10%.
- Analog Signal Control: Supports 4–20 milliampere and 2–10 volt direct-current input signals for proportional valve positioning.
- Integrated OLED Display: Includes an onboard display for accessing actuator operating information and configuration parameters.
- Bluetooth Connectivity: Provides wireless communication for supported commissioning, configuration, and service functions.
- RS485 Communication: Incorporates an RS485 interface for wired digital communication within compatible control installations.
- Protected Enclosure: Uses an IP67 enclosure with an approximate NEMA 6 classification for resistance to environmental exposure.
The 027H0490 delivers the reliability and precision required for electronic valve positioning, refrigerant flow regulation, and automated control in industrial refrigeration systems.
