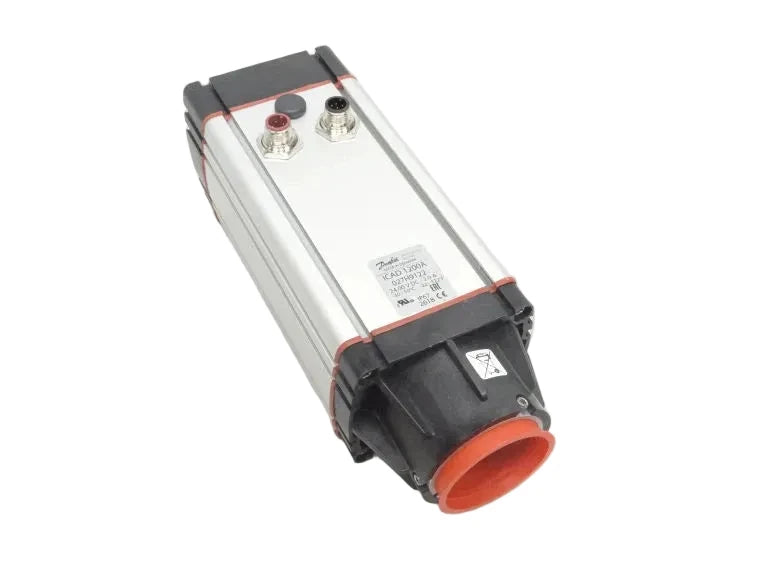

Danfoss 027H9122 ICAD 1200A Motor Actuator for ICM Valves
- Regular price
- $3,055.00
- Sale price
- $3,055.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 027H9122
Description
The Danfoss 027H9122 is an ICAD 1200A motor actuator designed for electronic control of ICM pressure and temperature regulating valves. It operates on a 24 V DC supply and supports modulating analog or digital ON/OFF control signals. The actuator is used with compatible ICM valve sizes including ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, and ICM 150.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC |
| Part Number | 027H9122 |
| Subcategory | HVAC Actuators |
| Product Series | ICAD 1200A |
| Product Group | Pressure and temperature regulating valves |
| Supply Voltage | 24 V DC |
| Voltage Tolerance | -15% to +10% |
| Control Signals | 4–20 mA, 2–10 V, digital ON/OFF |
| Analog Input Current Load | 200 Ohm |
| Analog Input Voltage Load | 10,000 Ohm |
| Compatible Valves | ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, ICM 150 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Packing Format | Single pack |
| Quantity per Pack | 1 pc |
| Weight | 4.20 lbs |
Information About 027H9122
The 027H9122 is part of the Danfoss ICAD actuator series developed for ICM valve applications in refrigeration and HVAC systems. Its integrated MMI provides a continuous display of the valve opening degree and supports setup for different control requirements. The actuator accepts analog control signals such as 4–20 mA and 2–10 V, as well as digital ON/OFF signals. This version is supplied without cables and uses an NPN transistor output configuration for compatible control systems.
Key Features:
- ICAD 1200A Series: Designed for operation with Danfoss ICM pressure and temperature regulating valves.
- 24 V DC Supply: Operates from a 24 V DC power supply with a specified tolerance of -15% to +10%.
- Analog Control: Supports modulating analog signals including 4–20 mA and 2–10 V.
- Digital Control: Allows operation through a digital ON/OFF control signal.

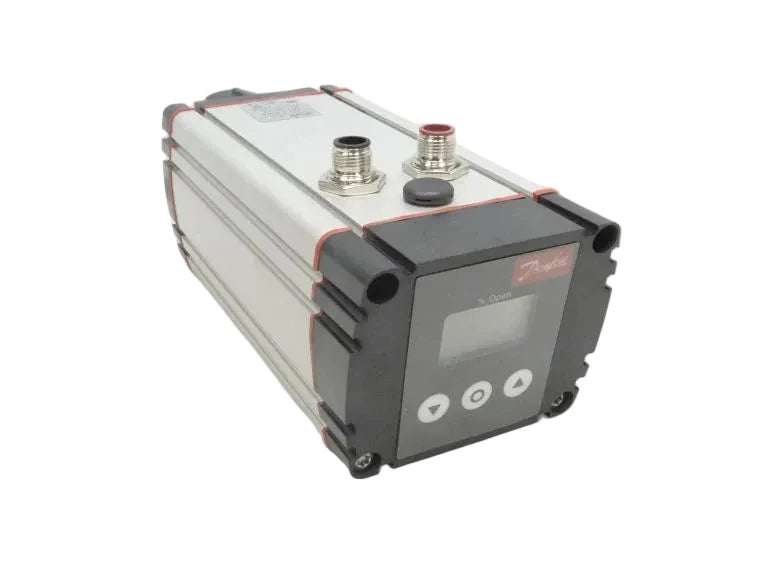

- Integrated MMI: Provides a continuous display of the valve opening degree for setup and monitoring.
- Valve Compatibility: Suitable for ICM 40, ICM 50, ICM 65, ICM 100, ICM 125, and ICM 150 valves.
- NPN Transistor Output: Uses an NPN transistor configuration for the output.
- Wide Temperature Range: Designed for operating temperatures from -30°C to 50°C (-22°F to 122°F).
The 027H9122 delivers the reliability and precision required for electronic control of Danfoss ICM pressure and temperature regulating valves.
