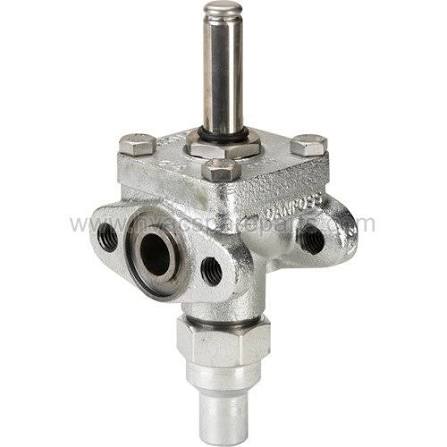

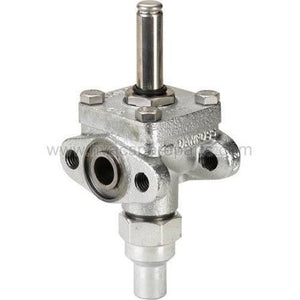

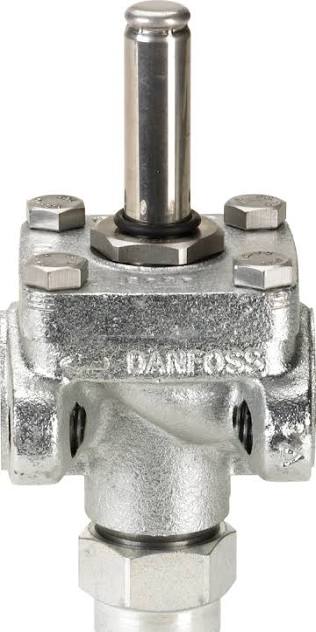

Danfoss 032F6216 EVRAT Normally Closed Refrigeration Solenoid Valve Body
- Regular price
- $975.00
- Sale price
- $975.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 032F6216
Description
The Danfoss 032F6216 is an EVRAT 15 normally closed solenoid valve body for refrigerant-flow control in compatible refrigeration systems. Its servo-diaphragm mechanism supports operation from zero differential pressure, with a maximum working pressure of 42 bar.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Refrigeration Valves |
| Part Number | 032F6216 |
| Subcategory | Solenoid Valve Bodies |
| Product Type | EVRAT 15 |
| Product Family | EVRA / EVRAT |
| Valve Function | Normally closed (NC) |
| Operating Mechanism | Servo-diaphragm |
| Body Material | Cast iron |
| Inlet and Outlet Interfaces | Flanged; flange sets selected separately |
| Orifice Diameter | 15 mm |
| Kv Flow Coefficient | 2.7 m³/h |
| Cv Flow Coefficient | 3.12 |
| Maximum Working Pressure | 42 bar (610 psig) |
| Minimum Opening Differential Pressure | 0 bar |
| Media Temperature Range | −40°C to 105°C (−40°F to 221°F) |
| Maximum Defrost Temperature | 130°C (approximately 266°F) |
| Weight | 1.521 kg (3.35 lb) |
Information About 032F6216
The 032F6216 is part of the Danfoss EVRA/EVRAT refrigeration solenoid valve range. Its cast-iron body has flanged inlet and outlet interfaces for use with separately selected flange sets. This configuration includes a manual-operation option but is supplied without a solenoid coil. Listed refrigerants include ammonia R717, R22, R134a, and R404A, subject to the applicable operating limits.
Key Features:
- Normally Closed Function: Closes when the matched solenoid coil is de-energized.
- Servo-Diaphragm Operation: Uses the EVRAT operating mechanism to control refrigerant flow.
- Zero Minimum Differential: Has a specified minimum opening differential pressure of 0 bar.
- Manual Operation: Provides a manual-opening option for servicing.
- Flanged Connections: Accommodates separately selected inlet and outlet flange sets.
- Cast-Iron Body: Provides the structural housing for the valve assembly.
- Refrigerant Compatibility: Supports listed refrigerants, including R717 ammonia.
- Defrost Temperature Allowance: Permits media temperatures up to 130°C during defrosting.
The 032F6216 delivers the reliability and precision required for refrigerant shut-off and flow switching in compatible refrigeration circuits.
