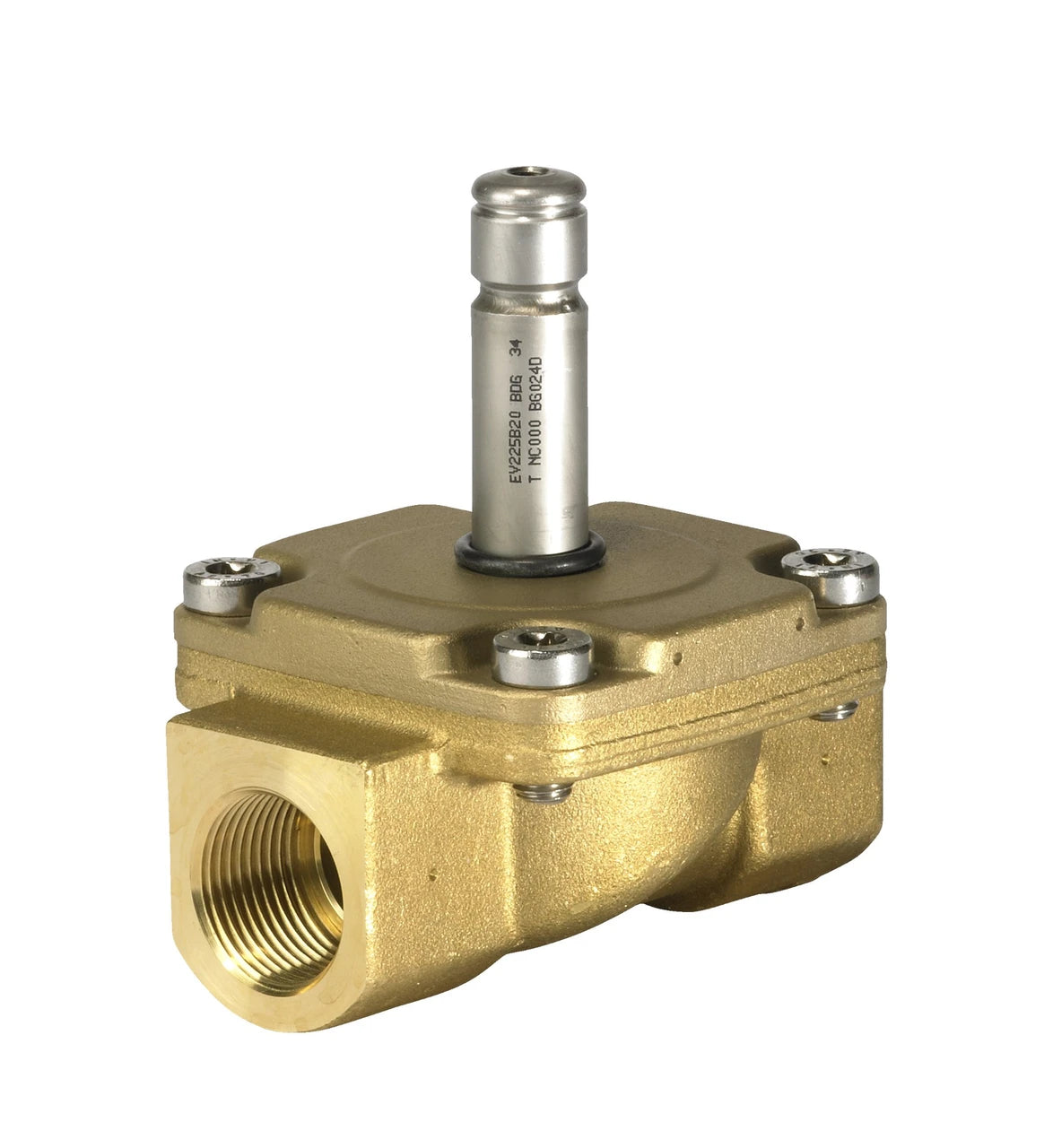

Danfoss 032U3806 EV225B Normally Closed Steam Solenoid Valve Body
- Regular price
- $535.00
- Sale price
- $535.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 032U3806
Description
The Danfoss 032U3806 is an EV225B series, servo-operated 2/2-way solenoid valve designed for controlling steam and other compatible media in industrial systems. It features a normally closed configuration, a 20 mm orifice, a DZR brass body, and PTFE sealing, with a G 3/4-inch threaded connection for installation in compatible piping systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Valves |
| Part Number | 032U3806 |
| Subcategory | Solenoid Valves |
| Series | EV225B |
| Valve Type | Servo-operated solenoid |
| Valve Function | 2/2-way, normally closed |
| Connection Size | G 3/4 inch |
| Connection Standard | ISO 228-1 |
| Orifice Diameter | 20 mm |
| Flow Coefficient | Kv 5 m³/h |
| Body Material | DZR brass |
| Operating Principle | Servo-operated diaphragm |
| Differential Pressure | 0.3–10 bar |
| Max. Working Pressure | 10 bar |
| Max. Test Pressure | 15 bar |
| Media Temperature | -10 to +185°C with AC coil |
| Max. Media Viscosity | 50 cSt |
| Weight | 1.4 kg |
Information About 032U3806
The 032U3806 is a valve body from the Danfoss EV225B range, developed for applications involving steam and elevated media temperatures. Its servo-operated diaphragm mechanism uses a pressure differential to control the opening and closing of the valve. The dezincification-resistant brass body and PTFE seal are designed to withstand demanding operating conditions and compatible, mildly aggressive media. This part number identifies the valve body without a solenoid coil, so a compatible coil must be selected separately for electrical operation.
Key Features:
- Valve Configuration: 2/2-way, normally closed operation.
- Operating Principle: Servo-operated diaphragm mechanism.
- Connection Size: G 3/4-inch threaded connection according to ISO 228-1.
- Orifice Diameter: 20 mm for controlled media flow.
- Body Material: DZR brass for improved resistance to dezincification.
- Seal Material: PTFE for suitable thermal and chemical resistance.
- High-Temperature Capability: Suitable for media temperatures up to 185°C with a compatible AC coil configuration.
The 032U3806 delivers the reliability and precision required for steam control, industrial process systems, and high-temperature fluid applications.
