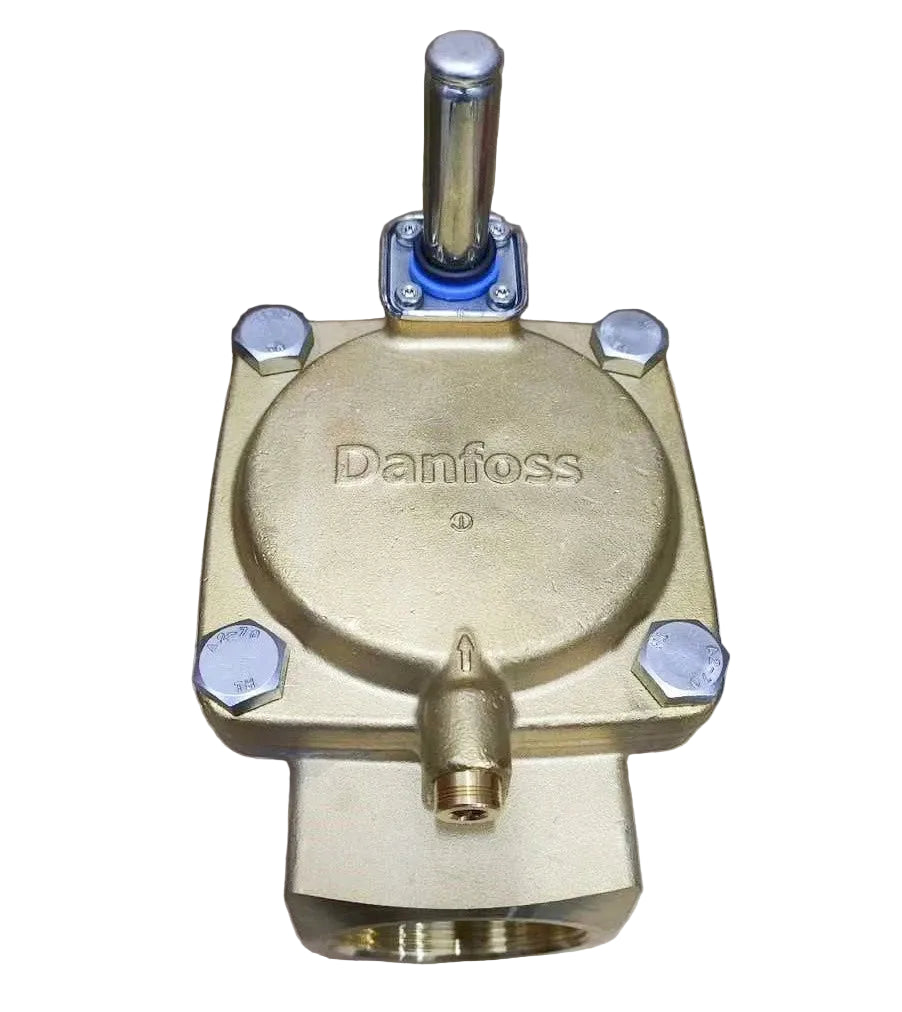

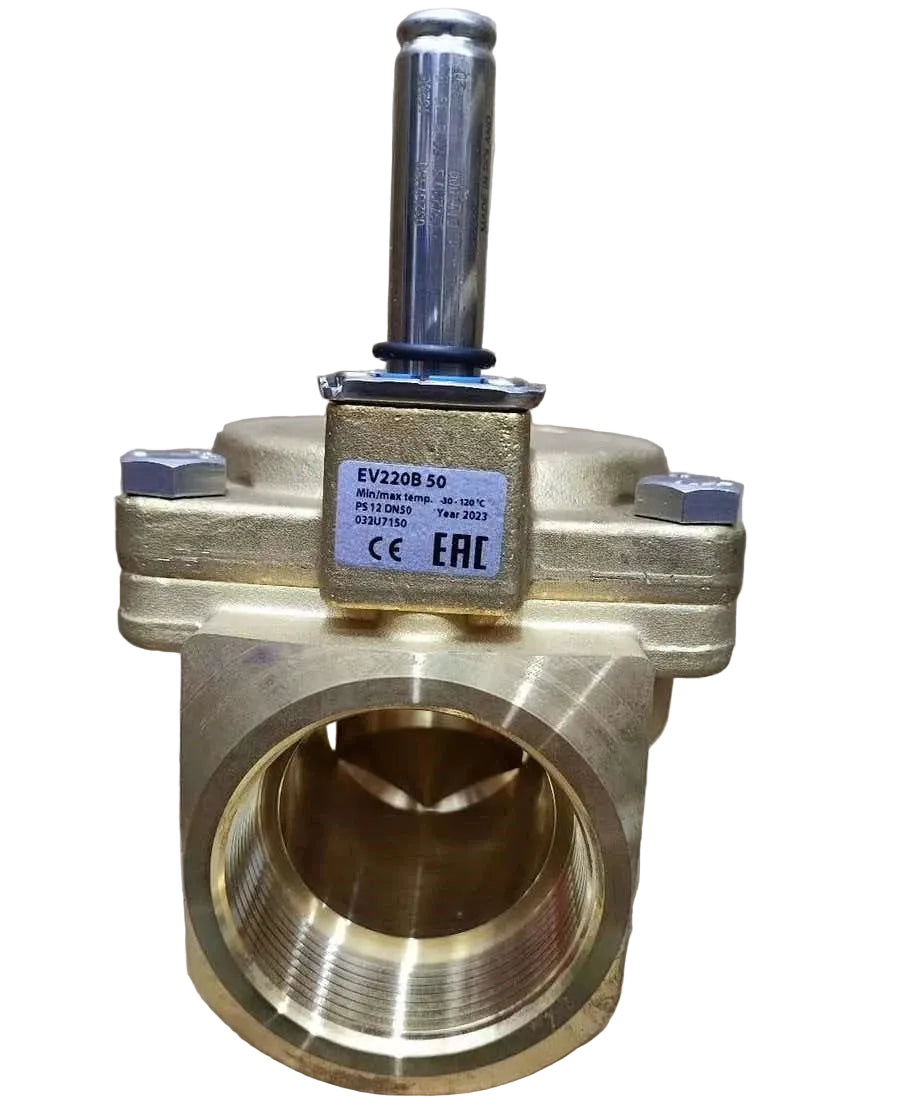

Danfoss 032U7150 EV220B 50 mm Normally Closed Servo-Operated Solenoid Valve
- Regular price
- $645.00
- Sale price
- $645.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 032U7150
Description
The Danfoss 032U7150 is an EV220B series, normally closed, servo-operated solenoid valve designed to control fluid flow in industrial systems. It features a 50 mm orifice, a brass valve body, and EPDM seals for use with compatible media, including water and brine.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Valves |
|
Part Number |
032U7150 |
|
Subcategory |
Solenoid Valves |
|
Product Series |
EV220B 15–50 |
|
Valve Type |
Servo-operated solenoid valve |
|
Valve Function |
Normally closed (NC) |
|
Number of Ways / Positions |
2/2-way |
|
Orifice Diameter |
50 mm |
|
Connection Size |
G 2 in |
|
Connection Standard |
ISO 228-1 |
|
Valve Body Material |
Brass |
|
Differential Pressure, Minimum |
0.3 bar |
|
Differential Pressure, Maximum |
12 bar |
|
Maximum Test Pressure |
18 bar |
|
Maximum Ambient Temperature |
80°C |
|
Recommended Media |
Water and brine; compatible neutral media |
|
Actuator Size |
13.5 mm |
|
Pilot Filter |
Integrated |
|
Weight |
4.69 kg |
Information About 032U7150
The 032U7150 is part of the Danfoss EV220B 15–50 series of indirect servo-operated, two-way solenoid valves designed for fluid control applications. Its construction incorporates a brass body, brass connections, and an EPDM diaphragm seal to support operation with compatible neutral media. The integrated pilot filter helps protect the pilot orifice from contamination, while the adjustable closing time supports controlled valve operation. The valve uses a G 2-inch threaded connection conforming to ISO 228-1 and requires a minimum differential pressure of 0.3 bar for servo-assisted operation.
Key Features:
-
Normally Closed Function: Keeps the valve closed when the solenoid is de-energized.
-
Servo-Operated Design: Uses diaphragm-based indirect actuation for fluid control.
-
Brass Valve Body: Provides a durable construction for compatible industrial media.
-
50 mm Orifice: Supports high-volume fluid flow in appropriately designed systems.
-
EPDM Seals: Provide sealing for compatible water, brine, and neutral media.
-
Built-In Pilot Filter: Helps protect the pilot mechanism from contaminants.
-
Threaded G 2 Connection: Uses an ISO 228-1-compliant connection for compatible piping.
-
Operating Pressure Range: Requires a differential pressure of 0.3–12 bar for normal operation.
The 032U7150 delivers the reliability and precision required for industrial fluid control, water systems, and compatible process applications.
