Danfoss 034G0501 ETS 100 Electronic Expansion Valve
- Regular price
- $985.00
- Sale price
- $985.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 034G0501
Description

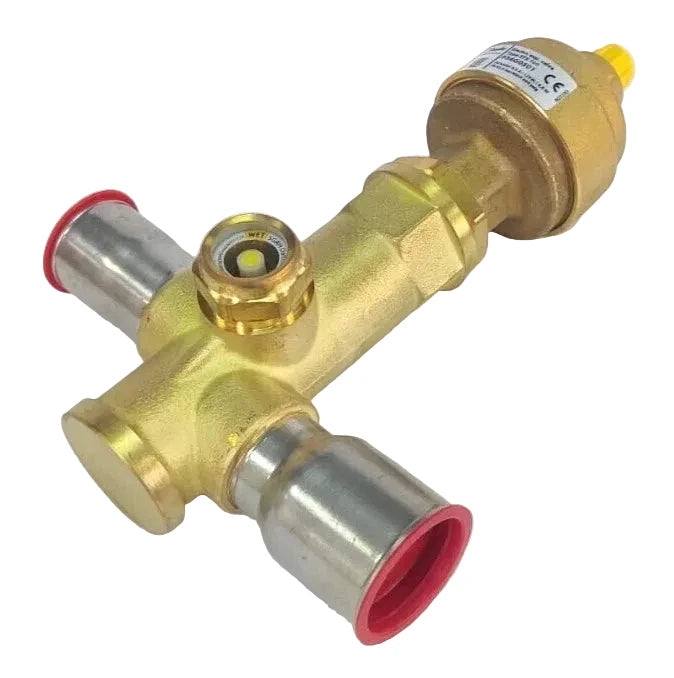

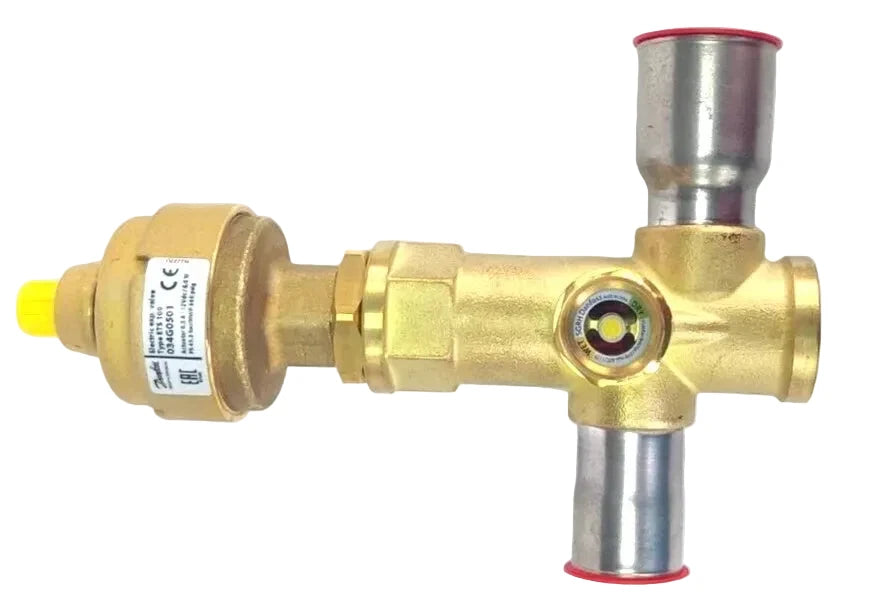

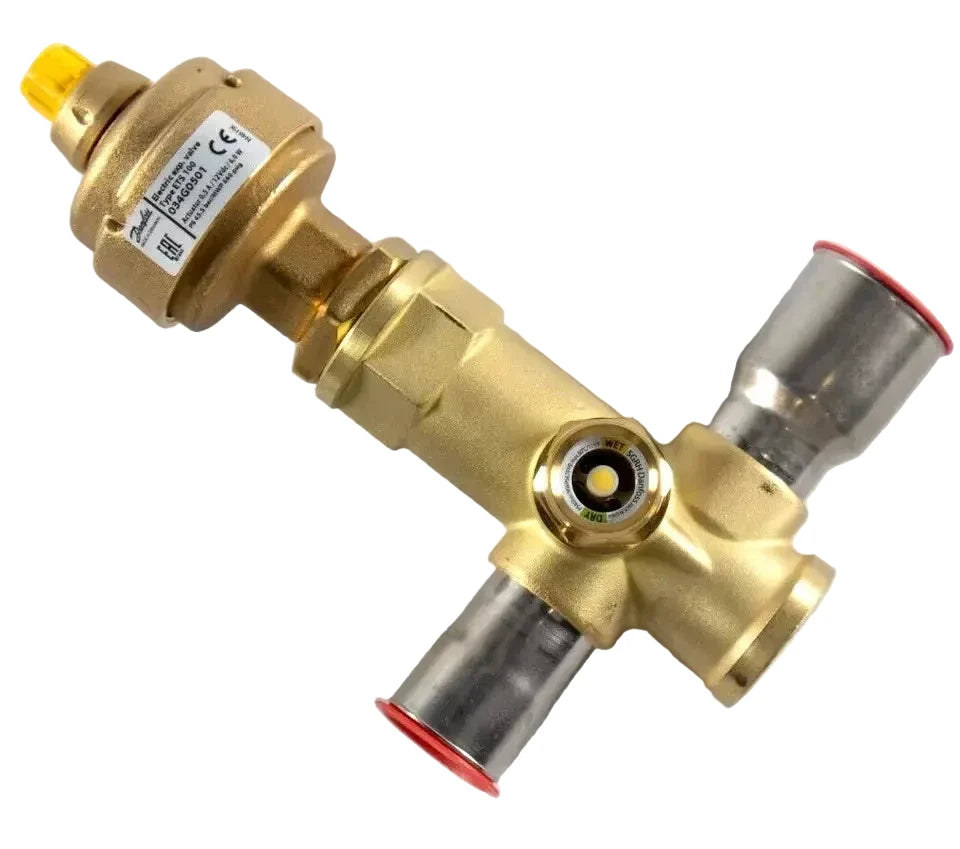

The Danfoss 034G0501 is an ETS 100 electronic expansion valve designed to regulate refrigerant flow in commercial refrigeration and air-conditioning systems. It uses a bipolar stepper motor for precise flow control and supports bidirectional refrigerant flow, with 1-1/8-inch inlet and 1-3/8-inch outlet ODF solder connections.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC and Refrigeration |
| Part Number | 034G0501 |
| Subcategory | Electronic Expansion Valves |
| Product Series | ETS 100 |
| Product Type | Electronic Refrigerant Expansion Valve |
| Actuator Type | Bipolar stepper motor |
| Flow Direction | Bidirectional |
| Inlet Connection | 1-1/8 in ODF solder |
| Outlet Connection | 1-3/8 in ODF solder |
| Maximum Working Pressure | 45.5 bar (660 psig) |
| Maximum Operating Differential Pressure | 33 bar (478.6 psi) |
| Electrical Connection | 4-pin M12 |
| Cable Length | 2 m (6.6 ft) |
| Enclosure Rating | IP67 |
| Ambient Temperature Range | −40 to +60 °C |
| Compatible Controllers | Danfoss EKE 1A, EKE 1B, EKE 1C |
| Weight | 3.79 lb |
Information About 034G0501
The 034G0501 is a Danfoss ETS 100 electronic expansion valve for HVAC and refrigeration applications. Its stepper-motor actuator adjusts the valve opening in response to commands from a compatible electronic controller. The valve has a balanced port design and supports refrigerant flow in both directions. It is rated for a maximum working pressure of 45.5 bar (660 psig) and requires a compatible controller for operation.
-
Brand and Series: Danfoss ETS 100 electronic expansion valve.
-
Part Number: 034G0501.
-
Valve Type: Electrically operated refrigerant expansion valve.
-
Actuator: Bipolar stepper motor.
-
Flow Direction: Bidirectional.
-
Inlet Connection: 1-1/8-inch ODF solder connection.
-
Outlet Connection: 1-3/8-inch ODF solder connection.
-
Maximum Working Pressure: 45.5 bar (660 psig).
The 034G0501 provides electronically controlled refrigerant metering for compatible HVAC and refrigeration systems.
