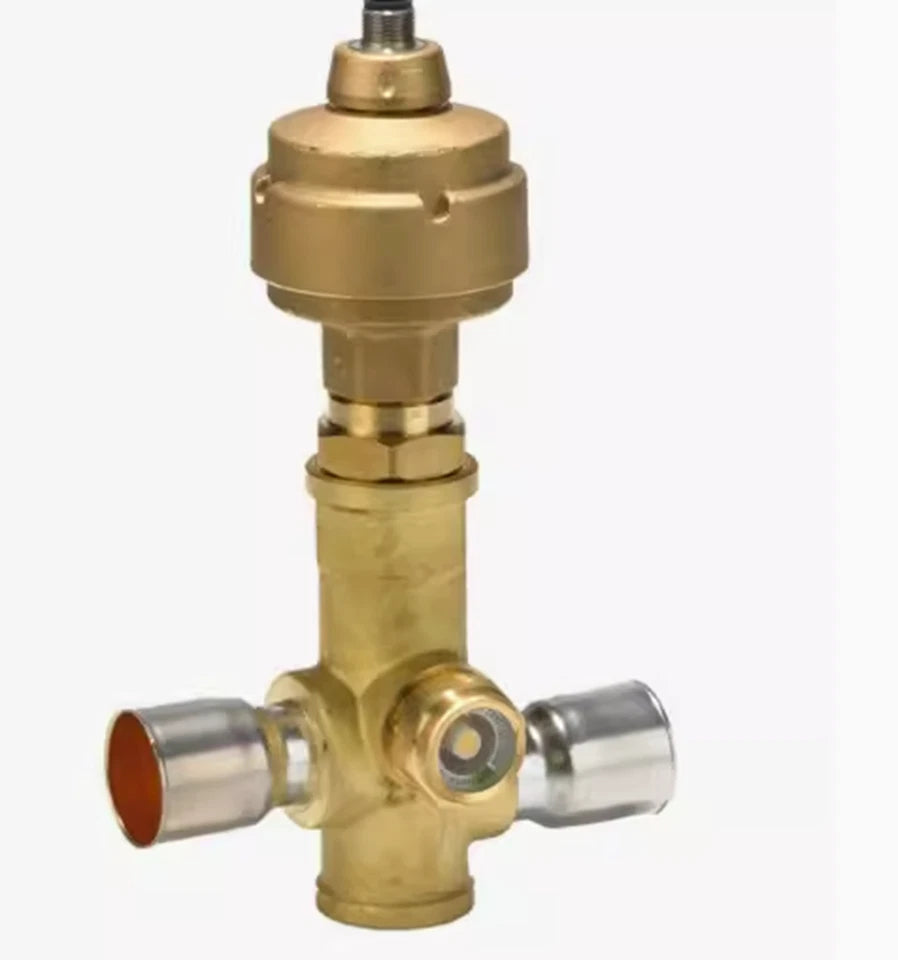

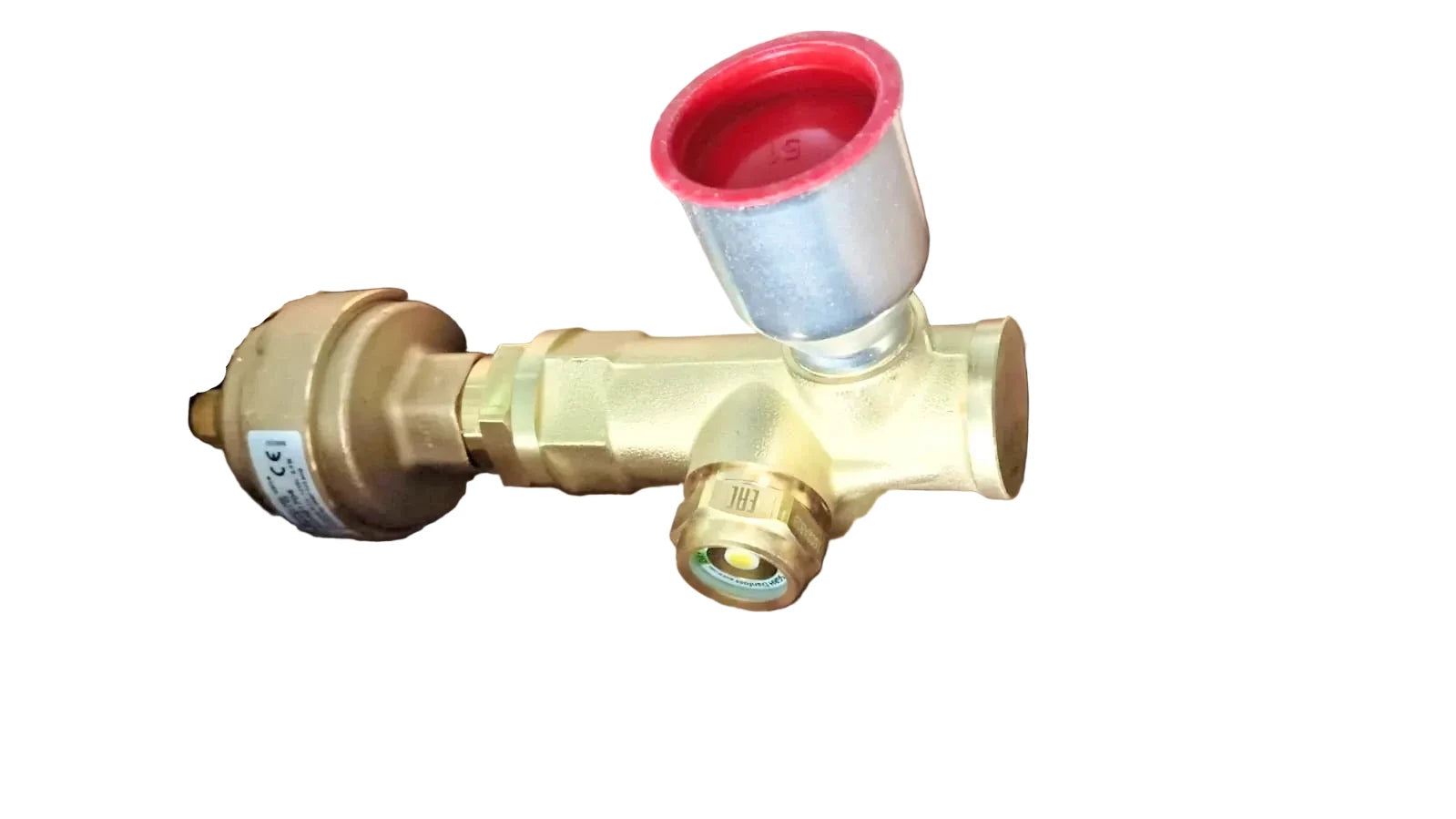

Danfoss 034G1704 ETS 50 Electronic Expansion Valve
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 034G1704
Description
The Danfoss 034G1704 ETS 50 Electric Expansion Valve provides electronically controlled refrigerant metering for compatible refrigeration and air-conditioning systems. Its stepper-motor design supports precise flow regulation, while its IP67 enclosure rating and bi-directional flow capability support installation in demanding refrigeration applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC & Refrigeration |
| Part Number | 034G1704 |
| Subcategory | Electronic Expansion Valves |
| Product Model | ETS 50 |
| Product Type | Electric Expansion Valve |
| Motor Type | Bipolar stepper motor |
| Flow Direction | Bidirectional |
| Inlet Connection | 1⅛ in ODF solder |
| Outlet Connection | 1⅜ in ODF solder |
| Electrical Connection | Male M12, 4-pin |
| Supply Voltage | 11.5–13.8 V DC |
| Maximum Working Pressure | 45.5 bar |
| Maximum Differential Pressure | 33 bar |
| Enclosure Protection | IP67 |
| Compatible Controllers | Danfoss EKE 1A, EKE 1B, EKE 1C |
| Weight | 3.25 lb |
Information About 034G1704
The 034G1704 belongs to Danfoss's ETS series of electronic expansion valves. It uses a bipolar motor and is compatible with Danfoss EKE 1A, EKE 1B, and EKE 1C controllers. The valve has a maximum working pressure of 45.5 bar and a maximum operating differential pressure of 33 bar in either flow direction. Its solder-type ODF connections and compatibility with multiple refrigerants make it suitable for a range of refrigeration system configurations.
Key Features:
-
Electronic Expansion Control: Regulates refrigerant flow through electronic stepper-motor actuation.
-
ETS 50 Design: Designed for commercial refrigeration and air-conditioning applications.
-
Bidirectional Flow: Supports refrigerant flow in both directions.
-
Refrigerant Compatibility: Compatible with refrigerants including R134a, R404A, R407C, R410A, R448A, R449A, and R513A, subject to system requirements.
-
Solder Connections: Features a 1⅛-inch inlet and a 1⅜-inch outlet using ODF solder connections.
-
IP67 Protection: Provides a sealed enclosure for protection against dust and water ingress.
-
Controller Compatibility: Designed for use with Danfoss EKE 1A, EKE 1B, and EKE 1C controllers.
-
Pressure Rating: Supports a maximum working pressure of 45.5 bar and a maximum differential pressure of 33 bar.
The 034G1704 delivers the reliability and precision required for electronic refrigerant metering in commercial HVAC and refrigeration systems.
