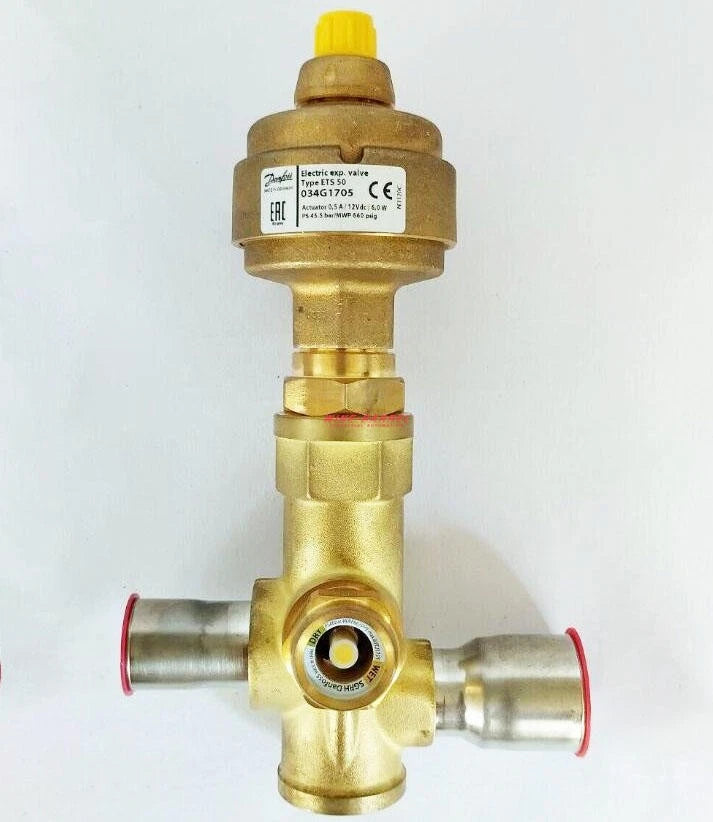

Danfoss 034G1705 ETS 50 Electronic Expansion Valve 7/8 x 1-1/8 Inch M12 IP67
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 034G1705
Description
The Danfoss 034G1705 is an ETS 50 electronic expansion valve designed for precise refrigerant flow regulation in commercial refrigeration and air conditioning systems. Featuring a balanced-port design, stepper motor control, and 7/8-inch inlet with 1-1/8-inch outlet connections, it supports accurate refrigerant metering and stable evaporator operation.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Refrigeration & HVAC Controls |
|
Part Number |
034G1705 |
|
Subcategory |
Electronic Expansion Valves |
|
Series |
ETS |
|
Model |
ETS 50 |
|
Product Type |
Electronic Refrigerant Expansion Valve |
|
Actuation Type |
Electric Stepper Motor |
|
Valve Design |
Balanced Port |
|
Flow Direction |
Straightway |
|
Inlet Connection Size |
7/8 in (22 mm) |
|
Outlet Connection Size |
1-1/8 in (29 mm) |
|
Connection Material |
Bi-Metal, Steel/Copper |
|
Electrical Connection |
M12, 4-Pin Male |
|
Enclosure Protection |
IP67 |
|
Compatible Controllers |
Danfoss EKE 1A, EKE 1B, EKE 1C |
|
Ambient Temperature Range |
-40°C to +60°C (-40°F to +140°F) |
|
Maximum Refrigerant Temperature |
+65°C (+150°F) |
|
Compatible Lubricant Types |
AB, MO, PAG, POE, PAO, PVE |
|
Connection Code |
3002:X:22 / 3002:X:29 |
|
Electrical Control Method |
Stepper Motor Positioning |
|
Approvals |
CE, EAC, UKCA, UL, UA |
|
China RoHS Compliance |
Yes, with Exemption 7.3 |
|
CE Marking |
Yes |
|
Battery Requirement |
None |
|
EAN |
5702428827027 |
|
Primary Applications |
Commercial Refrigeration, Chillers, Air Conditioning, Heat Pumps |
|
Weight |
3.23 lb |
Information About 034G1705
The 034G1705 is part of the Danfoss ETS Series of electronically controlled expansion valves developed for refrigeration systems requiring adjustable refrigerant flow. Its construction incorporates a balanced-port mechanism, straight-through flow configuration, and bi-metal steel/copper connections for integration into compatible refrigerant piping. The valve uses a stepper motor actuator controlled by external electronics and is compatible with Danfoss EKE 1A, EKE 1B, and EKE 1C controllers. With an IP67-rated electrical interface, M12 four-pin connection, and operating ambient temperatures from -40°C to +60°C, it supports applications in refrigeration equipment, chillers, and heat pump systems.
Key Features:
-
Electronic Refrigerant Regulation: Uses stepper motor positioning to control refrigerant flow through the expansion valve.
-
Balanced-Port Construction: Reduces the influence of pressure differential on valve positioning.
-
ETS 50 Valve Design: Provides electronic expansion control for compatible refrigeration and HVAC applications.
-
Refrigerant Connections: Features a 7/8-inch inlet and 1-1/8-inch outlet for installation in compatible piping systems.
-
Controller Compatibility: Supports Danfoss EKE 1A, EKE 1B, and EKE 1C electronic controllers.
-
M12 Electrical Interface: Incorporates a four-pin male electrical connection for actuator control.
-
IP67 Protection: Provides dust-tight protection and resistance to temporary water immersion under specified conditions.
-
Straightway Flow Configuration: Features an inline refrigerant flow path for integration into refrigeration circuits.
-
Wide Ambient Temperature Range: Supports operation from -40°C to +60°C (-40°F to +140°F).
-
Refrigerant Temperature Capability: Supports refrigerant temperatures up to +65°C (+150°F).
-
Lubricant Compatibility: Suitable for systems using AB, MO, PAG, POE, PAO, and PVE lubricants where approved.
-
Industrial Approvals: Includes CE, EAC, UKCA, UL, and UA approvals.
The 034G1705 delivers the reliability and precision required for electronic refrigerant metering, evaporator superheat regulation, and efficient cooling system operation.
