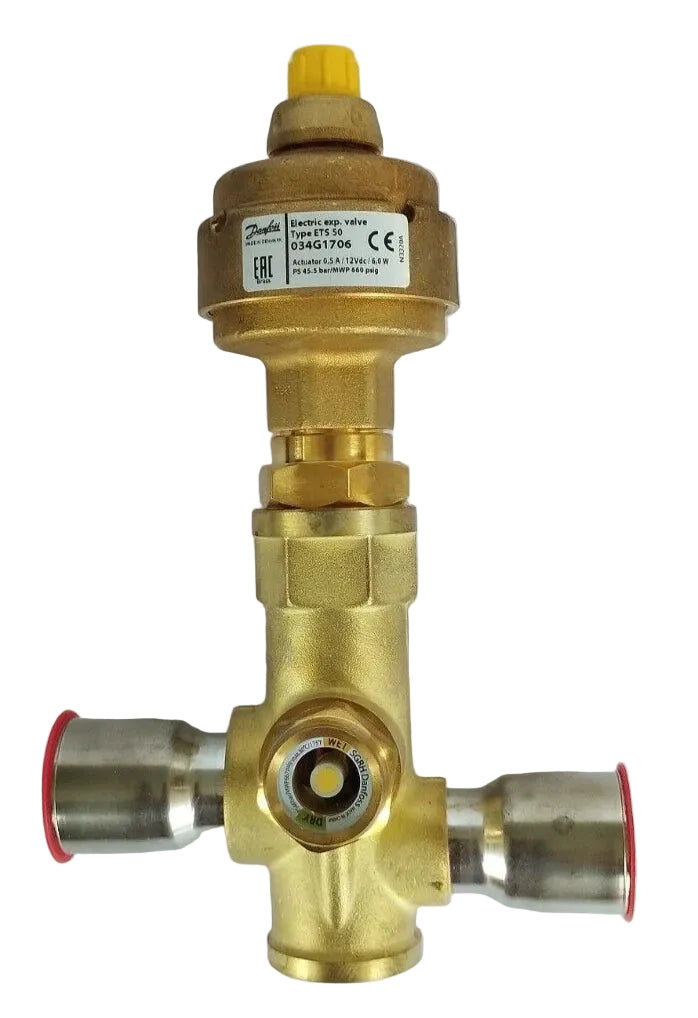

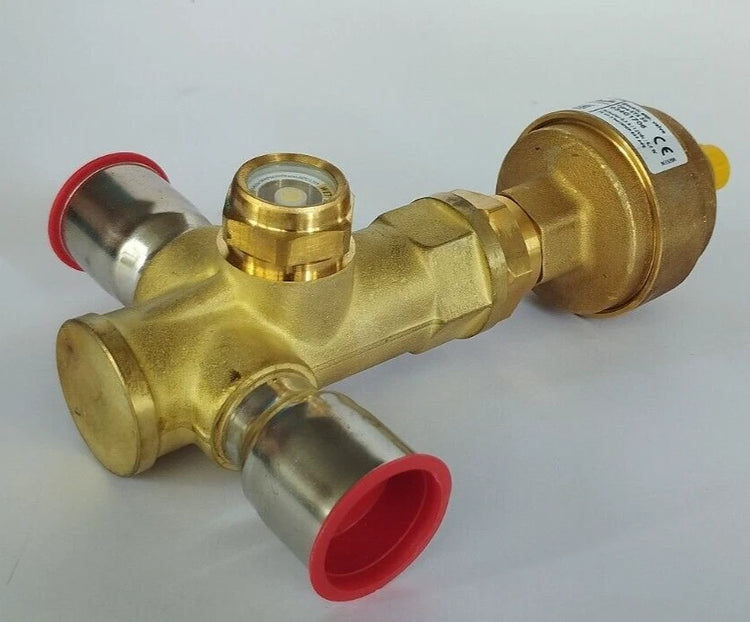

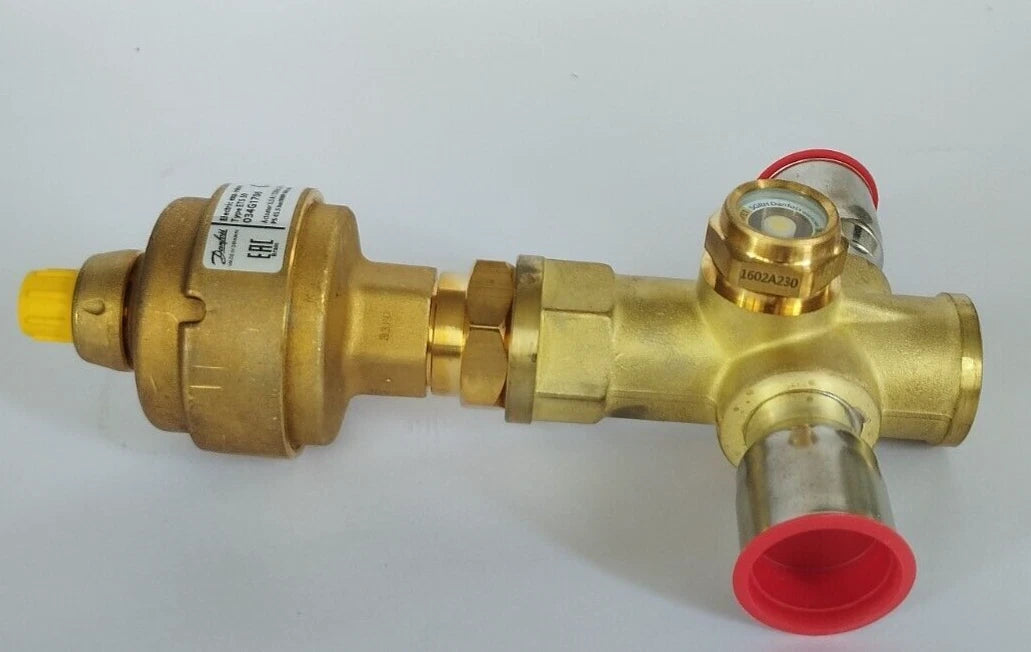

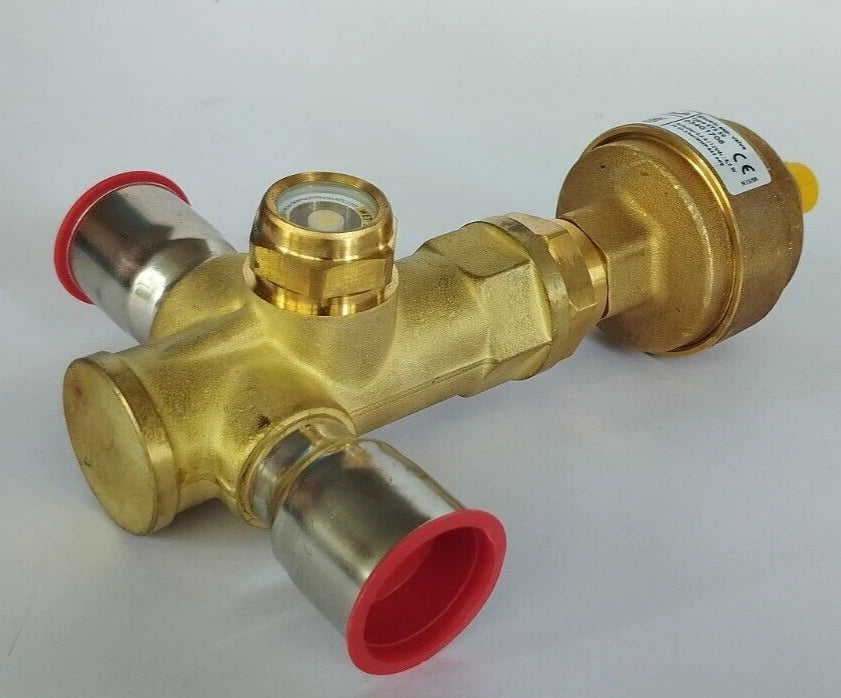

Danfoss 034G1706 ETS 50 Electric Expansion Valve with 1 1/8-Inch Solder Connections and Sight Glass
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 034G1706
Description
Danfoss 034G1706 is an ETS 50 electric expansion valve that meters liquid refrigerant into evaporators in air conditioning and refrigeration systems. Its bipolar stepper motor positions the valve opening to match the controller’s demand, supporting regulated refrigerant injection across changing operating conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Valves |
| Part Number | 034G1706 |
| Subcategory | Electric Expansion Valves |
| Model | ETS 50 |
| Actuation Type | Bipolar stepper motor |
| Valve Arrangement | Straightway, balanced port |
| Flow Direction | Bidirectional |
| Inlet and Outlet Connections | 1 1/8-inch solder connections, outside diameter female |
| Connection Material | Steel/copper bi-metal |
| Electrical Connection | Male M12, four pins |
| Compatible Controllers | Danfoss EKE 1A, EKE 1B, and EKE 1C |
| Maximum Working Pressure | 45.5 bar |
| Maximum Operating Differential Pressure | 33 bar in either direction |
| Refrigerant Temperature Range | −40°C to +65°C |
| Ambient Temperature Range | −40°C to +60°C |
| Motor Travel | 2,625 full steps |
| Sight Glass and Enclosure | Sight glass included; IP67 |
| Weight | 3.25 lbs |
Information About 034G1706
The 034G1706 is part of the Danfoss ETS expansion valve family. Its balanced piston mechanism supports refrigerant flow and tight shutoff in both directions. This configuration incorporates a sight glass, steel/copper connections, and a male four-pin M12 electrical interface. Operation requires a compatible stepper controller or driver, with Danfoss listing EKE 1A, EKE 1B, and EKE 1C controllers.
Key Features:
- Motorized Metering: Uses a bipolar stepper motor to adjust refrigerant flow.
- Balanced Port: Supports controlled positioning under differential pressure.
- Bidirectional Operation: Permits flow and shutoff in either direction.
- Solder Connections: Provides matching 1 1/8-inch inlet and outlet connections.
- Integrated Sight Glass: Allows visual inspection of refrigerant conditions.
- Electrical Interface: Uses a male four-pin M12 connector.
- Positioning Resolution: Provides 2,625 full steps across the operating travel.
- Environmental Protection: Incorporates an IP67 enclosure rating.
The 034G1706 delivers the reliability and precision required for electronically controlled refrigerant injection in compatible cooling systems.
