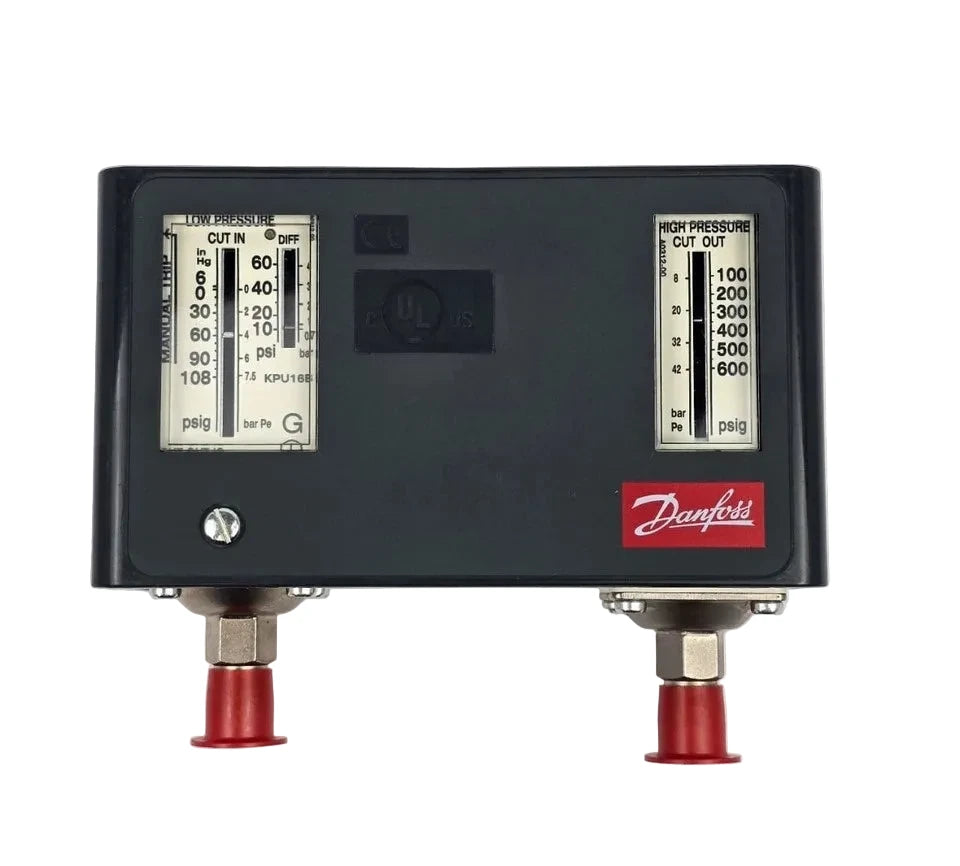

Danfoss 060-5253 KPU 16B Dual Pressure Switch
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060-5253
Description
The Danfoss 060-5253 KPU 16B is a dual pressure switch designed for pressure monitoring and compressor protection in refrigeration and air-conditioning systems. It combines adjustable low- and high-pressure controls with convertible reset functions and separate electrical contact configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC and Refrigeration |
| Part Number | 060-5253 |
| Subcategory | Pressure Switches |
| Product Type | Dual Pressure Switch |
| Model | KPU 16B |
| Low-Pressure Setting Range | 6 inHg vacuum to 108 psig |
| High-Pressure Setting Range | 100–600 psig |
| Low-Pressure Differential | 10–60 psi |
| High-Pressure Differential | 60 psi |
| Contact Function | SPDT + SPST (normally open) |
| Reset Function | Convertible minimum reset / maximum reset |
| Maximum Working Pressure | 250 psig low side / 675 psig high side |
| Pressure Connection | 1/4-inch male flare |
| Pressure Sensing Element | Bellows |
| Enclosure Rating | IP30; NEMA 1 |
| Ambient Temperature Range | −40°F to 122°F |
| Contact Rating | 24 A at 120/240 V AC FLA; 144 A LRA at 120 V AC |
| Weight | 1.90 lb |
Information About 060-5253
The 060-5253 is a Danfoss KPU 16B dual pressure control used to help protect refrigeration systems against excessively low suction pressure and high discharge pressure. Its low-pressure range is approximately 6 inHg vacuum to 108 psig, while its high-pressure range is 100–600 psig. The switch provides an SPDT contact on the low-pressure side and an SPST normally open contact on the high-pressure side. Both reset functions are convertible, allowing the control to be configured for minimum or maximum reset operation as required.
-
Dual Pressure Control: Monitors both low- and high-pressure conditions.
-
Low-Pressure Range: Adjustable from 6 inHg vacuum to 108 psig.
-
High-Pressure Range: Adjustable from 100 to 600 psig.
-
Contact Configuration: SPDT low-pressure contact and SPST normally open high-pressure contact.
-
Convertible Reset: Supports configurable reset functions for both pressure sides.
-
Refrigeration Applications: Designed for compatible refrigeration and air-conditioning systems.
-
Flare Connection: Uses a 1/4-inch male flare pressure connection.
-
Environmental Protection: IP30 enclosure rating for suitable indoor installations.
The 060-5253 delivers the reliability and precision required for pressure control and protective switching in compatible refrigeration and air-conditioning equipment.
