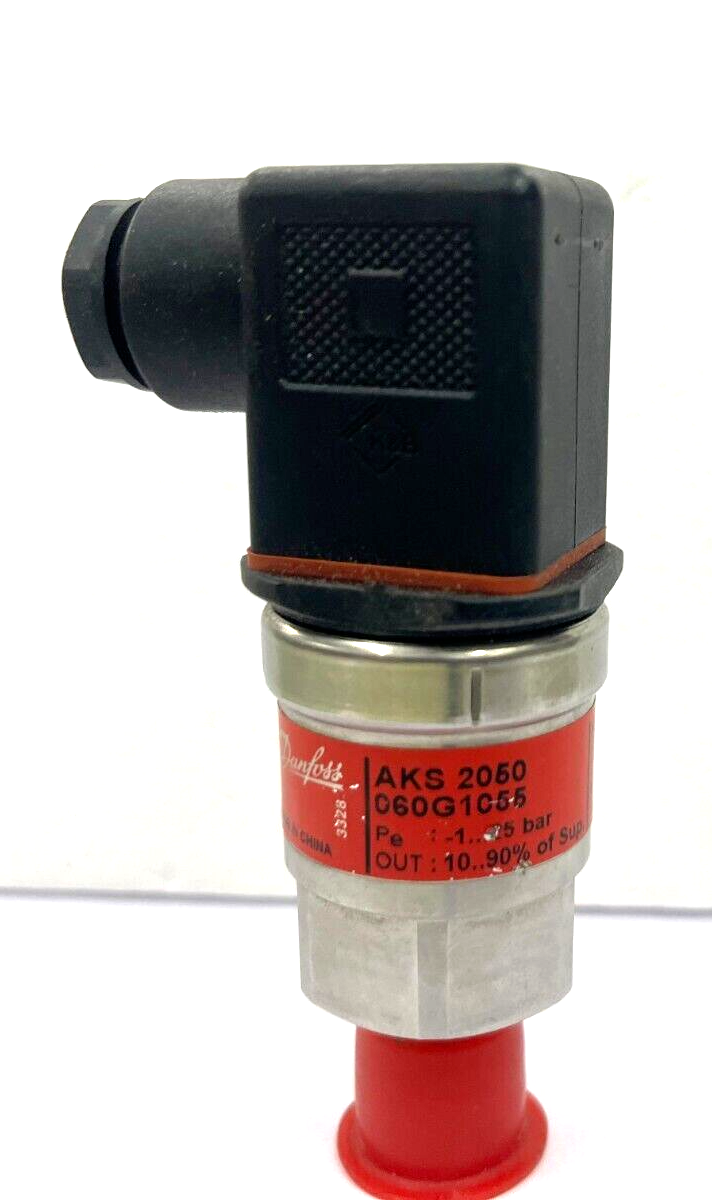

Danfoss 060G1055 AKS 2050 Pressure Transmitter, -1 to 25 bar, Ratiometric Output
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060G1055
Description
The Danfoss 060G1055 is an AKS 2050 pressure transmitter for refrigeration and air conditioning systems, measuring from -1 to 25 bar. Its ratiometric output provides pressure feedback to compatible electronic controllers, while an integrated pulse-snubber reduces the effects of pressure pulsations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | HVAC & Building Automation |
| Part Number | 060G1055 |
| Subcategory | Pressure Transmitters |
| Series | AKS 2050 |
| Pressure Range | -1 to 25 bar / -14.5 to 362.5 psi |
| Pressure Reference | Sealed gauge |
| Supply Voltage | 4.5–5.5 VDC |
| Output Signal | Ratiometric, 10–90% of supply voltage |
| Pressure Connection | M16 × 1.5 male; ISO 261 |
| Electrical Connection | Angular connector; EN 175301-803-A; Pg 9 |
| Pin Assignment | Pin 1: supply positive; Pin 2: common; Pin 3: output |
| Enclosure Rating | IP65 |
| Ambient and Medium Temperature | -40 to 185°F (-40 to 85°C) |
| Compensated Temperature Range | 32 to 176°F (0 to 80°C) |
| Maximum Overload Pressure | 40 bar |
| Maximum Response Time | 4 ms |
| Pulse-Snubber | Integrated |
| Weight | Approximately 0.35 lb |
Information About 060G1055
The 060G1055 is part of the Danfoss AKS 2050 series for refrigeration, air conditioning, and industrial process monitoring. Its construction incorporates a pulse-snubber within the pressure connection for applications exposed to pressure surges. The transmitter connects mechanically through an M16 × 1.5 male thread and electrically through an angular connector. Controller compatibility requires a matching pressure range, supply voltage, and ratiometric input.
Key Features:
- Pressure Measurement: Covers -1 to 25 bar for vacuum-to-positive-pressure monitoring.
- Ratiometric Output: Produces a signal corresponding to 10–90% of the supply voltage.
- Sealed Gauge Reference: Uses a sealed pressure reference for measurement.
- Integrated Pulse-Snubber: Helps damp pressure pulsations at the sensing connection.
- Fast Response: Provides a maximum response time of 4 ms.
- Threaded Connection: Uses an M16 × 1.5 male process fitting.
- Angular Connector: Features an EN 175301-803-A connection with Pg 9 cable entry.
- Environmental Protection: Provides an IP65 enclosure rating when correctly assembled.
The 060G1055 delivers the reliability and precision required for pressure feedback in compatible refrigeration control systems.
