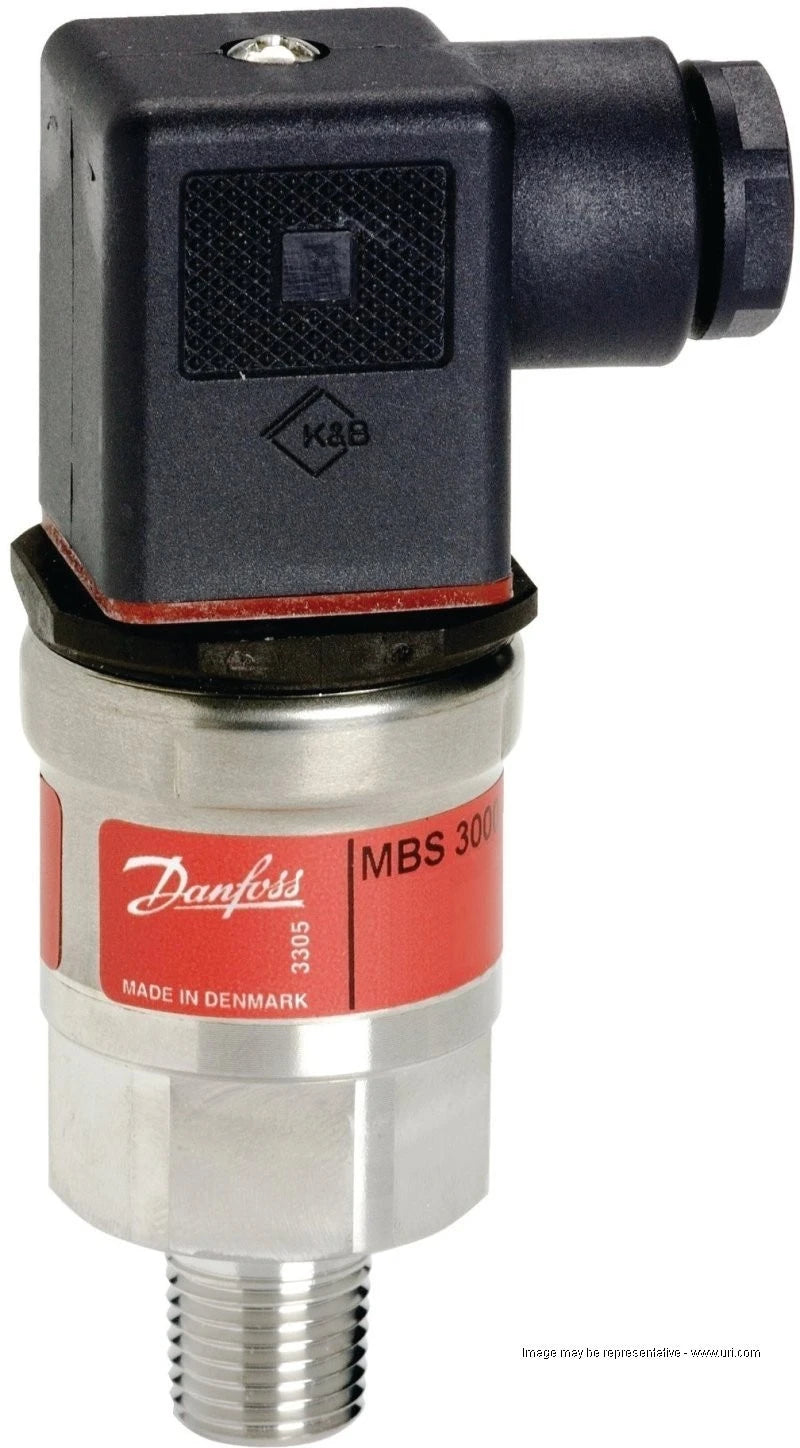

Danfoss 060G1142 MBS 3000 Pressure Transmitter 0-150 PSI 4-20mA 1/4 NPT Stainless Steel
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060G1142
Description
The Danfoss 060G1142 is an MBS 3000 Series pressure transmitter designed for continuous pressure measurement in industrial hydraulic, pneumatic, and HVAC systems. Featuring a 0–150 psig measurement range, a 4–20 mA analog output, and a 1/4-18 NPT process connection, it provides pressure feedback to PLCs, monitoring equipment, and automated control systems. Its stainless steel construction, temperature-compensated sensing element, and resistance to industrial vibration support stable operation in demanding environments.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Sensors & Transmitters |
|
Part Number |
060G1142 |
|
Subcategory |
Pressure Transmitters |
|
Series |
MBS 3000 |
|
Product Type |
Industrial Pressure Transmitter |
|
Pressure Measurement Range |
0–150 psig (0–10.3 bar) |
|
Pressure Reference |
Gauge |
|
Output Signal |
4–20 mA DC |
|
Signal Configuration |
Two-Wire Current Loop |
|
Typical Accuracy |
±0.5% Full Scale |
|
Maximum Accuracy |
±1% Full Scale |
|
Pressure Connection |
1/4-18 NPT |
|
Housing Material |
Stainless Steel |
|
Wetted Parts Material |
Stainless Steel |
|
Ambient Temperature Range |
-40°C to +85°C (-40°F to +185°F) |
|
Enclosure Protection |
IP65 with Compatible Electrical Connector |
|
Electrical Connection |
DIN 43650-A Style Connector |
|
Electrical Wiring |
Pin 1: Positive Supply; Pin 2: Common |
|
Adjustable Zero and Span |
No |
|
Temperature Compensation |
Yes |
|
Electromagnetic Compatibility |
Industrial EMC Protection |
|
Approvals |
ATEX, cULus UL Recognized, CE |
|
ATEX Classification |
Ex ec IIA T4 Gc |
|
CE Marking |
Yes |
|
Primary Applications |
Hydraulic Systems, Pumps, Compressors, HVAC Equipment, Industrial Process Monitoring |
|
Weight |
0.35 lb |
Information About 060G1142
The 060G1142 is part of the Danfoss MBS 3000 Series of compact pressure transmitters developed for general industrial pressure measurement applications. Its cylindrical stainless steel housing incorporates a gauge-pressure sensing element and an electrical interface designed for connection to compatible monitoring and control equipment. The transmitter converts measured process pressure into a proportional two-wire current signal, allowing integration with industrial controllers, instrumentation systems, and data acquisition devices. With typical accuracy of ±0.5% full scale, an ambient operating temperature range of -40°C to +85°C, and industrial safety approvals, the unit supports pressure monitoring in pumps, compressors, hydraulic circuits, and automated machinery.
Key Features:
-
Pressure Measurement Range: Measures gauge pressure from 0 to 150 psig (approximately 0–10.3 bar).
-
Analog Current Output: Provides a standard 4–20 mA signal for continuous pressure measurement and monitoring.
-
High Measurement Accuracy: Offers typical accuracy of ±0.5% full scale and maximum accuracy of ±1% full scale.
-
Stainless Steel Construction: Features corrosion-resistant stainless steel components for compatible industrial process media.
-
Standard Process Connection: Uses a 1/4-18 NPT threaded fitting for installation into compatible pressure ports.
-
Two-Wire Operation: Combines power supply and analog signal transmission through a two-wire current loop.
-
Wide Ambient Temperature Range: Supports operation from -40°C to +85°C (-40°F to +185°F).
-
Industrial Vibration Resistance: Designed for use in machinery and equipment exposed to mechanical vibration.
-
Temperature-Compensated Measurement: Helps maintain measurement stability under changing ambient and process temperatures.
-
Electrical Interface: Provides designated positive supply and common terminals for connection to industrial instrumentation.
-
Industrial Approvals: Includes CE, UL Recognized, and ATEX Ex ec IIA T4 Gc approvals.
-
Automation Compatibility: Supports PLCs, industrial controllers, pressure monitoring systems, and compatible analog input modules.
The 060G1142 delivers the reliability and precision required for industrial pressure monitoring, automated process regulation, hydraulic equipment supervision, and HVAC system control.
