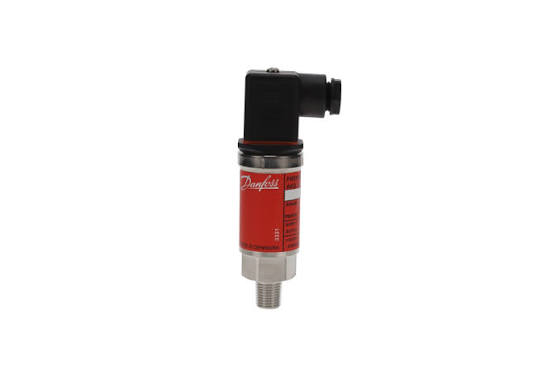

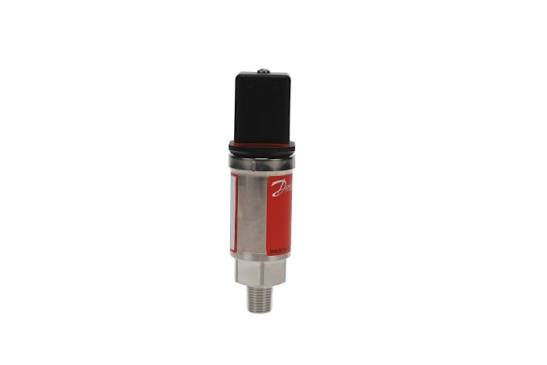

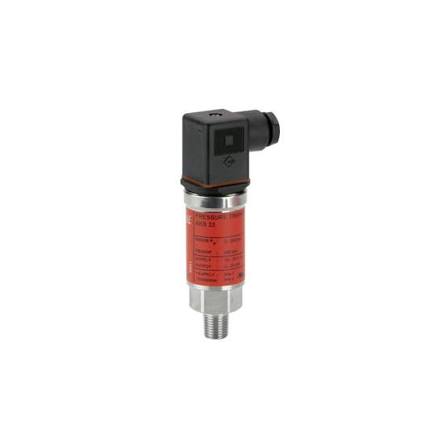

Danfoss 060G1711 AKS 33 Absolute Pressure Transmitter for Refrigeration Systems
- Regular price
- $625.00
- Sale price
- $625.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060G1711
Description
The Danfoss 060G1711 pressure transmitter measures absolute pressure from 0 to 200 psia and converts it into a 4–20 mA signal. It provides pressure feedback for refrigeration, air-conditioning, and process control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Sensors & Switches |
| Part Number | 060G1711 |
| Subcategory | Pressure Sensor/Transducer |
| Series | AKS 33 |
| Pressure Range | 0–200 psia; 0–13.8 bar absolute |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 VDC |
| Pressure Connection | 1/4-18 male NPT |
| Electrical Connection | EN 175301-803-A angular DIN connector; Pg 9 cable entry |
| Housing and Wetted Material | AISI 316L stainless steel |
| Accuracy | ±0.3% FS typical; ±0.8% FS maximum |
| Response Time | 4 ms maximum |
| Ambient Temperature Range | -40 to 85°C (-40 to 185°F) |
| Medium Temperature Range | -40 to 85°C (-40 to 185°F) |
| Compensated Temperature Range | -30 to 40°C (-22 to 104°F) |
| Enclosure Rating | IP65 |
| Weight | 0.151 kg (0.33 lb) |
Information About 060G1711
The 060G1711 is an AKS 33 series transmitter with a stainless steel housing and stainless steel wetted components. Its refrigerant compatibility includes ammonia, supporting use in commercial and industrial refrigeration installations. A male NPT process connection and removable DIN plug provide connections to the pressure line and control wiring. Built-in voltage stabilization and polarity protection support operation with varying DC supply conditions.
Key Features:
- Absolute Pressure Measurement: Measures pressure relative to a vacuum reference.
- Current Output: Supplies a standard 4–20 mA signal to compatible controllers.
- Stainless Steel Construction: Uses AISI 316L for the housing and wetted components.
- Refrigerant Compatibility: Suitable for refrigerants including ammonia.
- Threaded Connection: Provides a 1/4-18 male NPT pressure fitting.
- DIN Electrical Interface: Uses a removable angular connector with Pg 9 cable entry.
- Environmental Protection: IP65 enclosure protects against dust and water jets.
- Supply Protection: Incorporates voltage stabilization and polarity-protected inputs.
The 060G1711 delivers the reliability and precision required for refrigeration pressure monitoring and control.
