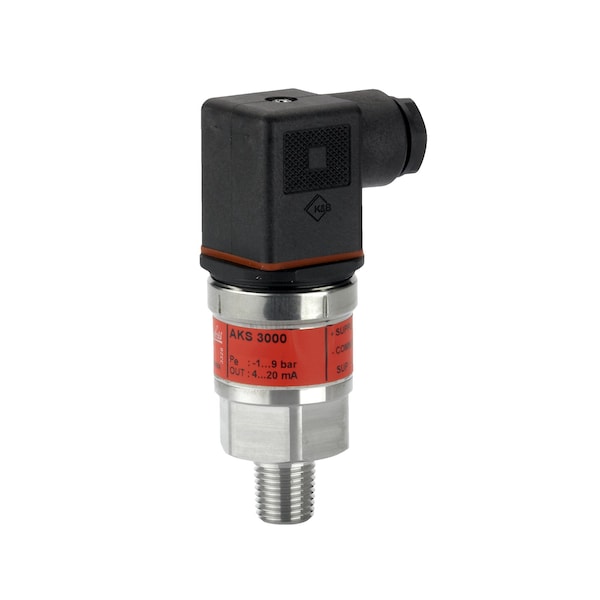

Danfoss 060G3807 AKS 3000 Pressure Transmitter for Refrigeration Systems
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060G3807
Description
The Danfoss 060G3807 pressure transmitter measures absolute pressure from 0 to 200 psia and provides a proportional 4–20 mA output. Designed for refrigeration and air-conditioning equipment, it supplies pressure feedback for monitoring and automatic control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Sensors & Switches |
| Part Number | 060G3807 |
| Subcategory | Pressure Transmitter |
| Series | AKS 3000 |
| Pressure Range | 0–200 psia; 0–13.8 bar absolute |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 VDC |
| Pressure Connection | 1/4-18 male NPT |
| Electrical Connection | EN 175301-803-A angular connector; Pg 9 cable entry |
| Housing and Wetted Material | AISI 316L stainless steel |
| Accuracy | ±1.0% FS typical; ±2.0% FS maximum |
| Non-Linearity | ±0.5% FS, BFSL |
| Response Time | 4 ms maximum |
| Ambient and Medium Temperature | -40 to 85°C (-40 to 185°F) |
| Compensated Temperature Range | -30 to 40°C (-22 to 104°F) |
| Enclosure Rating | IP65 |
| Maximum Overload Pressure | 725 psi |
| Weight | 0.157 kg (0.35 lb) |
Information About 060G3807
The 060G3807 is an AKS 3000 series transmitter using piezoresistive sensing technology. Its housing and refrigerant-contact components are AISI 316L stainless steel, with laser-welded seals instead of soft gaskets. Temperature compensation supports suction-line measurement across changing operating conditions. The standard current signal connects to compatible refrigeration controllers for applications such as compressor capacity regulation and evaporator pressure detection.
Key Features:
- Absolute Pressure Reference: Measures independently of changes in atmospheric pressure.
- Current Output: Delivers a 4–20 mA signal for compatible control inputs.
- Stainless Steel Construction: Uses AISI 316L housing and wetted components.
- Laser-Welded Sealing: Eliminates soft gaskets from environmental seals.
- Threaded Process Connection: Provides a 1/4-18 male NPT fitting.
- Removable Electrical Connector: Uses an angular DIN-style plug with Pg 9 cable entry.
- Environmental Protection: IP65 enclosure protects against dust and water jets.
- Fast Response: Maximum response time is 4 ms.
The 060G3807 delivers the reliability and precision required for pressure feedback in refrigeration and air-conditioning control systems.
