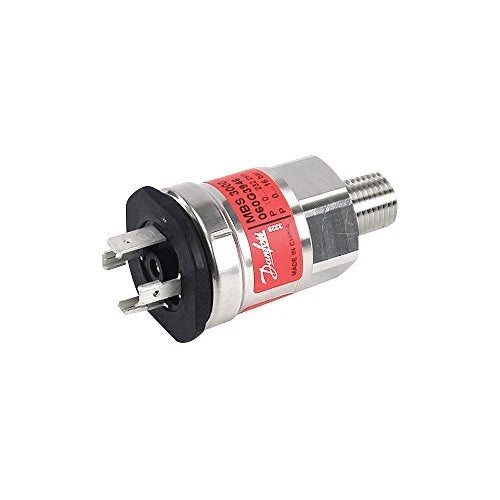

Danfoss 060G3946 MBS 3000 0–16 Bar Pressure Transmitter
- Regular price
- $1,145.00
- Sale price
- $1,145.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060G3946
Description
The Danfoss 060G3946 is an MBS 3000 pressure transmitter that measures pressure from 0 to 16 bar and provides a 4–20 mA output signal. Its 1/4-18 NPT process connection and DIN 2 electrical connector suit compatible industrial, heating, and hydraulic monitoring systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Danfoss |
| Category | Pressure Measurement |
| Part Number | 060G3946 |
| Subcategory | Pressure Transmitters |
| Series | MBS 3000 |
| Pressure Range | 0–16 bar (0–232 psi) |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 VDC |
| Process Connection | 1/4-18 NPT |
| Electrical Connection | DIN 2 |
| Maximum Response Time | 4 ms |
| Weight | 0.14 kg |
Information About 060G3946
The 060G3946 belongs to Danfoss’s MBS 3000 pressure transmitter series. It converts measured pressure into a proportional 4–20 mA signal for compatible control and monitoring equipment. This version has a 1/4-18 NPT process connection and DIN 2 electrical connection. Confirm pressure range, connection type, and supply requirements against the installation before selecting it as a replacement.
Key Features:
- Pressure Measurement: Measures gauge pressure over a 0–16 bar range for use in compatible monitoring circuits.
- 4–20 mA Output: Supplies a standard current signal for compatible controllers, displays, and automation systems.
- MBS 3000 Series: Part of Danfoss’s pressure transmitter range for industrial and fluid system applications.
- 1/4-18 NPT Connection: Uses a male NPT process connection; verify the port thread and sealing method before installation.
- DIN 2 Electrical Connector: Connects to the system through a DIN 2 plug interface.
- Wide Supply Range: Supplier specifications list a 9–32 VDC supply range.
- Fast Response: Product listings specify a maximum response time of 4 ms.
- Compact Sensor Assembly: Weighs approximately 0.14 kg according to supplier data.
The 060G3946 delivers the reliability and precision required for pressure monitoring in compatible industrial and hydraulic systems.
