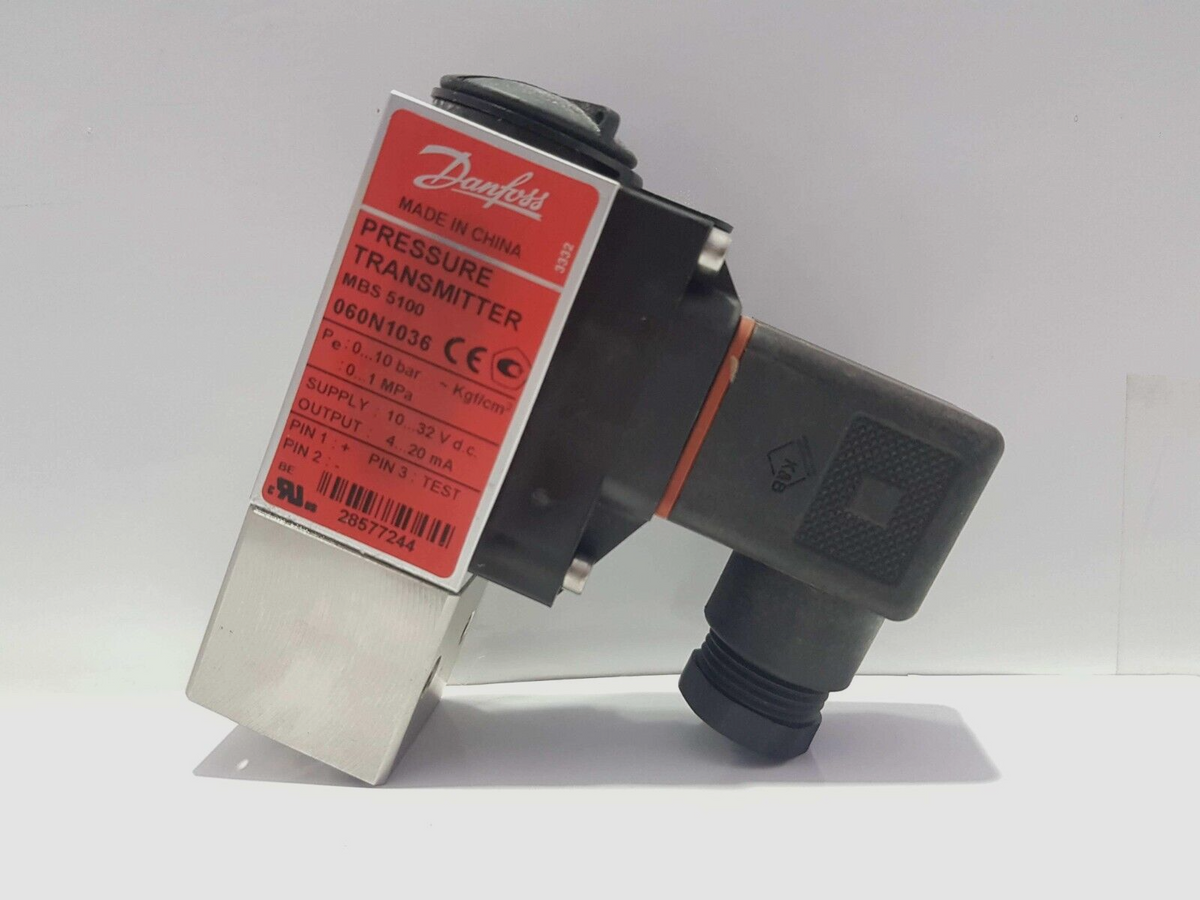

Danfoss 060N1036 MBS 5100 Marine Pressure Transmitter 0-145 PSI 4-20mA G1/4 Flange
- Regular price
- $492.00
- Sale price
- $492.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060N1036
Description
The Danfoss 060N1036 is an MBS 5100 Series pressure transmitter designed for continuous pressure monitoring in marine, hydraulic, and industrial control systems. Featuring a 0–10 bar (0–145 psig) measurement range, 4–20 mA output, and G1/4 pressure connection with flange mounting, it provides pressure feedback to compatible monitoring and automation equipment.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Danfoss |
|
Category |
Sensors & Transmitters |
|
Part Number |
060N1036 |
|
Subcategory |
Pressure Transmitters |
|
Series |
MBS 5100 |
|
Product Type |
Industrial and Marine Pressure Transmitter |
|
Specification Key |
MBS 5100-2011-A6DB04-4 |
|
Pressure Measurement Range |
0–10 bar (0–145 psig) |
|
Pressure Reference |
Gauge (Relative) |
|
Output Signal |
4–20 mA DC |
|
Supply Voltage |
9–32 VDC |
|
Typical Accuracy |
±0.1% Full Scale |
|
Maximum Accuracy |
±0.3% Full Scale |
|
Maximum Overload Pressure |
20 bar (290 psi) |
|
Maximum Response Time |
4 ms |
|
Pressure Connection |
G1/4 Female with Flange |
|
Pressure Connection Standard |
ISO 228-1 |
|
Electrical Connection |
EN 175301-803-A, Pg 11 |
|
Enclosure Protection |
IP65 |
|
Ambient Temperature Range |
-40°C to +85°C (-40°F to +185°F) |
|
Media Temperature Range |
-40°C to +85°C (-40°F to +185°F) |
|
Compensated Temperature Range |
0°C to +80°C (32°F to 176°F) |
|
Electrical Wiring |
Pin 1: Positive Supply; Pin 2: Common; Pin 3: Test Signal |
|
Approvals |
CE, cULus UL Recognized |
|
Weight |
0.73 lb |
Information About 060N1036
The 060N1036 is part of the Danfoss MBS 5100 Series of industrial pressure transmitters developed for demanding marine and machinery applications. Its compact cylindrical construction incorporates a pressure-sensing element and a G1/4 connection with a flange interface for integration into compatible instrumentation assemblies. The transmitter converts measured gauge pressure into a proportional 4–20 mA current signal for use with PLCs, monitoring systems, and industrial controllers. Designed to withstand vibration, pressure fluctuations, and ambient temperatures from -40°C to +85°C, it supports pressure monitoring in hydraulic equipment, pumps, compressors, and shipboard machinery.
Key Features:
-
Pressure Measurement Range: Measures gauge pressure from 0 to 10 bar (0–145 psig).
-
Analog Current Output: Provides a standardized 4–20 mA signal for industrial monitoring and control.
-
Marine Application Design: Developed for pressure measurement in demanding marine and industrial environments.
-
G1/4 Pressure Connection: Features a threaded pressure interface for compatible instrumentation installations.
-
Flange Mounting Interface: Supports integration with compatible flanged pressure connection assemblies.
-
Wide Ambient Temperature Range: Operates from -40°C to +85°C (-40°F to +185°F).
-
Industrial Vibration Resistance: Designed for machinery exposed to mechanical shock and vibration.
-
Pressure Fluctuation Resistance: Supports monitoring in systems with changing hydraulic and process pressures.
-
Compact Transmitter Construction: Provides electronic pressure measurement in a space-efficient cylindrical housing.
-
IP67 Environmental Protection: Offers dust-tight protection and resistance to temporary water immersion when correctly assembled.
-
Automation System Compatibility: Interfaces with controllers and monitoring devices equipped with 4–20 mA analog inputs.
-
Marine Instrumentation Integration: Intended for use in compatible shipboard pressure monitoring and control systems.
The 060N1036 delivers the reliability and precision required for marine pressure instrumentation, hydraulic equipment monitoring, and industrial process control.
